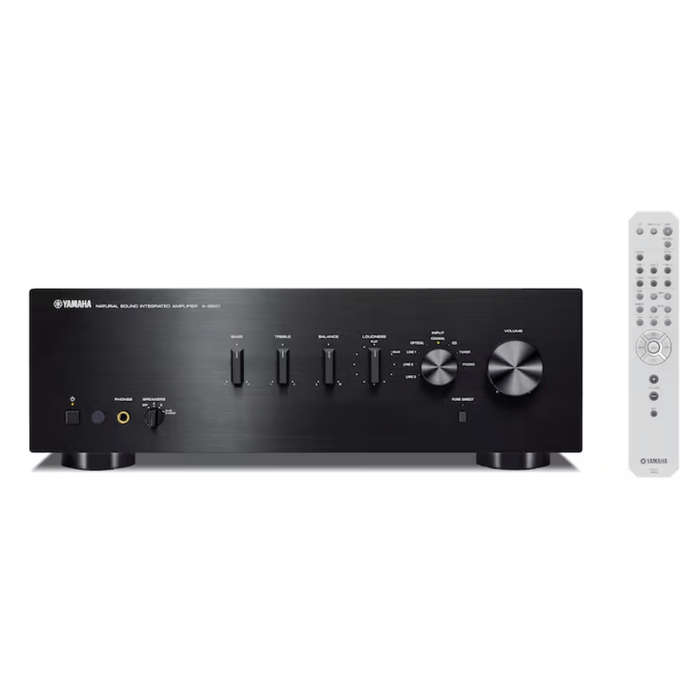

The Yamaha A-S501 Integrated Amplifier is an advanced audio component designed to deliver optimal sound quality and performance. Built with Yamaha's renowned craftsmanship, it features a sleek and robust design suitable for any modern home audio setup. It incorporates high-quality components to ensure purity of sound, including a Pure Direct Mode which bypasses unused circuits to deliver the cleanest possible audio signal. With a generous output of 85 watts per channel, this amplifier is capable of driving demanding speakers with ease. The A-S501 features an advanced DAC (digital-to-analog converter) that provides pristine audio conversion. Its connectivity options include optical and coaxial inputs for versatile compatibility with various audio sources. The amplifier also comes with a continuously variable loudness control that lets you balance the low, mid, and high frequencies at any volume level, ensuring a full audio range experience. Moreover, the visible tone control connections allow for manual adjustments to the bass and treble to tailor sound to your preference. The A-S501 is meticulously designed to satisfy audiophiles who demand precision, power, and clarity from their audio components. With its impeccable construction, myriad of features, and outstanding sound quality, the Yamaha A-S501 is an exceptional addition to any audiophile's collection.
General | |
AirPlay Support | No |
Aluminum Front Panel | Yes |
Analog Audio Inputs | CD, Tuner, Line 1, Line 2, Line 3 and Line 4 |
Auto Power Standby | Yes |
Balance Control | Yes |
Bass Control | ±10 dB at 20 Hz |
Bi-Wiring Speaker Terminals | No |
Bluetooth Ready | Adapter Required |
Built-In DAC | Yes |
Color Options | Black, Silver |
Compatible with MusicCast | No |
Continuously Variable Loudness Control | Yes |
Custom-made Power Transformer | Yes |
Digital Audio Inputs | Optical (2), Coaxial (1) |
Dimensions (W x H x D) | 435 x 151 x 387 mm (17-1/8" x 6" x 15-1/4") |
Direct Signal Path | Yes |
Dynamic Power | 120W (8 ohms), 140W (6 ohms), 150W (4 ohms), 180W (2 ohms) |
Eco Mode | No |
Extruded Aluminum Heat Sink | Yes |
Gold-plated Terminals | No |
Headphone Output | Yes (6.3 mm stereo) |
High-Quality Parts | Yes |
Input Sensitivity/Impedance | CD: 200 mV/47 kohms |
Loudness Control | Continuously Variable |
Model | Yamaha A-S501 |
Other Inputs | None |
Output Power | 85W + 85W (8 ohms, 20 Hz - 20 kHz, 0.019% THD) |
Phono Equalizer | RIAA Equalization (±0.5 dB) |
Phono MC Input Sensitivity/Impedance | Not Supported |
Phono MM Input Sensitivity/Impedance | 3.5 mV/47 kohms |
Phono Stage | Yes |
Power Consumption | 240 W |
Power Supply | AC 120 V, 60 Hz |
Pre Out | Yes |
Pure Direct Switch | Yes |
Remote Control Included | Yes |
Rotary Encoder Input Selector | Yes |
Signal to Noise Ratio | 99 dB (CD) |
Speaker Selector | Yes |
Speakers Out | Speakers A, Speakers B |
Subwoofer Output | Yes |
THD | 0.019% (20 Hz - 20 kHz, half power) |
ToP-ART Technology | Yes |
Treble Control | ±10 dB at 20 kHz |
Type | Integrated Amplifier |
Warranty Period | 2 Years |
Weight | 10.3 kg (22.7 lbs) |
Yamaha Parametric Acoustic Optimizer (YPAO) | No |
Specifications | |
Frequency Response | 10 Hz - 100 kHz (+0 dB/-3 dB) |
