Key Features:
New Lithium Iron Phosphate cells
High Cycle Life: >3000 at 80%DOD (Depth of Discharge)
Suitable SLA Replacement Gate Motor, Energizer, Alarm System, UPS, etc
Built-in BMS (Battery Management System) for Battery Protection
Light Weight 30% of SLA battery
Specifications:
Nominal Voltage = 12V (12.8V)
Capacity = 7Ah
Self-Discharge = Max Discharge Current = 10A
Recommended Discharge Current = Max Charge Current = 5A
Recommended Charge Current = BMS Cut-off Low Voltage = 9.2V
BMS Charge Cut-off High Voltage = 14.6V
Dimensions =?LWH?1516595mm
Weight = 800g
Terminal Type = F2 (6.35mm)
Enclosure Protection = IP65
Discharge Temperature = -20ºC to 60ºC
Charge Temperature = 0ºC to 45ºC
A maximum number of batteries connected:
In Series: 4
In Parallel: 8
Note:
To increase voltage, the series connection method is used.
For example: 12V + 12V = 24V. When connected in series the capacity remains the same.
To increase capacity, a parallel connection method is used.
For example: 7Ah + 7Ah = 14Ah. When connected in parallel the voltage remains the same.
Series & Parallel combinations are NOT Recommended.
What's in the box

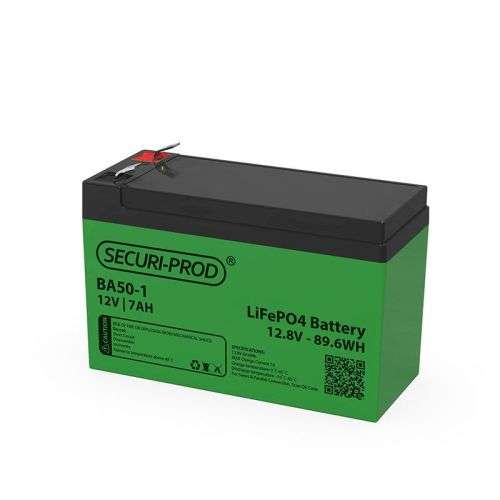

1x Securi-Prod LiFePO Battery - 12.8v / 89.6Wh / 7ah battery
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
