Protect your home/business today - Massive 150 meter range - Smart detection Beams |
|
|
| ABT-150 Alarm Infrared Photoelectric Detector Beams x 2. Massive 150 meter range, integrated design, installation brackets, the highest level of your protection and safety. |
|
| Holographic spot real-time signals with unique displacing receiving, transmitting parts that will detect any intruder. Full functional self-adaption in environment and trouble locking. Patented balanced checking, unique digital filtering. |
|
Advanced Features: |
|
| Built-in optical sight |
| Horizontal / vertical optical angle easy to adjust, easy to calibrate |
| 99% photographic margin |
| High levels of resistance to RFI / EMI capability |
| Automatically increase sensitivity when faced with fog or inclement weather |
| Optional dual aspheric Fresnel or secondary focusing lens to achieve a large-diameter light beam |
| Automatic environment recognition circuit (EDC), avoid reflective interference modular |
| Unique optical design: Optical glass, beam penetrates the special multi-layer anti-environment (such as rain and snow) and other capabilities |
| Anti-glare up to 50,000 LUX, built-in automatic adjustment strong light filtering system, avoid glare or lighting of car |
| Unique digital filter circuit design |
| Anti-lightning circuit design |
| Use of C-type output device |
| Adjustable beam interdiction cycle is more flexible and adaptable |
| The integrated structure designed to be able to work in harsh environment |
|
|
Specifications: |
|
| No.of Beams: 2 beams |
| Install Distance Outdoor: Up to 150m, Indoor: Up to 450m |
| Detection Mode: 2 beams blocked simultaneous |
| Optical Source: Infrared digital pulse beam |
| Response Speed: 50 - 700msec |

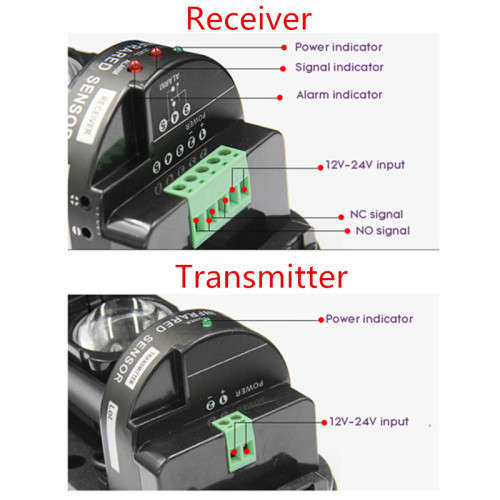

| Relay contact output: NO.NC |
| Contact Rating output: AC/DC30V 0.5AMax |
| Power Supply: DC 13.8 - 24V AC 11 - 18V P 15W |
| Operation temperature: -25 C - 55 C |
| Operation humidity: 5% - 95% RH (relative humidity) |
|
Upgrade your alarm security system today |
