Security Beams (Pair) Indoor 450m Outdoor 150m -Active Infrared Detector AB150 * FREE DELIVERY *

Security Beams (Pair) Indoor 450m Outdoor 150m -Active Infrared Detector AB150

 FREE COURIER DELIVERY TO DOOR - MAIN AREA'S AND IMMEDIATE TOWNS/SUBURBS

Description:

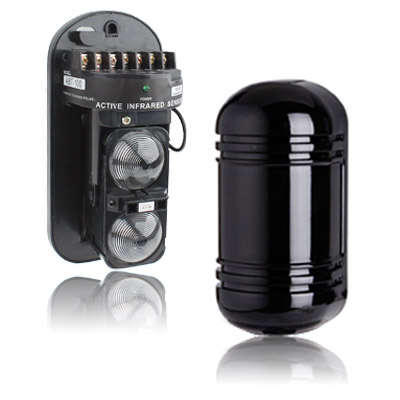

This is ABT-150 Alarm 2 Beams Infrared Photoelectric Detector. Integrated design, installation brackets, the most convenient installation. Holographic spot real-time report. Unique displacing receiving, transmitting parts with big power. Full function checking, self-adaption in environment and trouble locking. Patented balanced checking, unique digital filtering.


Features:

• Anti-glare up to 50,000 LUX, built-in automatic adjustment strong light filtering system, avoid glare or lighting of care
• Unique optical design: Optical glass, beam penetrates the special multi-layer anti-environment (such as rain and snow) and other capabilities
• Automatically increase sensitivity when faced with fog or inclement weather
• Optional dual aspheric Fresnel or secondary focusing lens to achieve a large-diameter light beam
• Automatic environment recognition circuit (EDC), avoid reflective interference modular
• Horizontal / vertical optical angle easy to adjust, easy to calibrate
• High levels of resistance to RFI / EMI capability
• Unique digital filter circuit design
• 99% photographic margin
• Built-in optical sight
• Anti-lightning circuit design
• Use of C-type output device
• Adjustable beam interdiction cycle is more flexible and adaptable
• The integrated structure designed to be able to work in harsh environment

Specifications:

• No. of Beams: 2 beams
• Install Distance(Max.) Outdoor: 150m / Indoor: 450m
• Detection Mode: 2 beams blocked simultaneous
• Optical Source: Infrared digital pulse beam
• Response Speed: 50 ~ 700msec
• Relay contact output: NO.NC
• Contact Rating output: AC/DC30V 0.5AMax
• Power Supply: DC 13.8 ~ 24V AC 11 ~ 18V P ≥15W
• Operation temperature: -25 °C  - 55 °C
• Operation humidity: 5% - 95% RH (relative humidity)
• Product Weight: 29.42 oz
