Securnix Single Channel Active Video Audio Data Transmitter Aluminum Alloy Case 1 Year Warranty

Securnix Single Channel Active Video/Audio/data Transmitter, Aluminum alloy case , , 1 Year Warranty



Product Overview

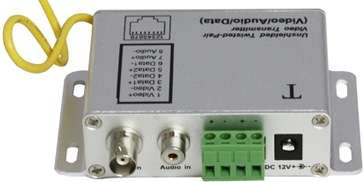

The Securnix VB302T active UTP Video Transmitter converts the unbalanced signal into balanced signal and transmits the signal after pre-raise. Receiver receives balanced signal to convert it into unbalanced signal and restores the received signal with one channel of audio transmission function and two channels of data (or standby interface) with perfect receiving effect, which can be applied in the occasions such as Video Monitoring and video meeting, simplify the wiring project and save wire use quantity.



Features:
 Adopt differential signal transmission with excellent anti-jamming ability
 Save project wire expenses, each a pair of twisted pair wire transmits one channel of video signal and one common Cat-5 unshielded twisted pair wire can simultaneously transmit four channels of video signal
 The farthest transmission distance can reach 2400m if it is used with active receiver
 Outstanding interference rejection, transient protection
 Aluminium Alloy Case

Specifications:
 Video Format  NTSC, PAL, and SECAM
 Frequency Response  DC to 8MHz
 Attenuation  0.5dB typical
 CMRR  60 dB
 Impedance  Coax, Male BNC  75 ohms
 RJ45/Terminal Block  100 ohms
 Working environment  Working Temperature  -10 to +70
 Storage Temperature  -30 to +70
 Humidity   0 to 95%
 Wire Type  UTP5
 Connector  Female BNC, RJ45 and terminal Block
 Power  12VDC (Max:90mA)
 Case  Aluminium alloy case
 Dimension  105mm*70mm*29mm
 Weight   185g/pc

Type of the required wire:
 Unshielded Cat-5 or above twisted pair wire
(Please use standard Cat-5 or above twisted pair wire. The wire quality will directly affect the transmitted image effect and transmission distance.)
 Characteristic impedance:100±20
 DC Loop Resistance: 18/100m
 Differential capacitance: 62pf/m (maximum)
