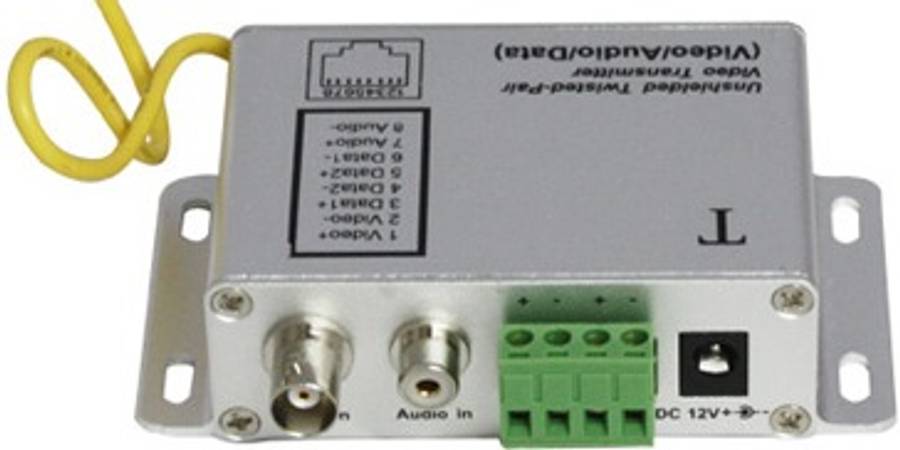

Securnix Single Channel Active Video/Audio/data Transmitter, Aluminum alloy case , , 1 Year Warranty
Product Overview
The Securnix VB302T active UTP Video Transmitter converts the unbalanced signal into balanced signal and transmits the signal after pre-raise. Receiver receives balanced signal to convert it into unbalanced signal and restores the received signal with one channel of audio transmission function and two channels of data (or standby interface) with perfect receiving effect, which can be applied in the occasions such as Video Monitoring and video meeting, simplify the wiring project and save wire use quantity.
Features:
Adopt differential signal transmission with excellent anti-jamming ability
Save project wire expenses, each a pair of twisted pair wire transmits one channel of video signal and one common Cat-5 unshielded twisted pair wire can simultaneously transmit four channels of video signal
The farthest transmission distance can reach 2400m if it is used with active receiver
Outstanding interference rejection, transient protection
Aluminium Alloy Case
Specifications:
Video Format NTSC, PAL, and SECAM
Frequency Response DC to 8MHz
Attenuation 0.5dB typical
CMRR 60 dB
Impedance Coax, Male BNC 75 ohms
RJ45/Terminal Block 100 ohms
Working environment Working Temperature -10 to +70
Storage Temperature -30 to +70
Humidity 0 to 95%
Wire Type UTP5
Connector Female BNC, RJ45 and terminal Block
Power 12VDC (Max:90mA)
Case Aluminium alloy case
Dimension 105mm*70mm*29mm
Weight 185g/pc
Type of the required wire:
Unshielded Cat-5 or above twisted pair wire
(Please use standard Cat-5 or above twisted pair wire. The wire quality will directly affect the transmitted image effect and transmission distance.)
Characteristic impedance:100±20
DC Loop Resistance: 18/100m
Differential capacitance: 62pf/m (maximum)
