Securnix Video Ground Loop Isolator BNC male to terminal block with 15cm mini coax cable.

Twisted Pair Video Ground Loop Isolator GP100

Product Overview
The Securnix Twisted Pair Video Ground Loop Isolator GP100 are passive devices which reduce Ground Loop Interference with CCTV  signals and can easily install in a new or added to existing systems. It is useful where a video signal is transmitted via  cable between points with different ground potentials.  Differences in ground potentials are typically caused by  unbalanced power line loads.

Features:
 BNC male to terminal block with 15cm mini coax cable
 Passive type, no power need
 Hi Performance to eliminate ground loop problem
 Low video loss, Bandwidth: 20hz -11Mhz ,+0/-3Db
 Prevents video-signal distortion caused by video ground loops
 Eliminates picture tearing, cross talk and rolling
 Prevents power cables laid by others interfering with the CCTV system

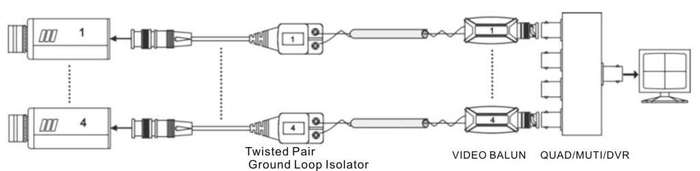

Installation View

The Video Ground Loop Isolator should be installed where runs of video cable are known to have ground loops. It must be installed in the video cable that has come directly from the camera, but before the cable has been connected to anything else.



If several video cameras come from the same area, fix a Video Ground Loop Isolator In every cable, or a ground loop will still remain
