SecurONE Outdoors Edition - Complete Surveillance Kit (H264 DVR + 4 Weatherproof IP Cameras + 500GB HDD) - I102

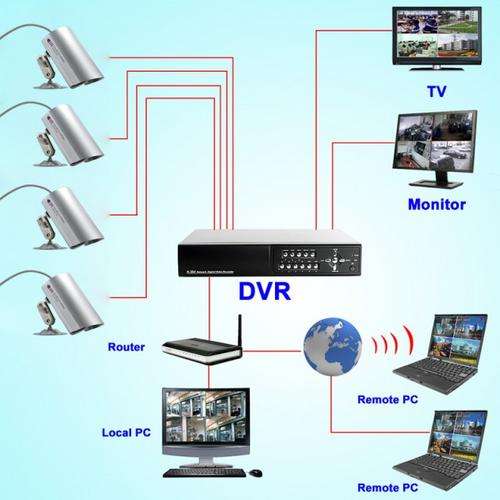

The SecurONE kit is a complete system for local as well as remote surveillance right out of the box. It features advanced H.264 digital video recording, a premium 500GB Seagate brand hard disk drive, and four top of the line weatherproof Sony CCD security cameras for outdoors use at any time. The new SecurONE kit also features a brand new pre-recording function, allowing you to capture the action before it happens, not after.

The All-Seeing Eye
Have some undesirables moved into your neighborhood? Do you suspect one or more of your employees of dishonesty? Has your house ever been broken into? Has the feeling of insecurity left you devastated? Well no more. With its highly advanced motion detection alarm features and security settings, nothing (man or beast), can escape the SecurONE's All-Seeing Eye. But best of all, the SecurONE includes a never-before-seen feature found on security cameras: Pre-recording. That means once the alarm is tripped, you can see up to 10 seconds into the past and find out what everything was like before the action happened. More than just convenient - essential.

Location, Location, Location
Set it up in the den so you can monitor the most important bedrooms in the house. Yours and your kids. Or locate the complete system at work. One where the most important documents or inventory is kept, and one by the front, side, and rear entrance. Or have all four cameras set up at different corners of your warehouse. If you own a convenience store, point one of the cameras at the cash register, one away from the cash register facing customers, have one near the back where the alcoholic drinks are kept, and finally have one in the store room. Even in the dark, these cameras see everything because each SONY camera is armed with 36 infrared sensors. Like navy seals with night vision goggles protecting you from harm. Yes, the possibilities are endless, as is the peace of mind from knowing you've got eyes everywhere and the digital evidence to present to the authorities should trouble arise.

Manufacturer Specifications

DVR SPECIFICATIONS
Operating system: Embedded Linux
Main function: Live display, Recording, Playback, Remote access
Video display: Single camera or Quadrant split screen
Recording mode: Manual / Timer / Motion detection
Hard Drive: FREE 500GB Seagate Barracuda 7200 RPM HDD included
Video systems: PAL/NTSC (Auto)
Security camera BNC inputs: 4
TV display BNC outputs: 1
Audio sensor AV input: 1
Speaker output AV: 1
RJ-45 network adapter: 1
USB 2.0 ports: 2 (mouse, keyboard, flash drive, external HDD)
RS485 port: 1 (PTZ control)
VGA port: 1 (PC monitor)
Video recording standard: H.264, true MPEG-4 compression
Video size (depending on quality selected): 25MB - 450MB /hour
Frames per second: 100 (total for 4 cameras)
Motion detection support: YES
Pre-Alarm recording: Able to record for 10 seconds before alarm goes off
Network function support: YES
PTZ function support: YES
Mobile phone browsing support: YES
Menu languages: English, Traditional Chinese, Simplified Chinese, Italian, Spanish, Russian, French, German, Portuguese, Turkish, Polish, Romanian, Hungarian, Finnish, Persian, Thai, Greek, Vietnamese

IP CAMERA SPECIFICATIONS
Image sensors: Premium 1/4 inch color SONY CCD (Weatherproof)
Shutter speed: 1/50th of a second
TV lines: 420
Color system: PAL
Infrared sensors: 36 LED
IR distance: 30-40M
Minimum illumination: 0 Lux
Pixel resolution: 512 x 582
AGC: AUTO
Backlight compensation: AUTO
White balance: AUTO
Cable Length: 18 M
NETWORK SPECIFICATIONS:
Network protocol: TCP/IP, PPPOE, DDNS and NTP
Connection: RJ-45 Port (10/100M)
IP address: Static / DHCP
Remote browsing: Internet Explorer
Remote capture: Image / Video
Capture format: H.264 MP4
Certifications: CE, FCC, RoHS

Product Notes

Remote recording and snapshot control via Internet
You can easily change the BNC connection to an RCA AV type with a simple BNC to RCA coupler adapter.
Network video surveillance is through Internet Explorer only. You will need to turn on the Active X control for the browser to download a small Active X component to view the live video.
This DVR unit is compatible with all BNC connector security camera types.

Package Contents

Digital Video Recorder unit
12V/4A Power Supply
Weatherproof Cameras x4
5.5V/1A Power Supply x4
18 meter BNC Cable x4
Remote Control
Mouse
Software CD
User Manual - English
Mounting Screws
Power Connector

Frequently Asked Questions

Why can't I view the control page from my FireFox browser?
For best results, please use Internet Explorer (with Active X enabled) or the provided evaluation software.

Do the four cameras have audio?
The camera itself cannot record audio, but you can connect an external mic for audio recording.

Do I have to turn night vision on manually?
No, the cameras each have a light sensor that detects light levels and switches to nightvision/IR mode automatically!

I noticed that the video systems listed for the DVR unit are PAL and NTSC. Yet the camera color systems are only PAL. Is this a mistake?
No, the DVR unit supports both types of signals in that it is compatible with many different types of cameras. The SONY cameras included in this kit are of the more popular PAL type in the event you wish to use the cameras as standalone devices.
