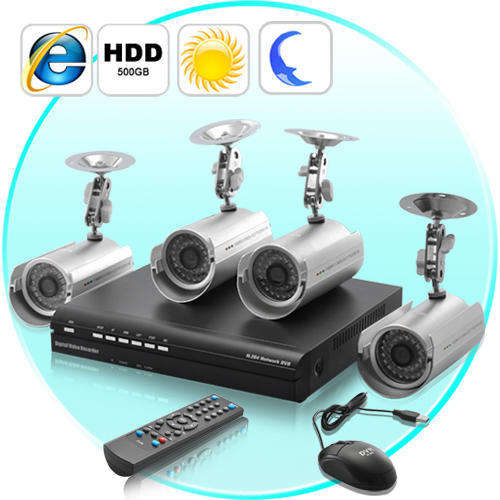

SecurONE Outdoors Lite - Complete Surveillance Kit (H264 DVR + 4 CMOS Weatherproof IP Camera + 500GB HDD) - I202

At a Glance...

• New standard for DVR with high performance and competitive price
• 1/4 CMOS 420TVL Lens with 36 IR LED
• Real time live display up to 4 cameras
• Automatic night vision switch
• Smart video detection: Motion Detecting, Video Loss
• Network connection with IE browser view
• User-friendly GUI, Easy to operate without manuals.
• Similar to our CVLM-I102 but without PTZ control

Manufacturer Specifications

• DVR SPECIFICATIONS
  - Operating system: Embedded Linux
  - Main function: Live display, Recording, Playback, Remote access
  - Video display: Single camera or Quadrant split screen
  - Recording mode: Manual / Timer / Motion detection
  - Hard Drive: FREE 500GB Seagate Barracuda 7200 RPM HDD included
  - Video systems: PAL/NTSC (Auto)
  - Security camera BNC inputs: 4
  - TV display BNC outputs: 1
  - Audio sensor AV input: 1
  - Speaker output AV: 1
  - RJ-45 network adapter: 1
  - USB 2.0 ports: 2 (mouse, keyboard, flash drive, external HDD)
  - VGA port: 1 (PC monitor)
  - Video recording standard: H.264, true MPEG-4 compression
  - Video size (depending on quality selected): 25MB - 450MB /hour
  - Frames per second: 100 (total for 4 cameras)
  - Motion detection support: YES
  - Pre-Alarm recording: Able to record for 10 seconds before alarm goes off
  - Network function support: YES
  - Mobile phone browsing support: YES
  - Menu languages: English, Traditional Chinese, Simplified Chinese, Italian, Spanish, Russian, French, German, Portuguese, Turkish, Polish, Romanian, Hungarian, Finnish, Persian, Thai, Greek, Vietnamese
• IP CAMERA SPECIFICATIONS
  - Image sensors: 1/4 inch CMOS (Weatherproof)
  - Shutter speed: 1/50th of a second
  - TV lines: 420
  - Color system: PAL
  - Infrared sensors: 36 LED
  - IR distance: 30-40M
  - Minimum illumination: 0 Lux
  - Pixel resolution: 512 x 582
  - AGC: AUTO
  - Backlight compensation: AUTO
  - White balance: AUTO
  - Cable Length: 18 M
• NETWORK SPECIFICATIONS:
  - Network protocol: TCP/IP, PPPOE, DDNS and NTP
  - Connection: RJ-45 Port (10/100M)
  - IP address: Static / DHCP
  - Remote browsing: Internet Explorer
  - Remote capture: Image / Video
  - Capture format: H.264 MP4
• Certification: CE, FCC, RoHS

Product Notes

• Remote recording and snapshot control via Internet
• You can easily change the BNC connection to an RCA AV type with a simple BNC to RCA coupler adapter.
• Network video surveillance is through Internet Explorer only. You will need to turn on the Active X control for the browser to download a small Active X component to view the live video.
• This DVR unit is compatible with all BNC connector security camera types.

Package Contents

• Digital Video Recorder unit
• 12V/4A Power Supply
• Weatherproof Cameras x4
• 5.5V/1A Power Supply x4
• 18 meter BNC Cable x4
• Remote Control
• Mouse
• Software CD
• User Manual - English
• Mounting Screws
• Power Connector

FAQ - Frequently Asked Questions

• Why can't I view the control page from my FireFox browser?
  For best results, please use Internet Explorer (with Active X enabled) or the provided evaluation software.
• Do the four cameras have audio?
  The camera itself cannot record audio, but you can connect an external mic for audio recording.
• Do I have to turn night vision on manually?
  No, the cameras each have a light sensor that detects light levels and switches to nightvision/IR mode automatically!
