Seeed Studio (101020555) Thermocouple Amplifier Board, 1 Wire, 3.3 V / 5 V

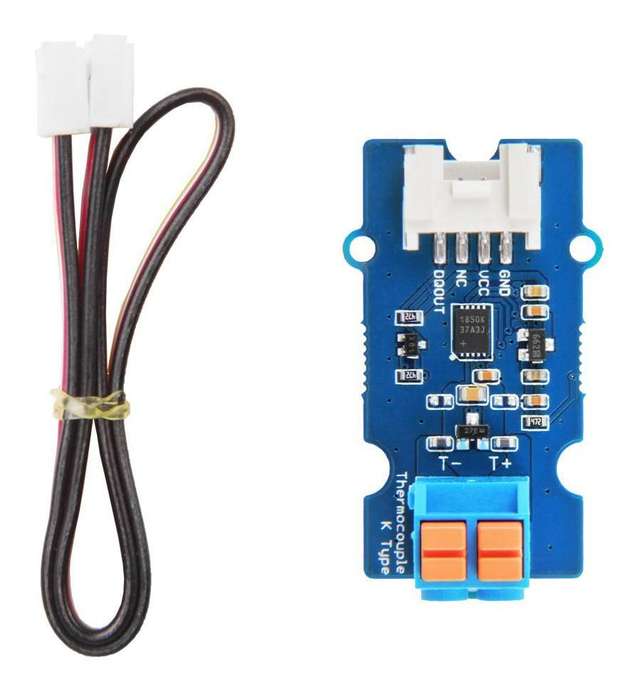

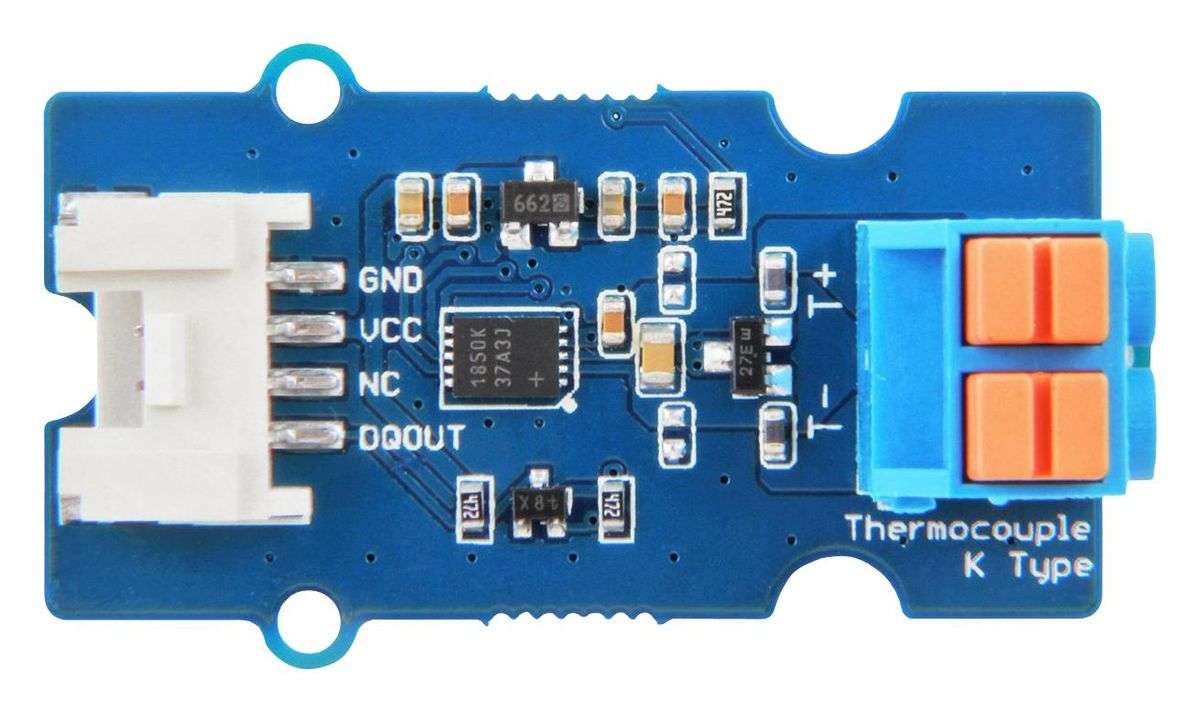

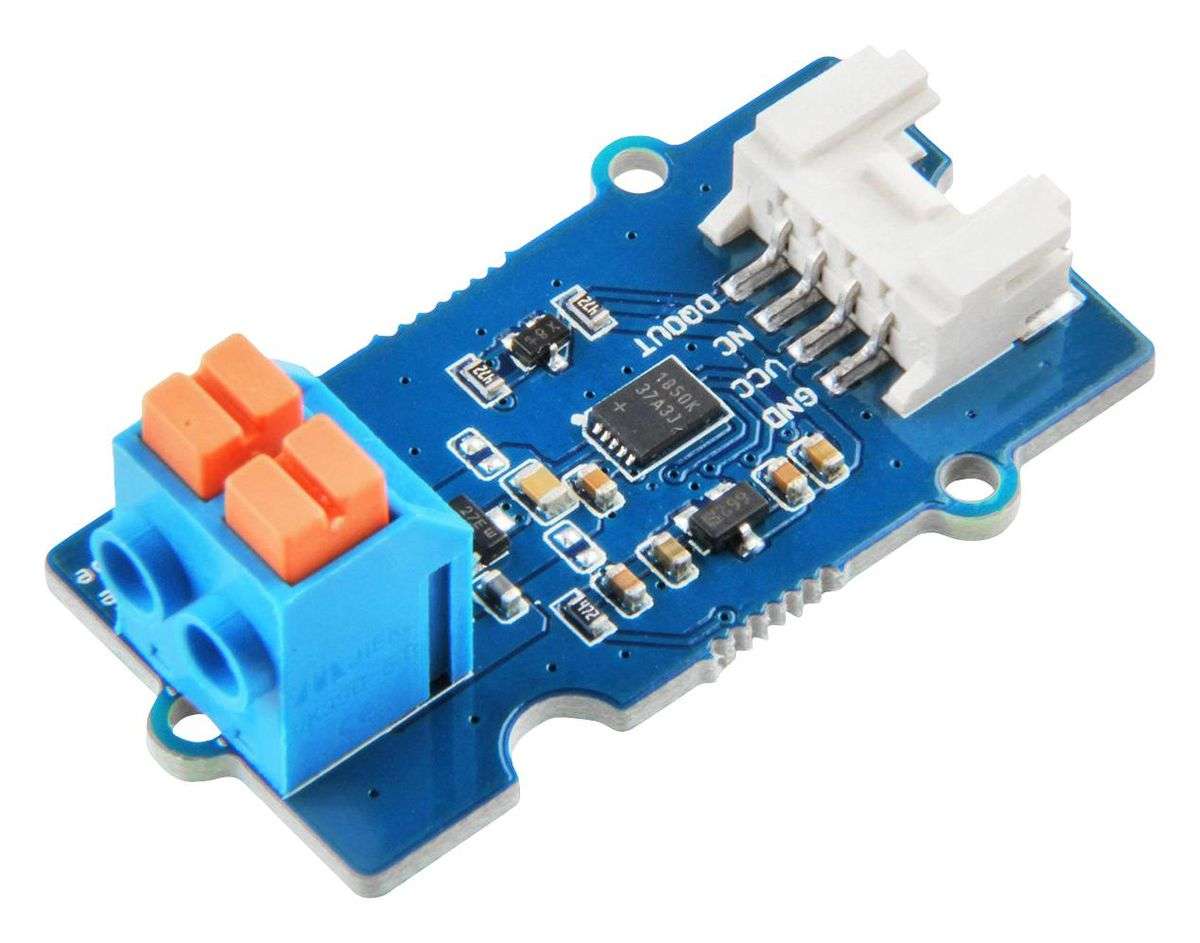

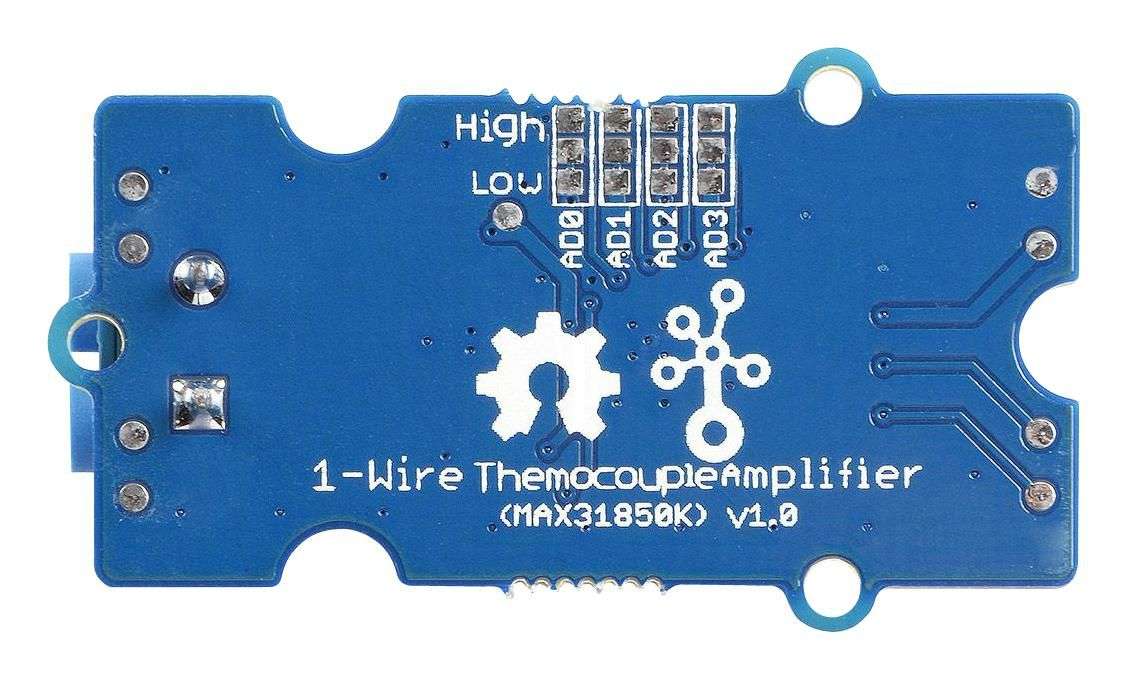

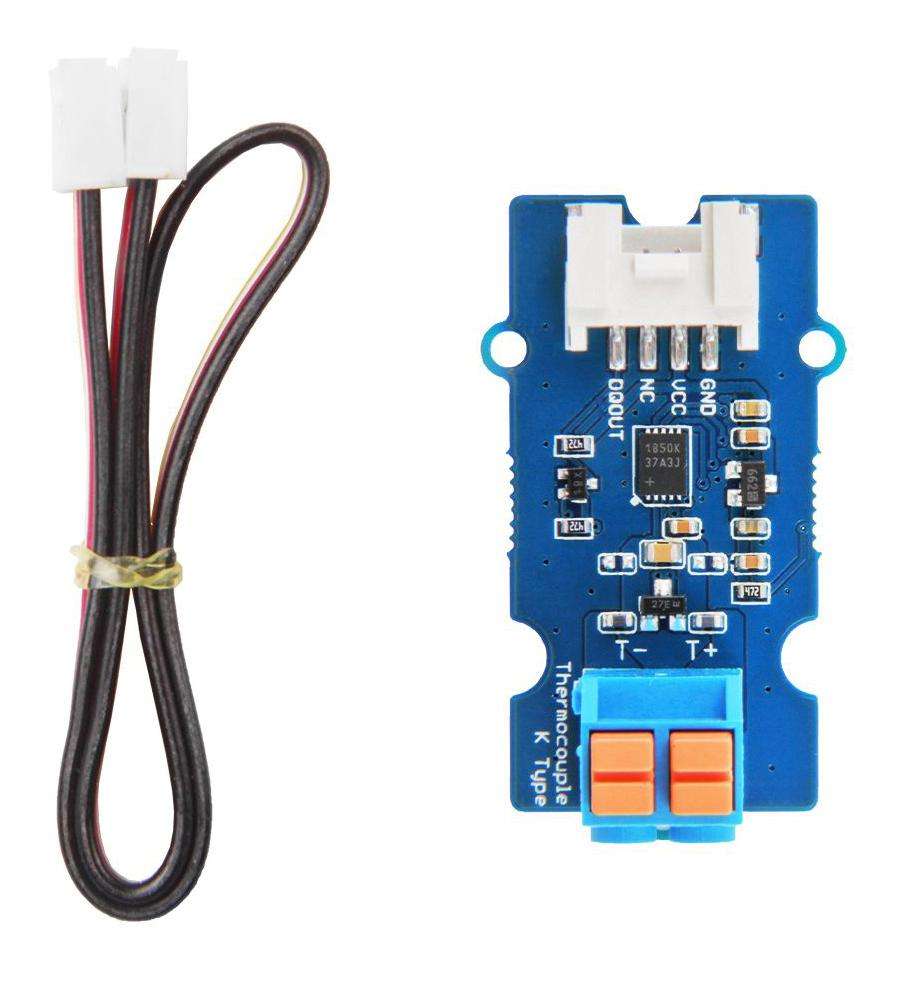

Grove - 1-Wire Thermocouple Amplifier (MAX31850K) module which is athermocouple-to-digital converters with 14-bit resolution and cold-junctioncompensation. This module is designed to be used in conjunction with a k-typethermocouple. The thermocouples have a much larger measurement range thanthermistors. For example, this k-type thermocouple on our website has ameasurement range of -50 C to +600 C. Typical applications include medical,appliances, industrial and HVAC(Heating, Ventilation and Air Conditioning).Specifications:- Silicon Manufacturer: Seeed Studio- Accessory Type: Thermocouple Amplifier Board- Silicon Core Number: MAX31850K- For Use With: Arduino Board- Kit Contents: 1-Wire Thermocouple Amplifier Board, Grove Cable- Integrated cold-junction compensation- Wide conversion range: allow readings from -270 C to +1768 C- 14-bit, 0.25 C resolution- Will not work with any other kind of thermocouple except K type- Detects thermocouple shorts to GND or VDD- Detects open thermocouple- Working voltage is 3.3V/5V- Operating temperature range from -40 C to 125 C- Dimension is 40mm x20mm x18mm- 1-wire bus output interface and DIP female blue-2 pin input jack
