Seeed Studio (101020585) Sensor Board, ICM20600, AK09918, w/Cable

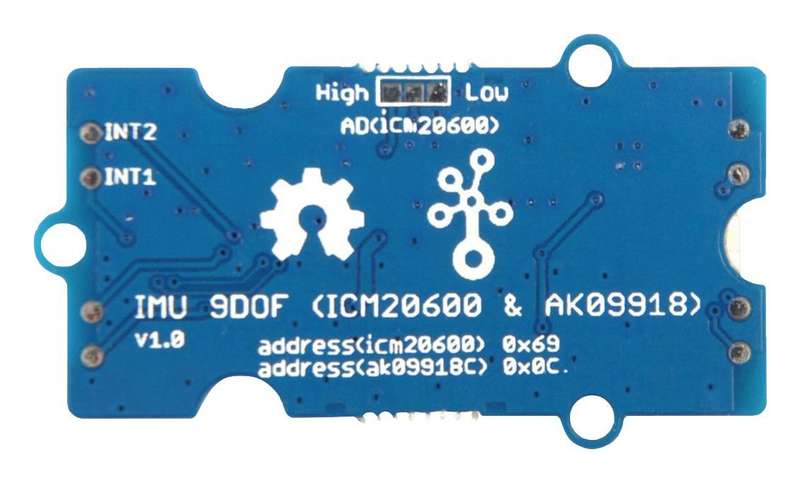

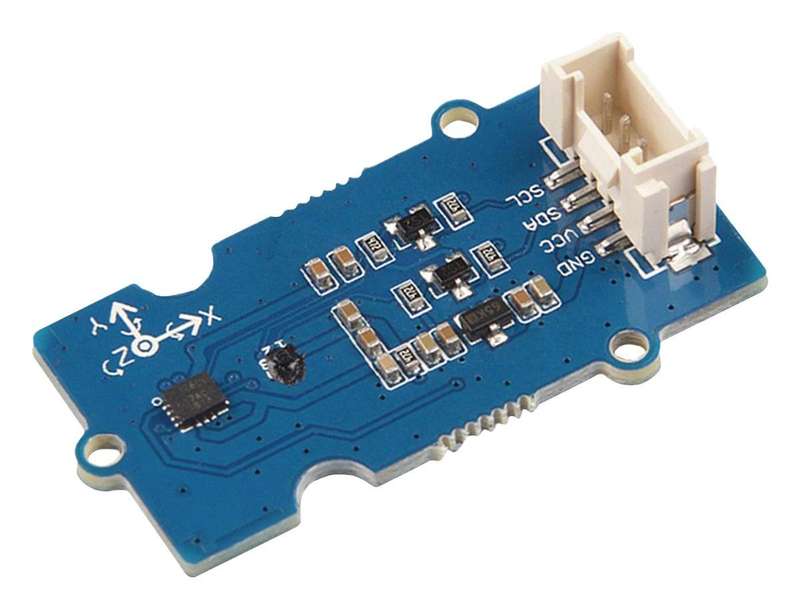

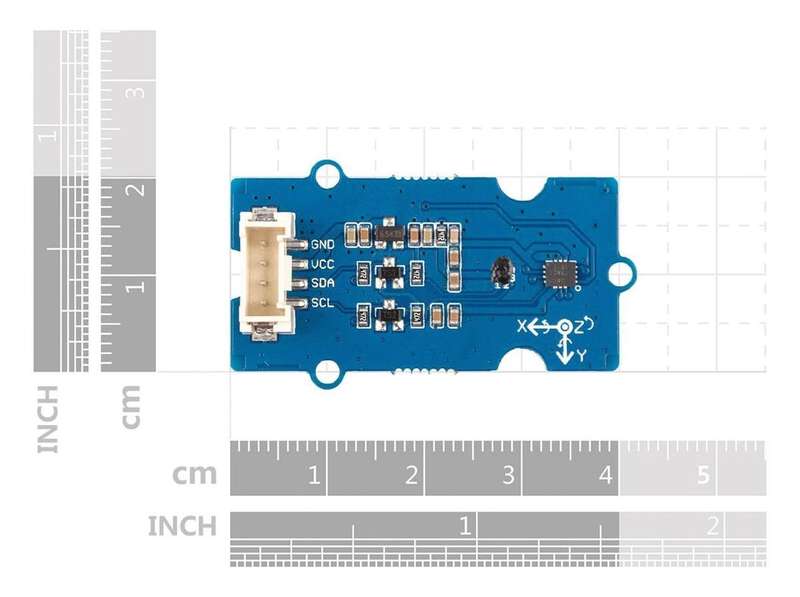

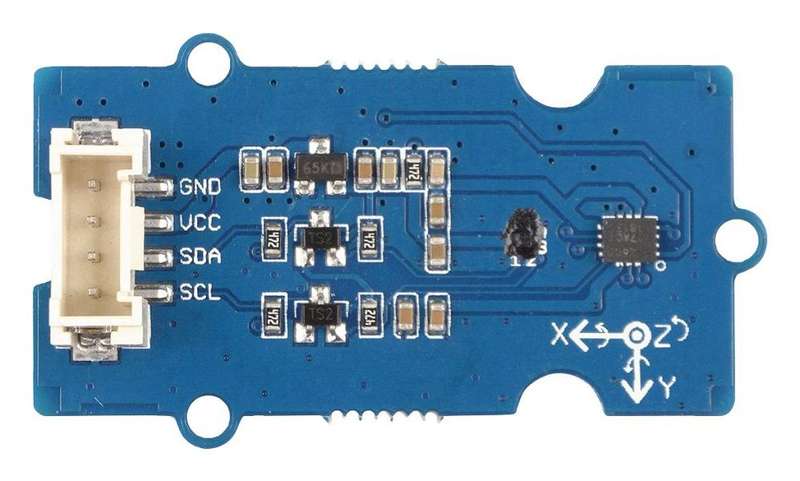

Grove - IMU 9DOF (lCM20600+AK09918) motion sensor module which is a 9 Degrees ofFreedom IMU (Inertial measurement unit) which combines gyroscope, accelerometerand electronic compass. The LCM20600 is a 6-axis MotionTracking device thatcombines a 3-axis gyroscope, 3-axis accelerometer. Gyroscope is a device usedfor measuring or maintaining orientation and angular velocity, normally, we useit to measure spin and twist. Accelerometer is a device that measures properacceleration. The AK09918 is a 3-axis electronic compass IC with high sensitiveHall sensor technology. We use an electronic compass to measure the magneticforce, which can provide us with the direction information. Suitable forsmartphones and tablets, wearable sensors applications.Specifications:- Silicon Manufacturer: TDK, SparkFun Electronics- Accessory Type: 9 Degrees of Freedom IMU Board- Silicon Core Number: ICM20600, AK09918- Kit Contents: Grove Sensor Board IMU 9DOF, Cable- For Use With: Arduino and Raspberry Pi Development Boards- 3-axis gyroscope with programmable FSR of 250dps, 500dps, 1000dps and 2000dps- 3-axis accelerometer with programmable FSR of 2g, 4g, 8g, and 16g- 3-axis electronic compass with 0.15 T/LSB (typ.) sensitivity- User-programmable interrupts and embedded temperature sensor- 16-bit ADC resolution and programmable filters for acceleration measurements- 16-bit ADC resolution for magnetic measurements- 1KB FIFO buffer enables the applications processor to read the data inbursts(LCM20600)- Magnetic sensor overflow monitor function and built-in oscillator for internalclock source- Operating voltage of 3.3V / 5V- Supports I2C interface
