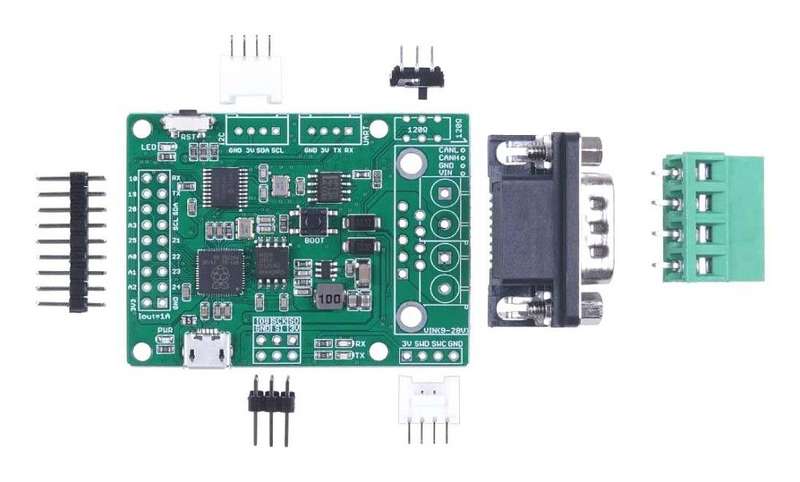

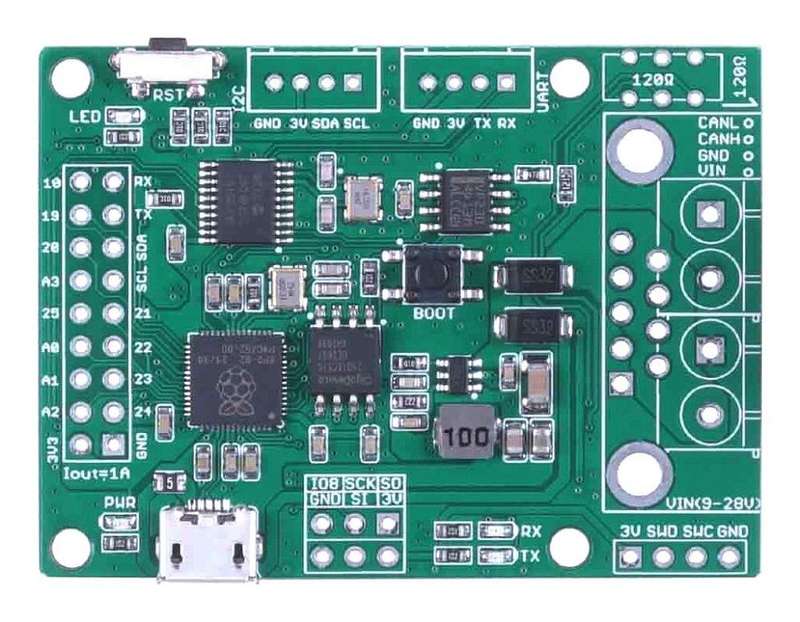

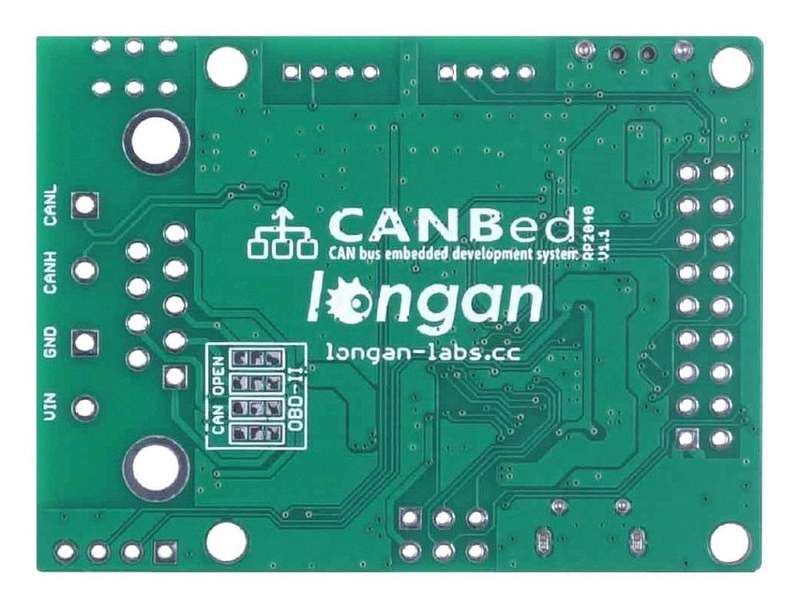

Seeed Studio (102991596) Development Board, RP2040, 32 bit, ARM Cortex-M0+

Product Information:Kit Type: CANBed CAN Bus Development KitSilicon Manufacturer: Raspberry PiNo. of Bits: 32bitKit Contents: Sub-D Connector, 4Pin Terminal & HY2.0 Connector, 9x2 & 3x3 2.54Header, 120 ohm Terminal ResistorSilicon Family Name: -Core Architecture: ARMCore Sub-Architecture: Cortex-M0+Silicon Core Number: RP2040Product Range: -Product Overview:CANBed CAN Bus development board equipped powerful RP2040 has high-performanceCAN controller and receiver operating at CAN 2.0 up to 133Mhz. It has flexibleCAN interface which can be used as 4-PIN Terminal or D89 connector as OBD-IImode through a programmable Micro USB.Powerful Raspberry Pi RP2040 processorImplements CAN V2.0B at up to 1Mb/sIndustrial standard 9 pin sub-D connector or 4pin terminalOBD-II and CAN standard pinout selectable at the sub-D connector2x4 pin connector compatible with grove system from SeeedstudioSPI interfaceStandard (11 bit) and extended (29 bit) data and remote framesPower input from 9 to 28V
