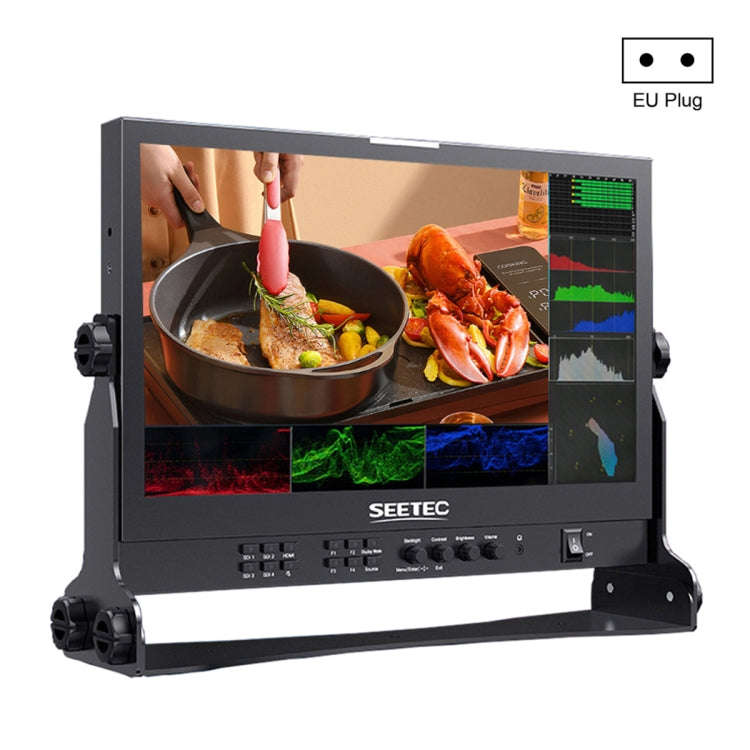

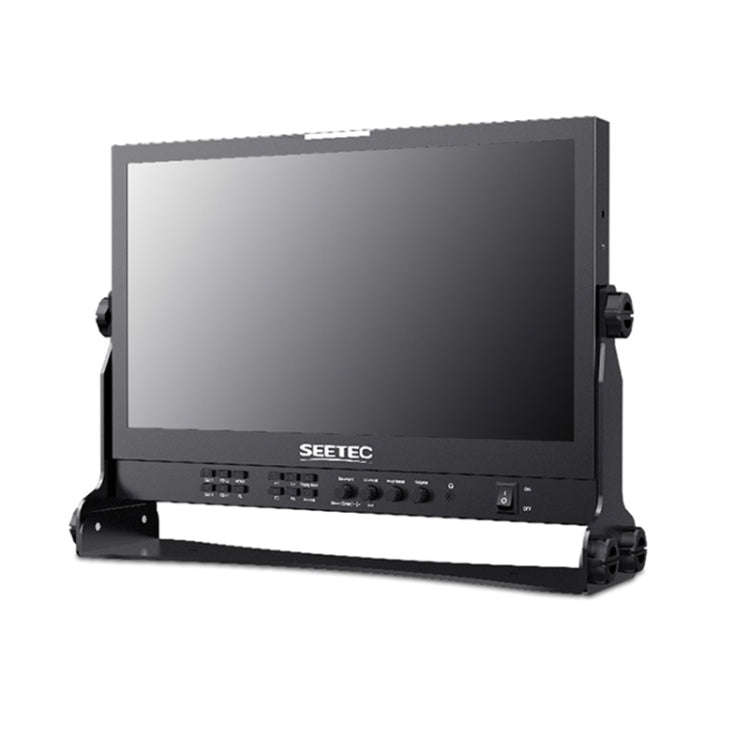

SEETEC ATEM156S 15.6 inch 3G-SDI HDMI Full HD 1920x1080P Multi-camera Broadcast Monitor(EU Plug)
New
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 15 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
International
Product code
DCA1818EU
Bob Shop ID
614131102

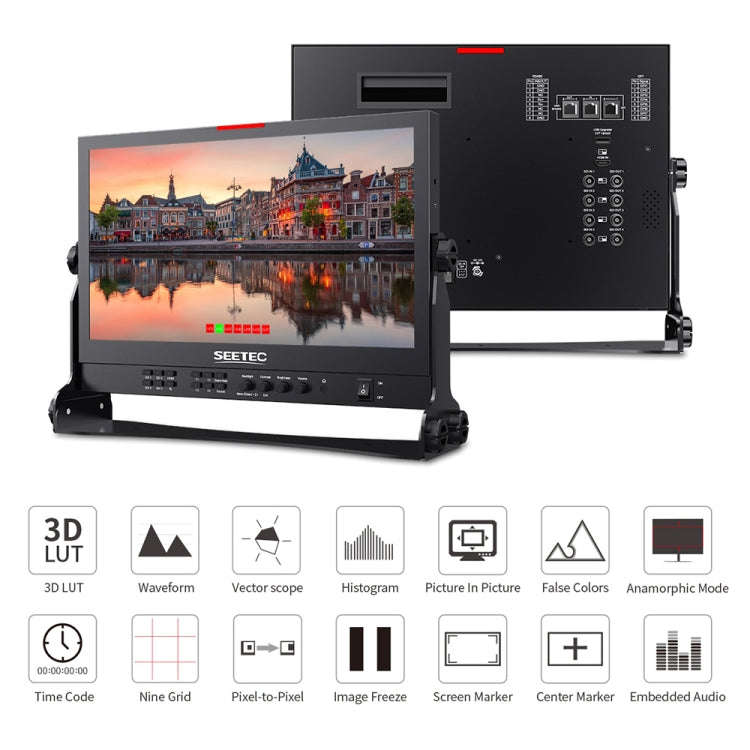

Features
1. Built-in Multi camera Delog LUTs
2. User 3DLUTs upload via USB (up to 36)
3. Support GPI control
4. Support dynamic IMD, support TSL 3.1/4.0 and IMAGE VIDEO protocol
5. Support TALLY
6. Support 16-ch embedded audio meters display
7. Histogram
8. HDR
9. Focus Assist (Yellow, Red, Green, Blue, White five colors optional highlight over parts of the image in focus)
10. False Colors
11. Zebra (70IRE, 80IRE, 90IRE)
12. Timecode Display
13. Picture in Picture (Adjustable Horizontal or Vertical Wipe Position)
14. Under Scan, Over Scan
15. Anamorphic Mode (1.25X, 1.33X, 1.5X, 2.0X, 2.0X mag)
16. Pixel to Pixel
17. Center Marker
18. Safety Marker (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1,user)
19. Marker Mat (16:9, 16:10, 4:3, 1.85:1, 2.35:1)
20. All Waves
21. Parade (RGB Parade, Y, YUV Parade)
22. Image Freeze
23. Selectable Color Temperature Presets
Specifications
Display Screen
1. Model: ATEM156S
2. Screen Size: 15.6 inch IPS
3. Color Depth: 16.7M
4. Resolution: 1920 x 1080 pixels
5. Pixel pitch: 0.17925(W) x 0.17925(H) mm
6. Aspect Ratio: 16:9
7. Brightness: 200cd/m2
8. Contrast Ratio: 800:1
9. Backlight: LED
10. Viewing Angle: 85 degrees /85 degrees (L/R) 85 degrees /85 degrees (U/D)

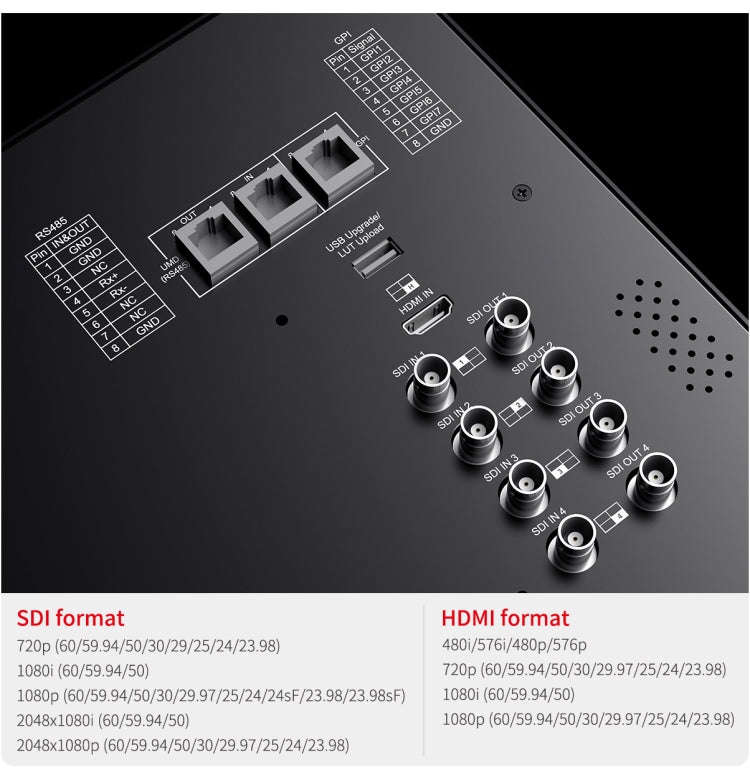

Input
1. 4 x 3G-SDI: 3G-SDI (support 2K)
2. 1 x HDMI: HDMI (support 1080P)
3. 1 x RS485: RS485
4. 1 x GPI: GPI
5. 1 x USB: USB (upgrade and LUT import)
Output
1. 4 x 3G-SDI: 3G-SDI (support 2K)
2. 1 x RS485: RS485
Audio
- Audio: Stereo Headphone
SDI Support Format:
- 720p (60/59.94/50/30/29/25/24/23.98)
- 1080i (60/59.94/50)
- 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
- 2048x1080i (60/59.94/50)
- 2048x1080p (60/59.94/50/30/29.97/25/24/23.98)
HDMI Support Format:
- 480i/576i/480p/576p
- 720p (60/59.94/50/30/29.97/25/24/23.98)
- 1080i (60/59.94/50)
- 1080p (60/59.94/50/30/29.97/25/24/23.98)
General

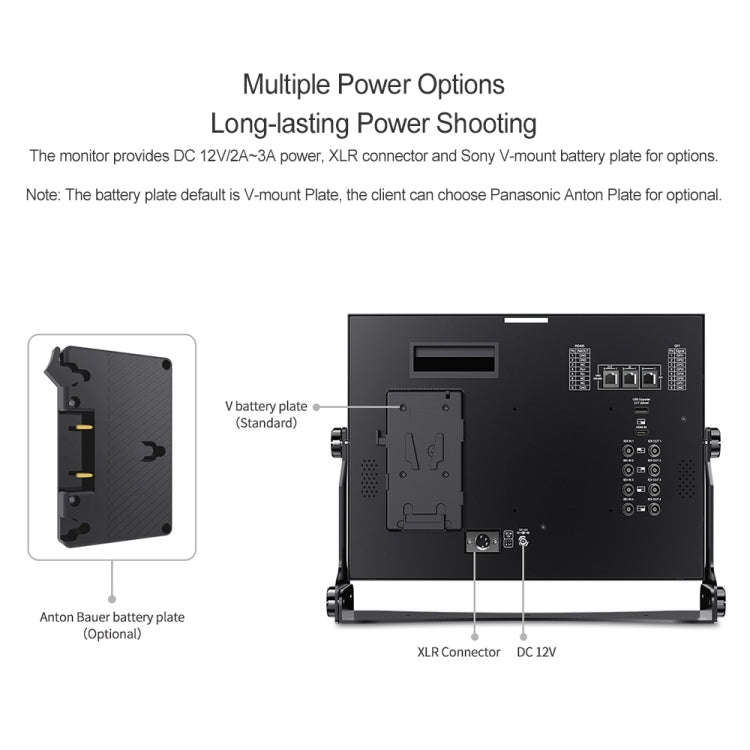

1. Input Voltage: DC 12V
2. Power Consumption: Less than or equal to 21W
3. Working Temperature:0 degree C~50 degree C
4. Storage Temperature:-20 degree C~60 degree C

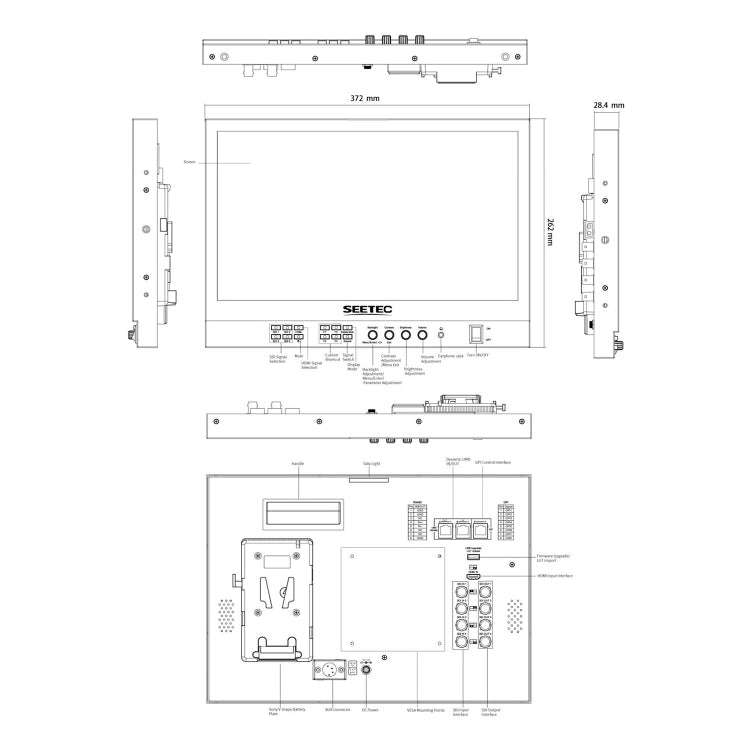

5. Unit Size: 372L x 262H x 28.4D (mm) (W/O bracket)
6. Unit Weight: 1.81kg
Package List
1. Monitor x 1
2. SDI Cable x 1
3. Mini HDMI Cable x 1
4. V-mount Battery Plate (default to mount on device) x 1
5. Sunshade x 1

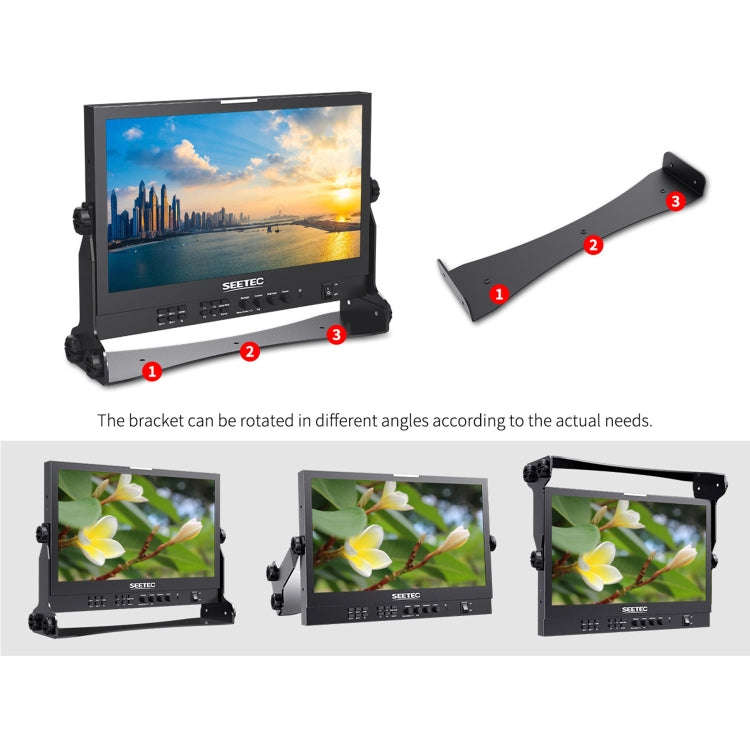

6. U-shape Bracket x 1
7. Power Adapter x 1
8. User Manual x 1
