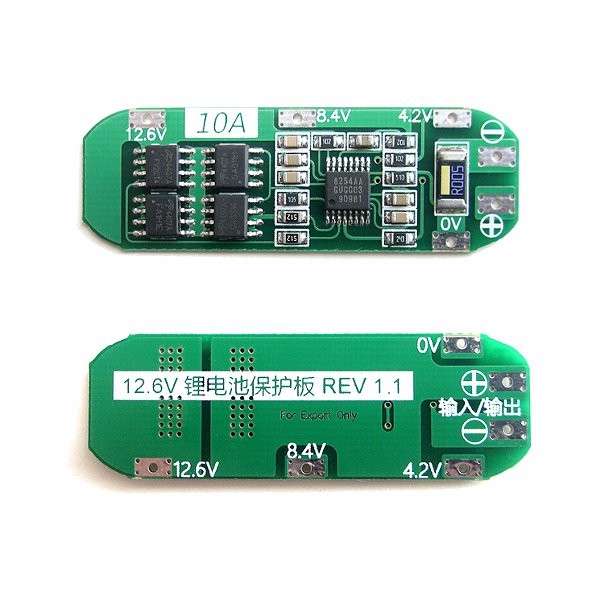

Seiko Protection IC 10A Protection Board For 3S 11.1V 12V 12.6V 18650 Lipo Battery
Description:
Item Name: Lipo battery protection board
Dimension: 50*16.5*3mm
Weight: 2.4g
Charging Voltage: 12.6V
Max. Output Current / Charging Current: 10A
Max. Output Power / Charging Power: 126W
Usage: Suitable for 3.6V,3.7V lipo battery (included 18650,26650 and other lithium polymer battery)
Electrical Parameters:
 Min. ValueTypical ValueMax. ValueUnit
Self - consumption Current121824μA
Over Charge Protection Voltage4.164.224.27V
Over Charge Recovery Voltage4.14.164.2V
Over Discharge Protection Voltage2.352.52.7V
Over Discharge Recovery Voltage2.93.23.3V
Conduction Resistance202428mΩ
Overcurrent Protection Current182022A
Overcurrent Delay Time51015ms
Continuous Working Current01010A
Continuous Output Power0126126W
Ambient Temperature-402585¿¿¿

Features:

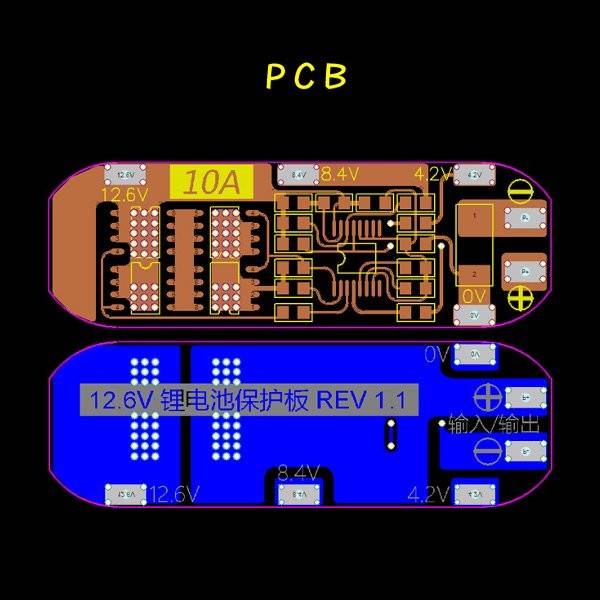

Excellent PCB design, excellent workmanship
Japan Seiko lithium protection IC,perfect protection function
The United States MOS tube, low resistance, low loss
Alloy resistance, high temperature resistance and stability
Note:

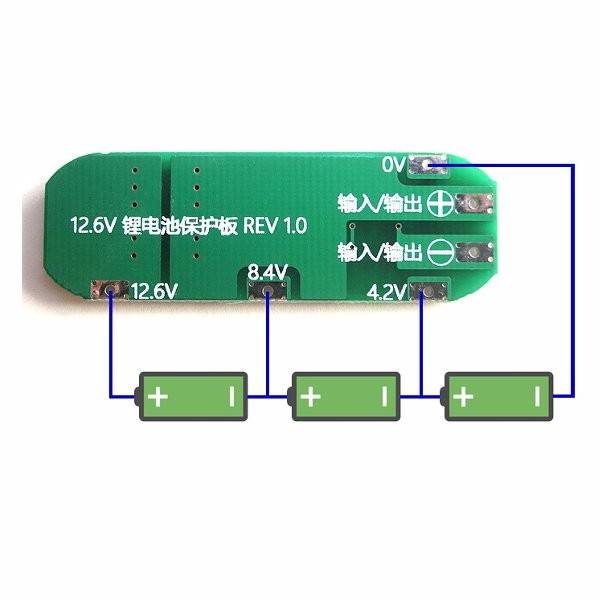

Strictly according to the diagram wiring 0V, 4.2V, 8.4V, 12.6V, do not deliberately short circuit.
After connecting the line need to be charging activated before the output.
Discharge test, the voltage drop of the fastest group of batteries is the bad battery.
When three groups of batteries are connected in series, please ensure that the voltage of each battery is the same. If not, please charge each battery separately and then use it in series.
Do not mix the good battery and the bad battery.
3 battery capacity / internal resistance of the closer the better!
Package Included:
1x Protection Board
