A broadcast quality sound solution. Providing the highest flexibility for your video sound and field recording applications.
A robust wireless microphone system that offers excellent sound quality, simple mounting and ease of use.

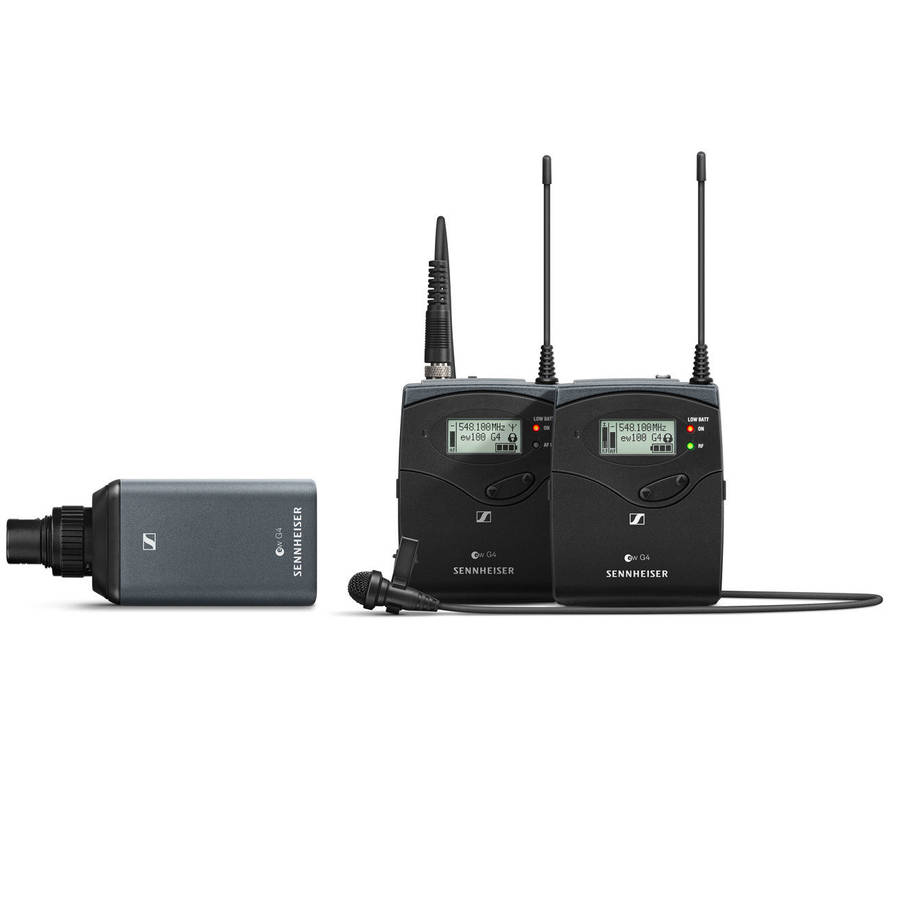

Multi-purpose set for mobile journalism and documentary. The powerful plug-on transmitter SKP 100 turns every wired dynamic microphone into a wireless transmitter while the easy to use clip-on microphone ME 2-II (omni-directional) offers excellent speech intelligibility during interviews.
Key Features
Rugged all-in-one wireless system with high flexibility for broadcast quality sound
Excellent sound and construction quality
Easy to use and fast setup time
Powerful and reliable wireless transmission
Range: up to 100 meters / 330 feet
Up to 8 hours of operation time
EK 100 G4
Frequency range
A1: 470 - 516 MHz
A: 516 - 558 MHz
AS: 520 - 558 MHz
GB: 606 - 648 MHz
G: 566 - 608 MHz
B: 626 - 668 MHz
C: 734 - 776 MHz
D: 780 - 822 MHz
E: 823 - 865 MHz
JB: 806 - 810 MHz
K+: 925 - 937,5 MHz
Dimensions
Approx. 82 x 64 x 24 mm
Compander
Sennheiser HDX
THD, total harmonic distortion
0.9 %
Weight
(incl. batteries) approx. 160 g
Audio output
3.5 mm jack socket: +12 dBu (mono, unbalanced)
Signal-to-noise ratio
110 dBA
Switching bandwidth
up to 42 MHz
Peak deviation
48 kHz
Nominal deviation
24 kHz
Operating time
Typically 8 h
Modulation
Wideband FM
Power supply
2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption
at nominal voltage: typ. 180 mA
with receiver switched off: 25 A
Adjacent channel rejection
65 dB
Intermodulation attenuation
65 dB
Powering
3 V battery / 2.4 V rechargeable battery
Receiving frequency
Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
RF sensitivity
< 1.6 V for 52 dBA eff S/N
Squelch
low: 5 dBV middle: 15 dBV high: 25 dBV
Temperature Range
-10 C to +55 C
Receiver Principle
Adaptive diversity
Blocking
70 dB
SK 100 G4
Dimensions
Approx. 82 x 64 x 24 mm
Compander
Sennheiser HDX
THD, total harmonic distortion
0.9 %
Weight
(incl. batteries) approx. 160 g
Signal-to-noise ratio
110 dBA
RF output power
Max. 30 mW
Switching bandwidth
up to 42 MHz
Peak deviation
48 kHz
Nominal deviation
24 kHz
Operating time
Typically 8 h
Modulation
Wideband FM
Power supply
2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption
at nominal voltage: typ. 180 mA
with transmitter switched off: 25 A
Input impedance
40 k, unbalanced / 1 M
Max. Input voltage
3 Veff
Powering
3 V battery / 2.4 V rechargeable battery
Transmission frequency
Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
AF frequency response
Mic: 80 18,000 Hz Line: 25 18,000 Hz
Temperature Range
-10 C to +55 C
Frequency stability
15 ppm
SKP 100 G4
Dimensions
Approx. 105 x 43 x 43 mm
Compander
Sennheiser HDX
THD, total harmonic distortion
0.9 %
Weight
(incl. batteries) approx. 195 g
Signal-to-noise ratio
110 dBA
RF output power
Max. 30 mW
Switching bandwidth
up to 42 MHz
Peak deviation
48 kHz
Nominal deviation
24 kHz
Operating time
Typically 8 h
Modulation
Wideband FM
Power supply
2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption
at nominal voltage: typ. 180 mA
with transmitter switched off: 25 A
Input impedance
68 k, unbalanced
Max. Input voltage
3.3 Veff
Powering
3 V battery / 2.4 V rechargeable battery
Transmission frequency
Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
AF frequency response
80 18,000 Hz
Temperature Range
-10 C to +55 C
Frequency stability
15 ppm
ME 2
Connector
3.5 mm jack
Frequency response
50 to 18,000 Hz (ME 2-II)
Max. sound pressure level
130 dB
Cable length
approx. 1.60 m
Transducer principle
pre-polarized condensor microphone
Pick-up pattern
omni-directional
Sensitivity in free field, no load (1kHz)
20 mV/Pa
Equivalent noise level
36 dB
