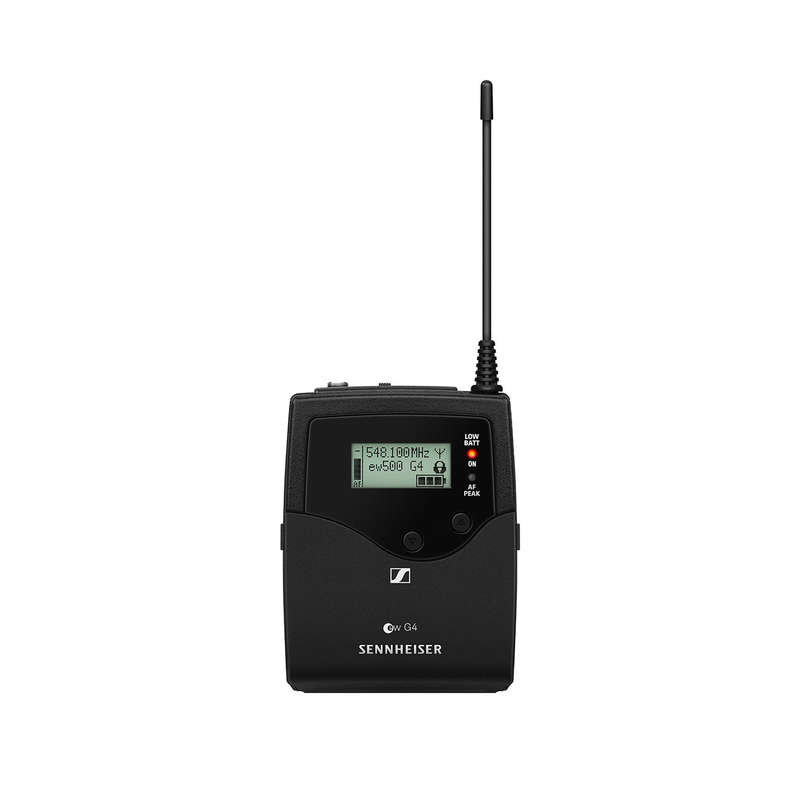

Sennheiser SK 500 G4-BW Bodypack Transmitter

Sennheiser SK 500 G4-BW Bodypack Transmitter

Powerful bodypack transmitter with increased bandwidth and transmission power, ready to take the world's biggest live stages. For evolution wireless G4 500 Series systems.

Key Features
Powerful bodypack transmitter with increased bandwidth and transmission power
Easy and flexible wireless synchronization between transmitter and receiver via infrared
Up to 32 compatible channels
Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range
Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups
High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations
Dimensions
Approx. 82 x 64 x 24 mm
Compander
Sennheiser HDX
THD, total harmonic distortion
0.9 %
Weight
(incl. batteries) approx. 160 g
Signal-to-noise ratio
115 dBA
RF output power
switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
Switching bandwidth
up to 88 MHz
Peak deviation
48 kHz
Nominal deviation
24 kHz
Operating time
Typically 8 h
Modulation
Wideband FM
Power supply
2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption
at nominal voltage: typ. 180 mA
with transmitter switched off: 25 A
Input impedance
40 k, unbalanced / 1 M
Max. Input voltage
3 Veff
Powering
3 V battery / 2.4 V rechargeable battery
Transmission frequency
Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
AF frequency response
Mic: 80 18,000 Hz, Line: 25 18,000 Hz
Temperature Range
-10 C to +55 C
Frequency stability
15 ppm
Frequency range
Dw: 790 - 865 MHz
