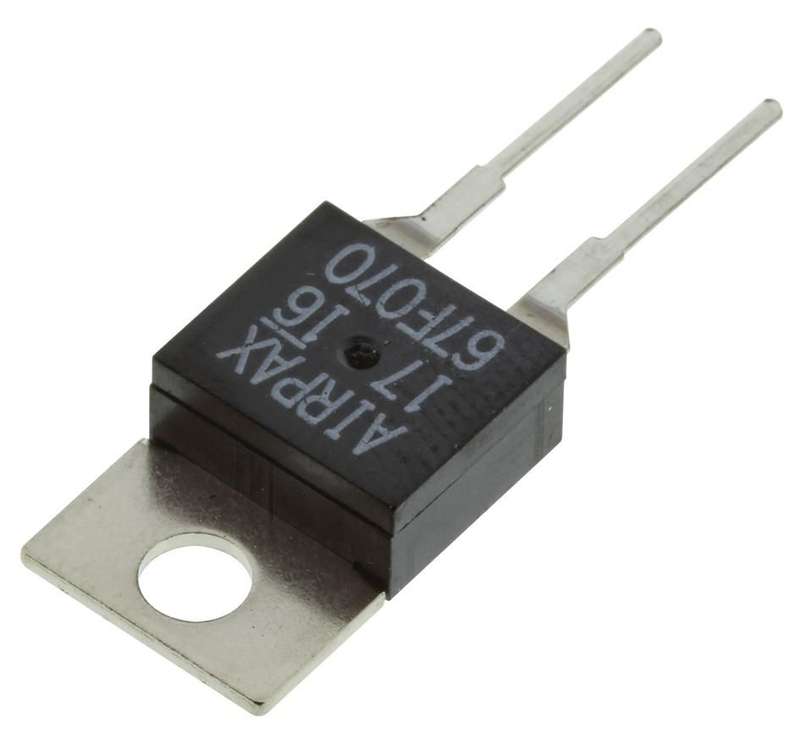

Sensata (67F070) Thermostat Switch, Subminiature, Bimetal Disc, 6700 Series

Thermostat Switch, Subminiature, Bimetal Disc, 6700 Series, 70 °C, NormallyOpen, TO-220Product OverviewThe 67F070 is a Subminiature Bimetal Disc Thermostat, fan close on rise.Positive snap action, single pole/single throw, which provides accurate andreliable sensing and switching in a single device. Fast, positive response withexcellent repeatability. Temperature is pre-set at the factory and isnon-adjustable in the field. Thermal conductivity is mainly through theterminals and the mounting bracket making the unit ideal for both surface mountand ambient air sensing. The nickel-plated copper mounting bracket comesstandard or you can utilize the laminated plastic mounting bracket for increaseddielectric strength and VDE approval. Airpax 6700 series is also ideally suitedfor use on crowded PC boards. Typical uses include turning on an indicatorlight, sounding an audible alarm, switch on a control circuit to send a messageto a display screen or even switching a circuit to shut down a system.Gold-plated contactIdeal for surface and air sensing on PC boards and heat sinksUp to 20000 life cycles at maximum standard amperageUp to 100,000 life cycles at maximum gold contact amperage-40 to 130°C Operating temperatureApplicationsComputers & Computer Peripherals, Automotive, Avionics, MedicalProduct InformationSwitching Temperature: 70°CReset Temperature: 50°CContact Operation: Normally OpenSensor Terminals: Through HoleSensor Housing: TO-220Contact Rating: 1A @ 120V ac, 1A @ 48V dcProduct Range: 6700 Series
