Sensirion SDP3x Airspeed Sensor Kit is built on CMOSens® next generation sensor chip, at the heart of Sensirion's new differential pressure and flow sensing platform. It offers unprecedented accuracy and resolution. Enables instant launch of VTOL drones, dramatically increasing the user experience for end users thanks to the calibration-free setup.
The SDP3x sensor family is Sensirion's series of small differential pressure sensors designed for high-volume applications where size is a key requirement.
The digital SDP3x sensor features fast measurement speed, excellent accuracy, and long-term stability and has no zero-point drift. This module is reflow solderable and provides extended functionality, such as smart averaging, multiple temperature compensation modes, configurable I2C address, and interrupts. The airspeed is most effectively measured with a pitot tube and a differential pressure sensor. .
Component SDP33 features :
Smallest size (5 mm x 8 mm x 5 mm) currently available, opening up new dimension of integration and applications possibilities
Measurement range ±1500 Pa (±2 in. H2O)
Excellent accuracy and repeatability, even below 1 Pa
Maximum airspeed : 50m/s
No zero-offset, no drift
Calibrated and temperature compensated
Fast sampling time of 2 kHz at 16-bit resolution
Digital I2C version
Reflow solderable, shipped in tape-and-reel for pick-and-place
Smart averaging algorithm and other digital features

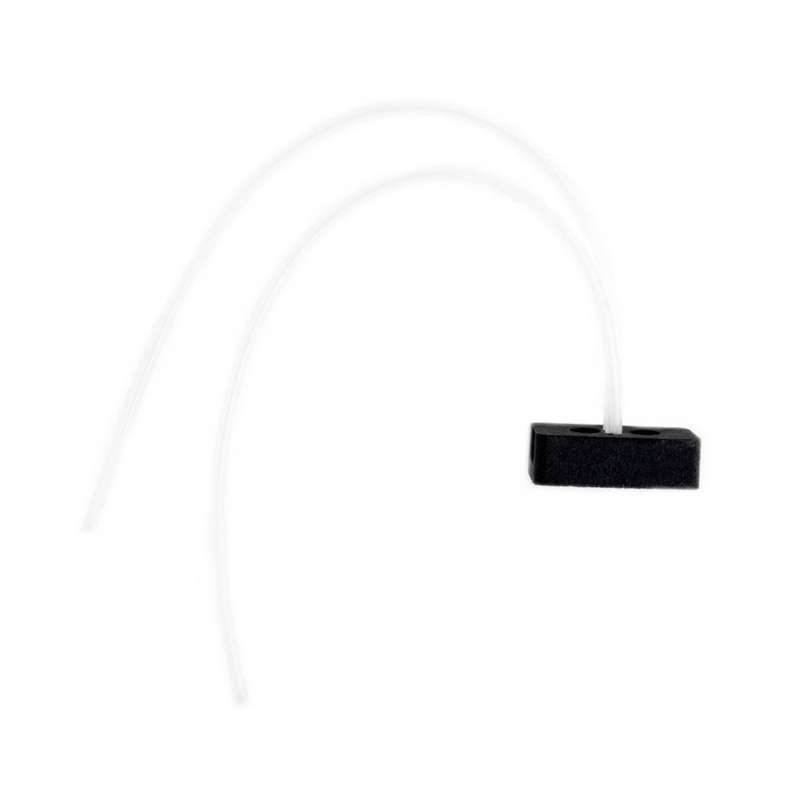

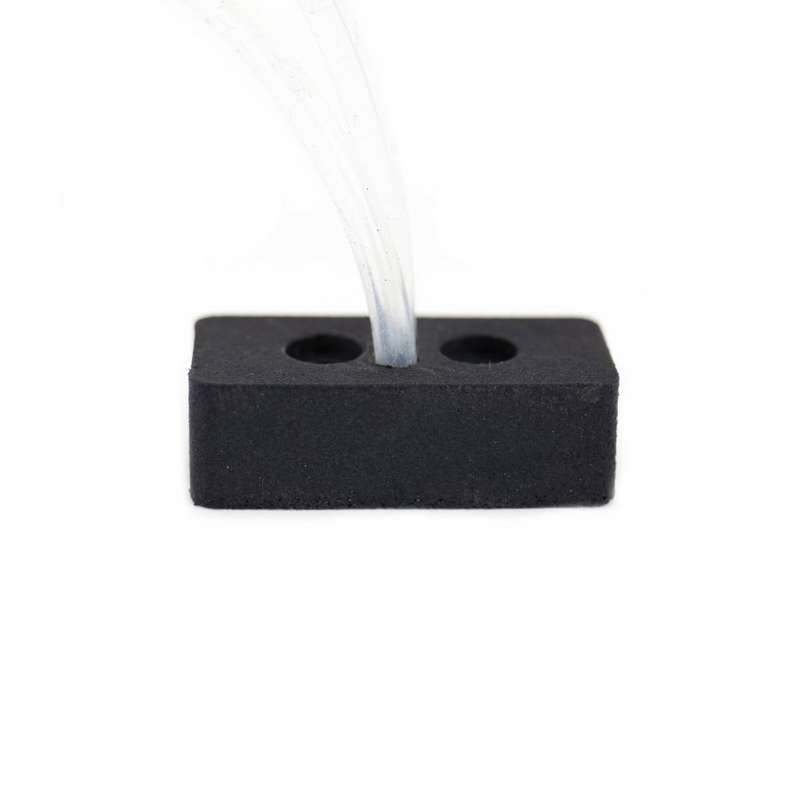

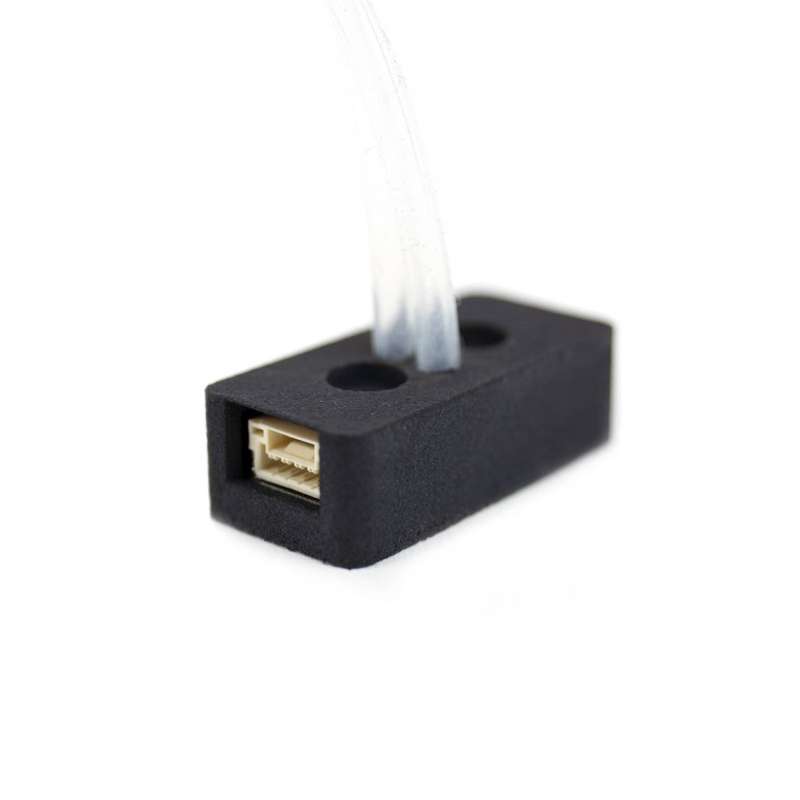

Package includes:- Sensor without Tubes
- JST-GH 4pins cable
- 2 x Rubber tubing
