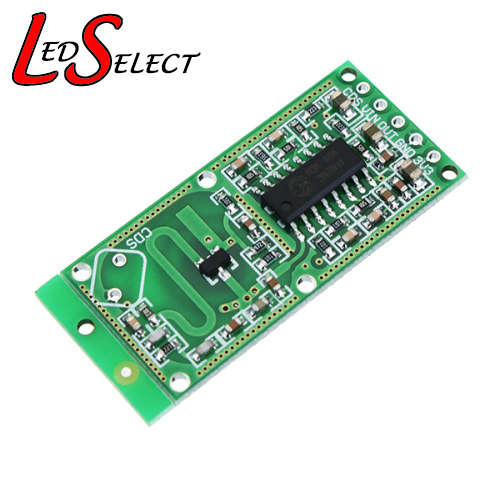

Sensor Motion Micro Wave Radar Module RCWL-0516 (4-28V) 3-7M **LOCAL STOCK**

Sensor Motion Micro Wave Radar RCWL-0516 (4-28V) 3.3V 3-4M:

Category: 3100312645 - Sensor

Specifications:

Transmission Signal Processing Control Chip: RCWL-9196
Working Voltage: 4-28V DC
Output Voltage: 3.3V DC
Operating Current: 2.8mA (typical), 3mA (max)
Transmitting Power: 20mW (typical), 30mW (max)
Output Voltage Driving Capacity: 100mA
Probe Distance: 5-7m

Features:

The RCWL-0516 is a doppler radar micro wave motion sensor module which can act as an alternative to a PIR motion sensor. Instead of sensing changes in infra red radio emitted by a moving person this sensor uses a microwave Doppler radar to detect moving objects. It has a sensitivity range of ~7 meters. When triggered its trigger output pin will switch from (LOW) 0V to high (3.3V) for ~ 2 to 3 seconds before returning to its idle LOW state. This Device can sense motion through objects Eg. roof, cupboard, Wall, etc.

Board Layout:

3V3 - Regulated output (reference only)
GND - Ground / 0V supply input
OUT - Trigger: HIGH (3.3V) motion detected / LOW (0V) idle
VIN - 5V-12V supply input
CDS - Sensor disable input (pull low to disable)
