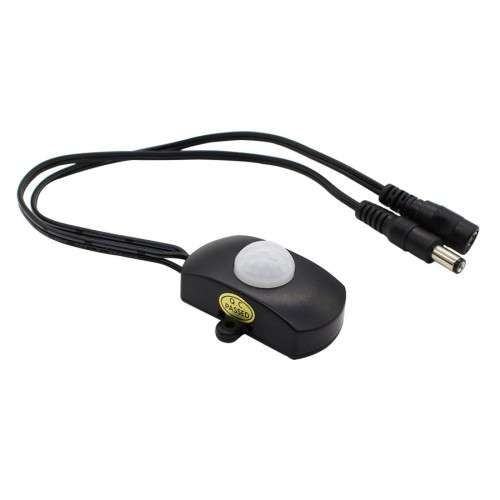

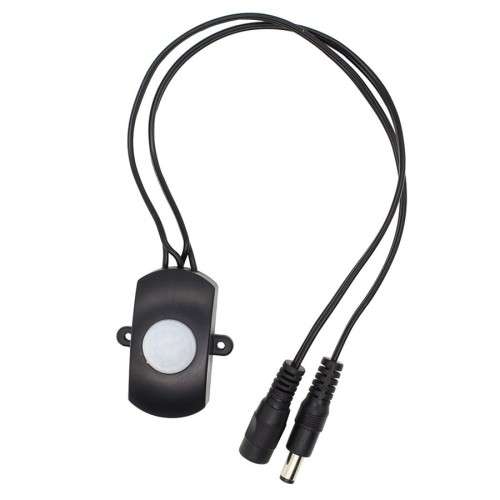

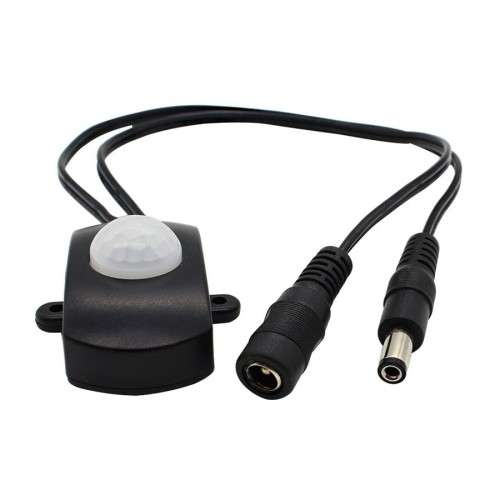

Sensor Motion PIR 12V-24V 5A **IN STOCK**

Motion Sensor PIR 12V-24V 5A:

Features:

This PIR (Passive infrared) Motion sensor is a pyroelectric device that can detect human movement by detecting infrared ray emitted by human body. When activated, the load (Led Light) will be switched on and will automatically switch off.

Widely used on Motion-activated lighting, LED strips security system, automatic sensory device, Perfect for Led Strip Lights, Etc.

Specifications:

Size: 50x26s21mm
Power Supply Voltage: 12 to 24V
Output Voltage: 12V to 24V
Output Power: (12V=96W) & (24V=192W)
Max Load Current: 5A
Working Temperature: 20-60 Degree C
Induction Angle: 120 Degree
Induction Range: <8 Mtr
Trigger Way: Continuous triggering
Adjustable Time (Length of time light is activated): 10 seconds - 4 minutes, Adjustable ( Open Cover to Adjust )

Note:

• 1.Don’t expose to direct sun light or lighting, near a heater or aircon


• 2.Don’t fix it at a place where there are obstructing material (eg. Glass, dense clothes) which IR cannot get though

• 3.Don’t fix it in strong shock or vibration environment


• 4.The PIR Sensor requires a "warm-up time" in order to function properly, about 10s to 1min depending on the delay time; during this time, the signal triggered by the module is not stable, after one minute, it will function as it should.
