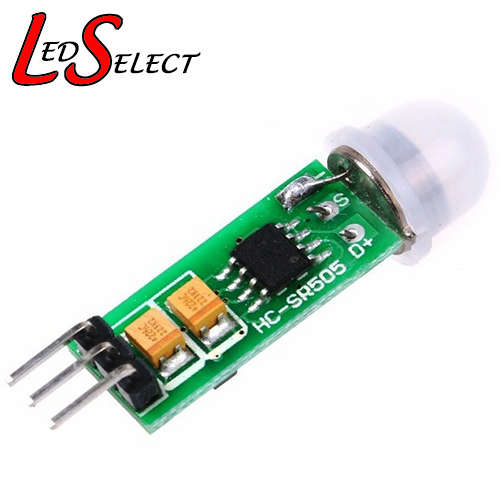

Name: Sensor PIR Module Mini HC-SR505 4.5-20V **LOCAL STOCK**
SKU: SEN140
Price: 42.00 ZAR
Availability: SoldOut

Sensor PIR Module Mini HC-SR505 4.5-20V **LOCAL STOCK**

New

2 were available

R42.00

Shipping

R65.00 Standard shipping applies to orders under R100.00, in most areas in South Africa. R35.00 Standard shipping applies to orders over R100.00. Some areas may attract a surcharge surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.

The seller has indicated that they will usually have this item ready to ship within 2 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

Led Select - Cape Town29868

100.00 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Condition

New

Location

South Africa

Product code

SEN140

Bob Shop ID

531583593

Sensor PIR Module Mini HC-SR505 4.5-20V:

Category: 3100312645 - Sensor

Free combined shipping for additional orders placed in our new store "DIY SELECT" https://bidorbuy.co.za/seller/4397469

Specifications:

Working Voltage: DC4.5V to 20V
Static Power Consumption: 60
Output Level: High 3.3V, Low 0V
Delay Time: Default 8s + -30% (Adjustable)
The Embargo Time: 0.2 seconds
Trigger Mode: Repeatable trigger
Induction Range: 100 degree cone angle, up to 3 meters
Working Temperature:- -20 to +80 deg
PCB Dimensions: 10 x 23mm
Sensor Lens Dimensions: 10mm (default)

Features:

Automatic Induction: When someone enters the sensing range is input high level, people leaving the induction range is automatically delayed closing high level. Output low level

Repeatable Trigger: If there is human activity in its sensing range, the output will remain high until people leave after the high variable delay lOW (automatically extended sensor module detects the human body after every activity a delay period, and the last time an event is the starting point of the delay time)

Wide Operating Voltage Range: the default operating voltage DC4.5V-20V.

Micropower: quiescent current <50 microamps, especially for battery-powered automatic control products.

Output High Signal: easy docking and all kinds of circuits
