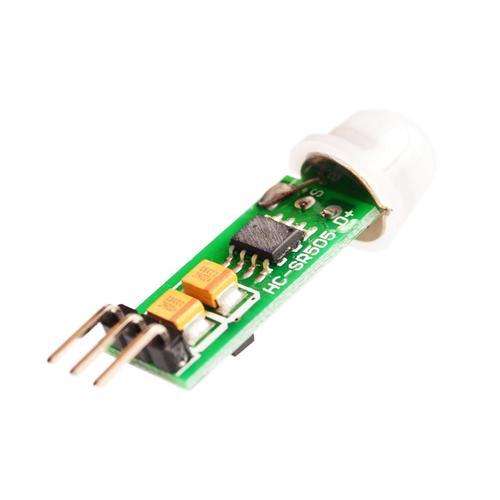

Sensor PIR Module Mini HC-SR505 for Arduino
Sold

Sensor PIR Module Mini HC-SR505 for Arduino

New 6 were available
R45.00
Shipping
R65.00 Standard shipping applies to orders under R100.00, in most areas in South Africa. R35.00 Standard shipping applies to orders over R100.00. Some areas may attract a surcharge surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 2 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Bob Shop ID
247618722

Sensor PIR Module Mini HC-SR505 for Arduino:

 Technical parameters:

Operating Voltage Range: DC4.5-20V

Static current: <60uA

Output level: High 3.3V / Low 0V

Trigger: repeatable trigger (default)

Delay time: Default 8S + -30% (can be customized range of a few tenths - tens of minutes)

PCB Dimensions: 10 * 23mm

Induction angle: <100 degree cone angle

Induction distance: 3 meters

Working temperature: -20 - +80 degrees

Sensor Lens Dimensions: Diameter: 10mm (default)



Typical Applications:

Body induction lamps

Body sensors toys

Security Products

Industrial automation and control

Auto-sensing of electrical equipment

Battery-powered automatic control

Connect - pin to GND of Arduino

Connect + pin to 5V (VCC) of Arduino

Connect Out pin to pin 6 of Arduino
