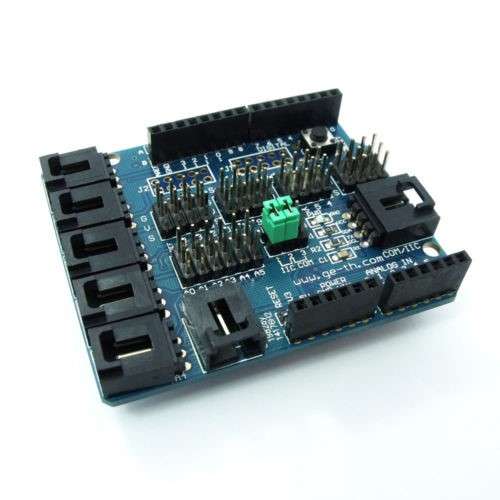

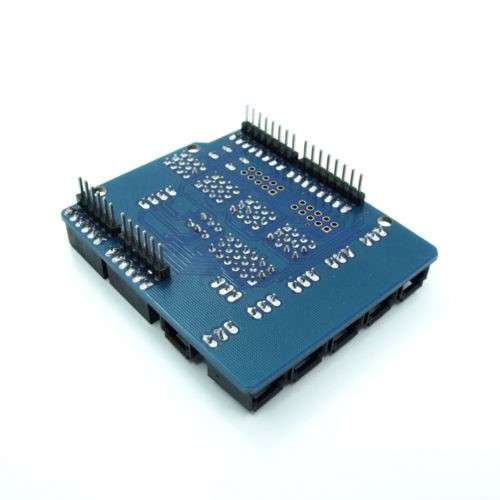

SENSOR SHIELD V4 DIGITAL ANALOG MODULE FOR ARDUINO UNO OR LEONARDO
Product information
This shield enables easier secure connections to sensors, motor drivers or servos and provides a more professional look. Just plug & play.
Specifications
Operating Voltage: 5VDC
Input Voltage (recommended): 7-12VDC
Input Voltage (limit): 6-20VDC
Buckled Analog Port: Handy, solid connections to 6 Analog inputs with VCC and GND
Digital IO port: 13 ports prepared for digital modules or servos
Analog IO Port: 2.54mm grid male pin header connections
Buckled Communication Port: Selectable between I2C and UART
Dimensions: 70(L) x 56(W) mm
Weight: 29g
Package includes
1 x Arduino UNO, Leonardo or MEGA Sensor Shield V4 Digital Analog Module
