Sensor Water Level Float Switch Stainless Steel (Angle) **IN STOCK**

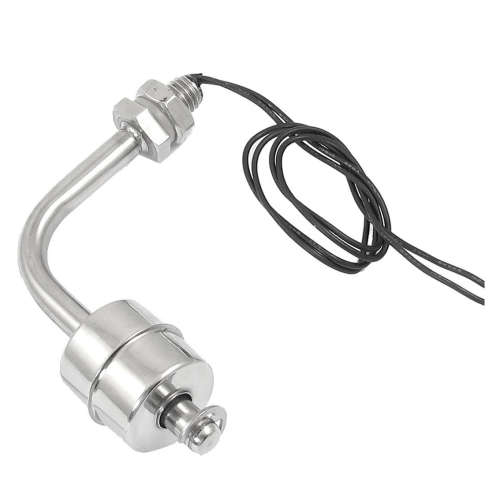

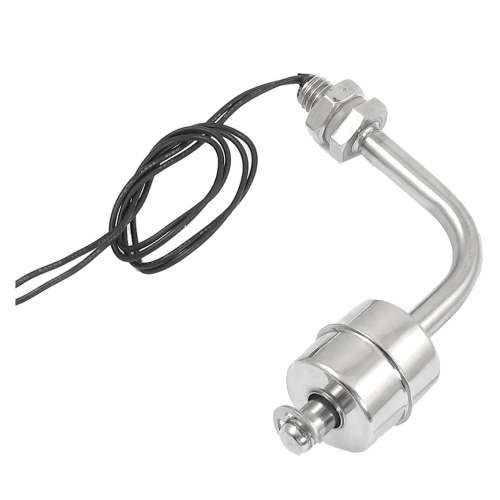

Sensor Float Switch Stainless Steel (Angle):

* When used to control 220V AC or DC Pumps, a relay switch must be used

Specifications:

Color: Silver
Material: Stainless Steel
Max Contact Rating: 10W
Max Switching Voltage: 100V DC
Max Switching Current: 0.5A
Max Carry Current: 1A
Max Contact Resistance: 100mΩ
Max Temperature: -30 Degree Celsius - +125 Degree Celsius
Float Ball Size: 25 x 27mm
Thread Dia: 9.8mm
Hex Nut Size: 19mm
Bottom Clip Dia: 15mm
Body Total Length: 81mm
Body Total Width: 70mm
Cable Length: Approx 300mm

Can be used directly on DC 12V or 24V Pumps with a max current of 1Amp

 Features:

This is a stainless steel Float switch and contains no mercury
Light weight and simple to use with high reliability
Used to Sense the level of liquid within a tank, he switch may Activate a pump, an Indicator, an Alarm or other device
Versatility means that it can be installed either at the top or base of your tank, depending on whether you wish to detect the water's rise or fall
Widely used in Electronic, Electrical, Chemical, Water treatment, Drainage, Level control and Alarm, etc.
