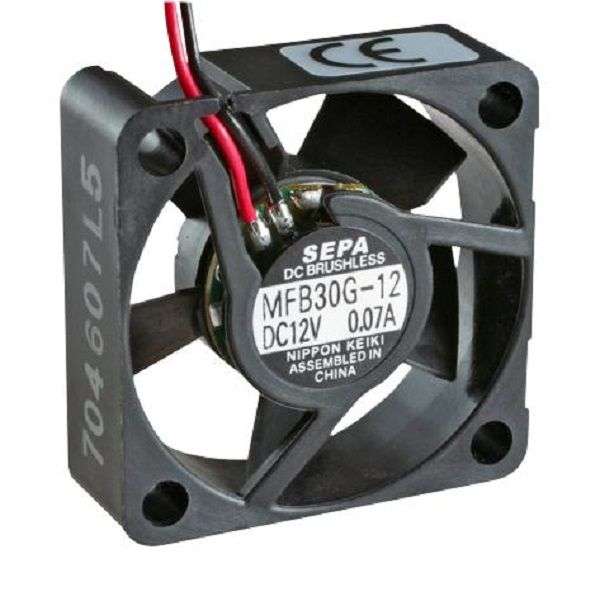

Sepa (MFB30G12) DC Axial Fan, 12 V, Square, 30 mm, 10 mm

DC Axial Fan, 12 V, Square, 30 mm, 10 mm, Ball Bearing, 4.54 CFMProduct InformationSupply Voltage V DC: 12VVoltage Type: DCFan Frame Type: SquareSupply Voltage: 12VDCFan Frame Size: 30mmExternal Depth: 10mmBearing Type: Ball BearingNoise Rating: 23dBAAir Flow - CFM: 4.54CFMFlow Rate - Imperial: 4.54CFMFlow Rate - Metric: 7.7m³/hPower Connection Type: 2 Lead WiresRated Speed: 9100rpmCurrent Rating: 70mAAir Flow - m3/min: 0.129m³/minProduct Range: MFB30GProduct OverviewThe MFB30G12 is a 12VDC high-tech miniature brushless high reliability Axial Fanwith ball bearing and wire leaded power connection. Remarkable air flowperformance despite its small height of 6.5mm only, extremely low power. Thisfan is highly suitable for battery-operated devices. Due to the low rotor weightand precision balancing, it is virtually vibration-free and also insensitive toshock. Its extremely robust and torsionally rigid plastic housing of PBT (ULE54695) with narrow tolerances of special steel, polyester-based PCB (UL E44247)and absolute reliability due to 100% burn-in.Protected electrically against reverse polarity, blocking and thermaloverloading-10 to 70°C Temperature range9100RPM Rotor speed39.8Pa Maximum air pressure
