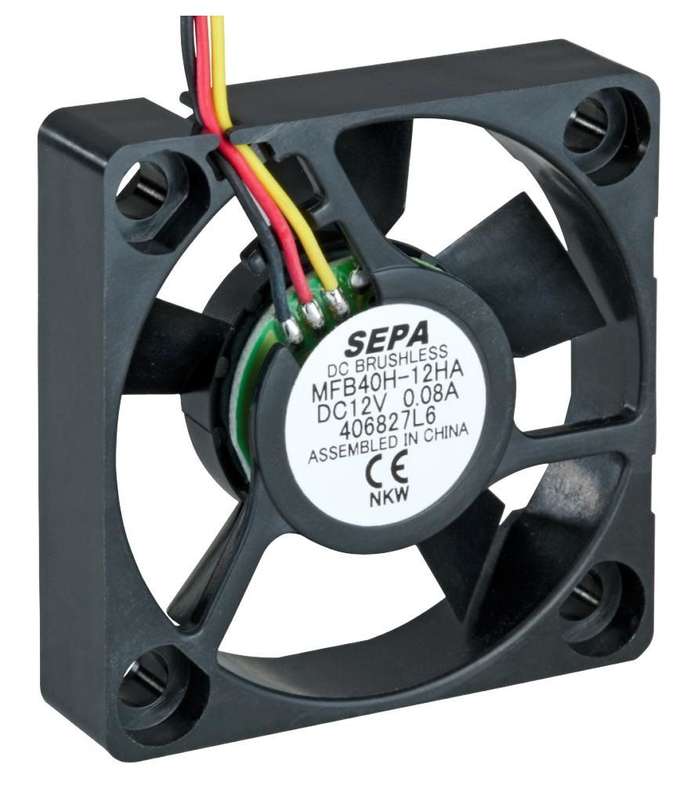

Sepa (MFB40H12A) DC Axial Fan, 12 V, Square, 40 mm, 10 mm

DC Axial Fan, 12 V, Square, 40 mm, 10 mm, Ball Bearing, 6.54 CFMProduct InformationSupply Voltage V DC: 12VVoltage Type: DCFan Frame Type: SquareSupply Voltage: 12VDCFan Frame Size: 40mmExternal Depth: 10mmBearing Type: Ball BearingNoise Rating: 24dBAAir Flow - CFM: 6.54CFMFlow Rate - Imperial: 6.54CFMFlow Rate - Metric: 11.1m³/hPower Connection Type: 3 Lead WiresRated Speed: 5500rpmCurrent Rating: 40mAAir Flow - m3/min: 0.185m³/minProduct Range: MFB40HProduct OverviewThe MFB40H12 is a 12VDC high-tech miniature brushless high reliability Axial Fanwith ball bearing and wire leaded power connection. Remarkable air flowperformance despite its small height of 10mm only, extremely low power. This fanis highly suitable for battery-operated devices. Due to the low rotor weight andprecision balancing, it is virtually vibration-free and also insensitive toshock. Its extremely robust and torsionally rigid plastic housing of PBT (ULE54695) with narrow tolerances of special steel, polyester-based PCB (UL E44247)and absolute reliability due to 100% burn-in.Protected electrically against reverse polarity, blocking and thermaloverloading-40 to 85°C temperature range6100RPM ±20% Rotor speed28Pa Maximum air pressure
