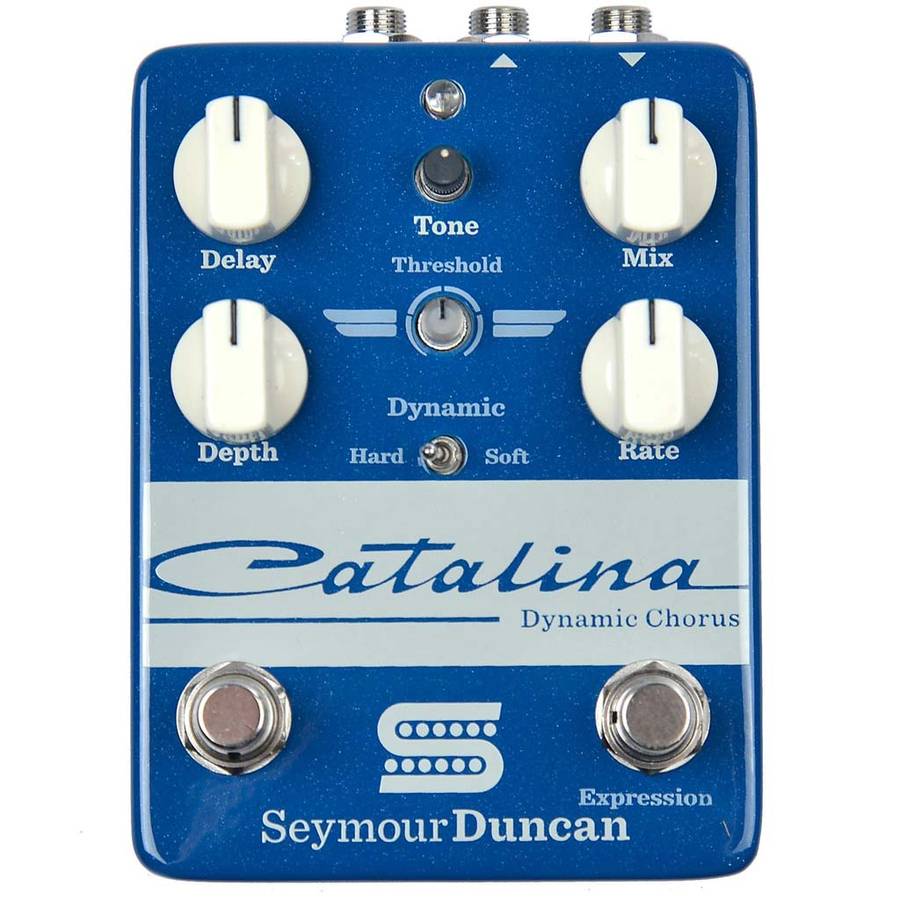

Seymour Duncan Catalina Dynamic Chorus Pedal

Specifications:

Type of circuitry:  Analog Bucket Brigade Devices (BBDs) supported by modern low-noise analog electronics.  Sinusoidal delay modulation and an adjustable envelope follower to control modulation depth.

 Bypass: True bypass Auxiliary

 Functions: Stereo output creates a second channel from the mono input by inverting the wet channel.

Control Ranges:

•          Delay â" Sets time delay from 6 to 60 milliseconds.
•          Tone â" Sets cutoff of passive low pass filter from 0.5kHz to 6kHz.
•          Depth â" Sets the modulation of the delay time from off to 50%. Rate
•          Sets modulation rate from 0.33 - 10 cycles/second. Expression (Footswitch)
•          Engages the envelope follower.

Input Impedance: 1 Meg. Output Impedance: 500 ohms.

 Dry Gain: 0dB. Wet Gain: off to +3dB above the dry signal.

 Frequency response: 5Hz to 50kHz (dry). THD @ 1V Vo: <0.01% (dry). Noise referred to input: ><-98 dBV, 400 Hz to 20 kHz (dry).

Power: External 9 to 18V regulated DC adapter (center negative)

Current consumption: 23mA

Dimensions: 3.5❠x 4.7❠x 1.6â

 Weight: 0.9 lb without battery
