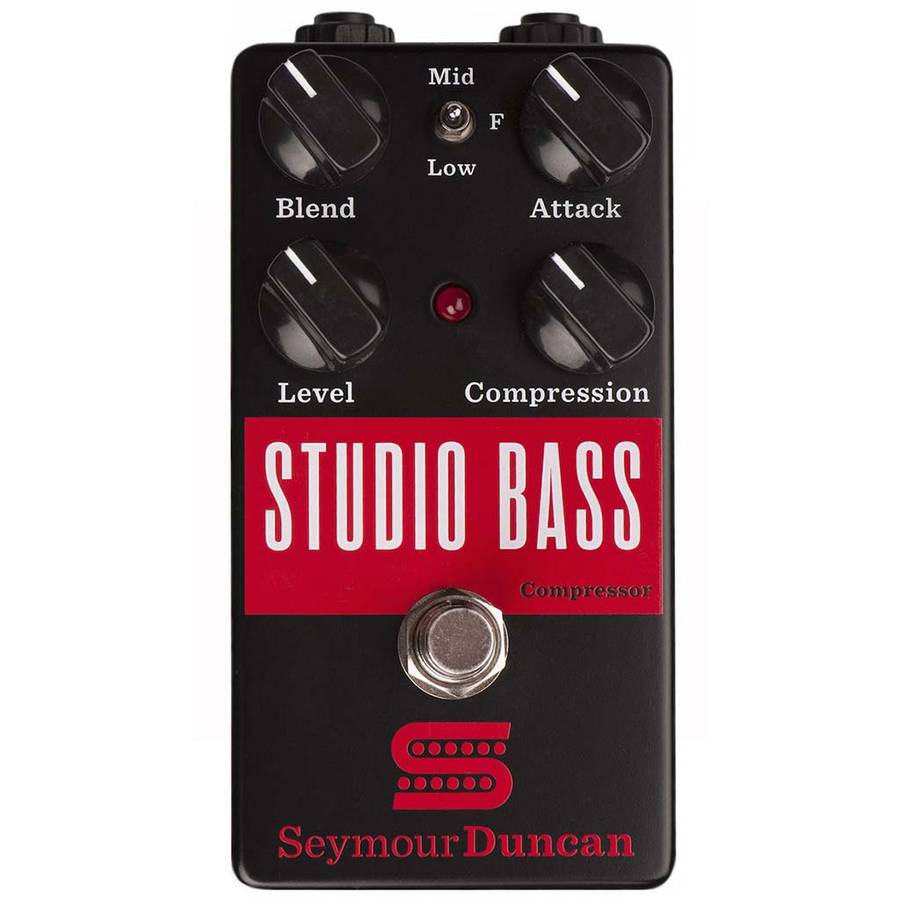

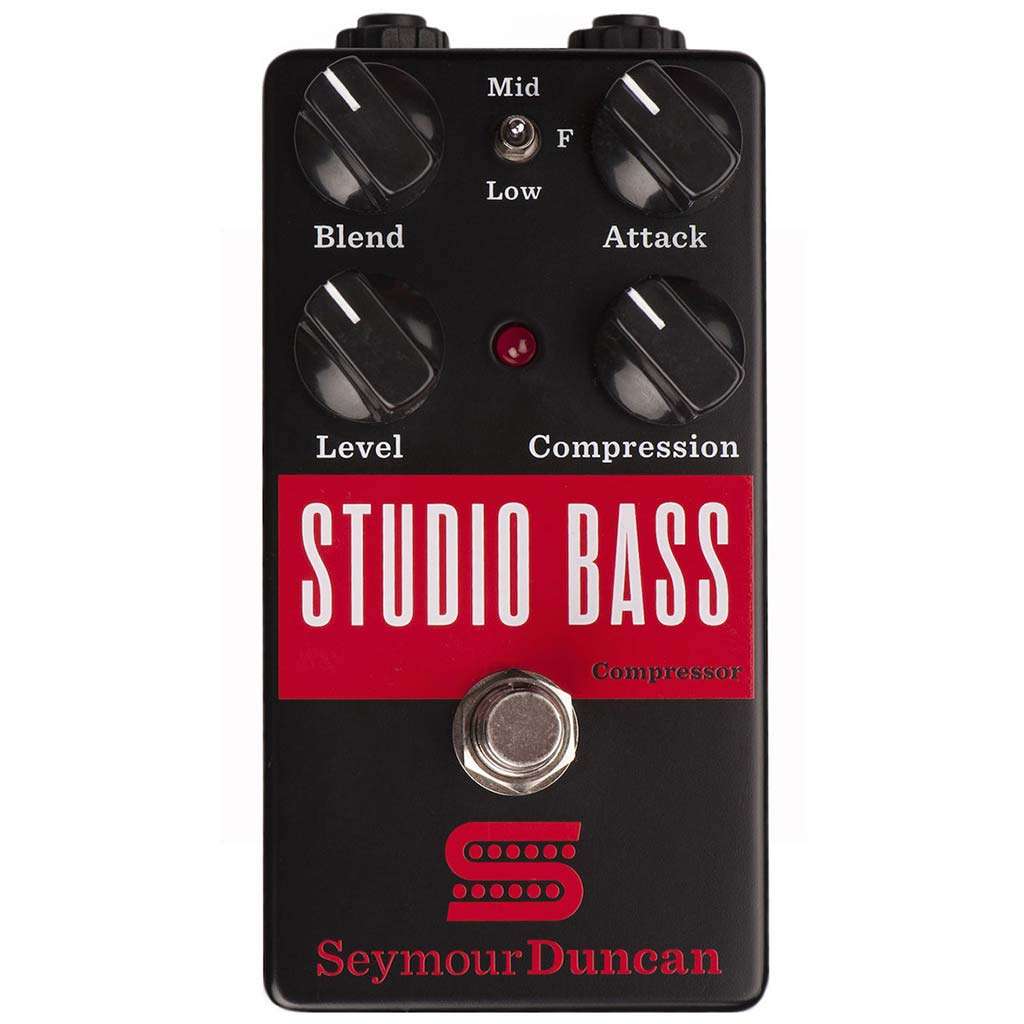

A low noise, low distortion soft-knee compressor/limiter pedal with a very wide-range of available compression ratios and simple, intuitive control of compressor dynamics.
Compression Ratio: Soft-knee, adjustable from 1:1 to > 20:1
Maximum Compressor Gain: +33dB
Attack Speed: Adjustable from 8ms to 27ms
Input Impedance: 1 Megohm
Output Impedance: 2.75K ohms maximum
Maximum Input Level: 3 Vrms
Distortion: < 0.3% at 300mV RMS output at 1 kHz
Noise referred to Input: -110dBV, 400 Hz, 20 kHz, input shorted
Compressor Type: Voltage Controlled Amplifier (VCA)
Power: 9V battery or 9V to 18 Vdc regulated adapter, center pin negative polarity Current Consumption: 21mA operate, 19mA bypass
Dimensions: 2.60" wide X 5.0" long X 1.45" high
