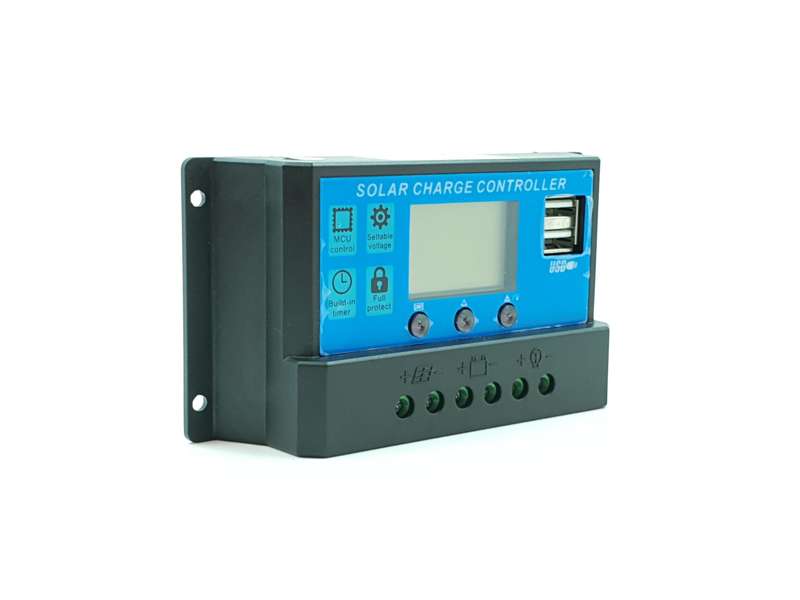

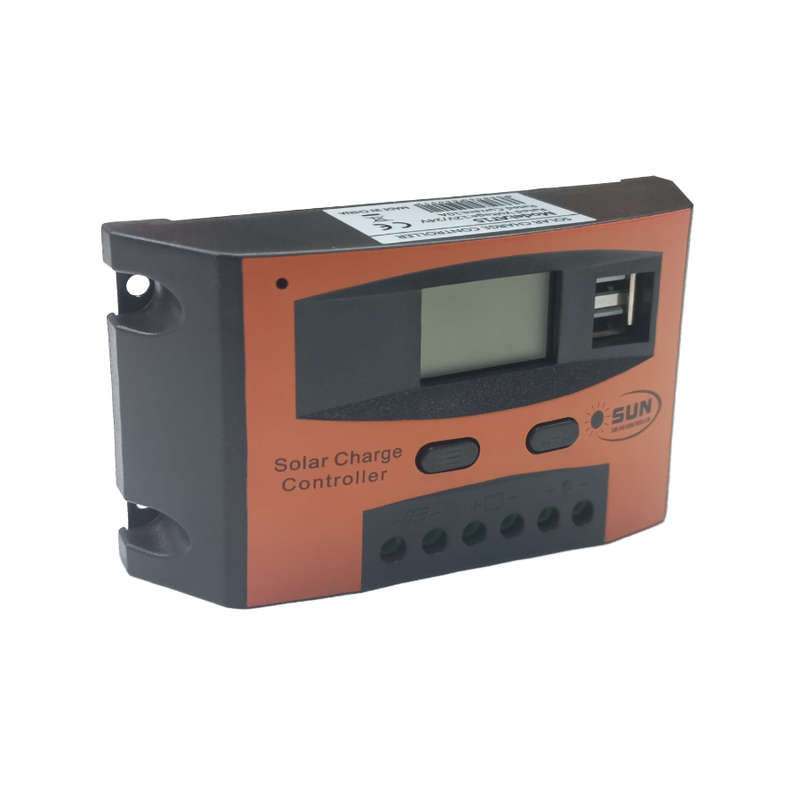

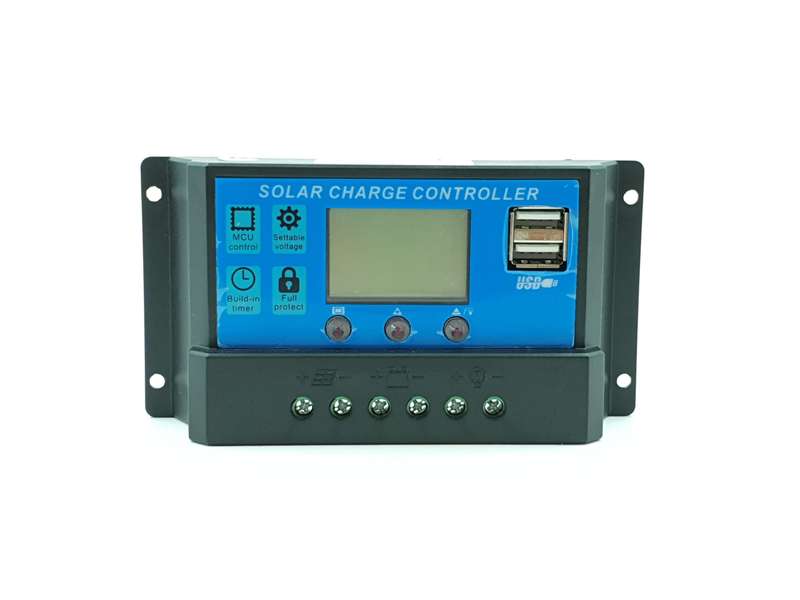

12V-24V Auto LCD Display 20A Solar Charge controller. This solar lighting system charge controller is designed for off-grid solar photo-voltaic systems, such as home solar system, solar traffic system, solar CCTV system, Wild automatic detection equipment, etc. The Pulse Width Modulation battery charging can greatly increase the lifetime of battery.
USB Ports | YES, charge directly from the solar panel |
LCD Display | YES |
Protection | Fuse Protection |
MAX Load | 20 Amps |
Input | 12v or 24v |
Safety | Charge your batteries safely |
Operation | 12v | 24v |
Operation Switch | Automatic | |
Model | SP-CMY-2420 | |
Max Charge Current | 20 Amps | |
Max Discharge Current | 20 Amps | |
Max Solar Power Input | < 50V | |
Rated Voltage | 12V | 24V |
Stop Charge Voltage | 14.7V | 29.4V |
Low Voltage Recovery | 12.2V | 24.4V |
Low Voltage Protection | 10.5V | 21.0V |
USB Output Voltage / Current | 5V / 2A | |
Terminals | +/- Solar | +/- Battery | +/- Load | |
USB Ports | 2 | |
Protection Fuse | 30A (Vehicle Type) | |
Operation Temp | -20°C ~ 60°C | |
