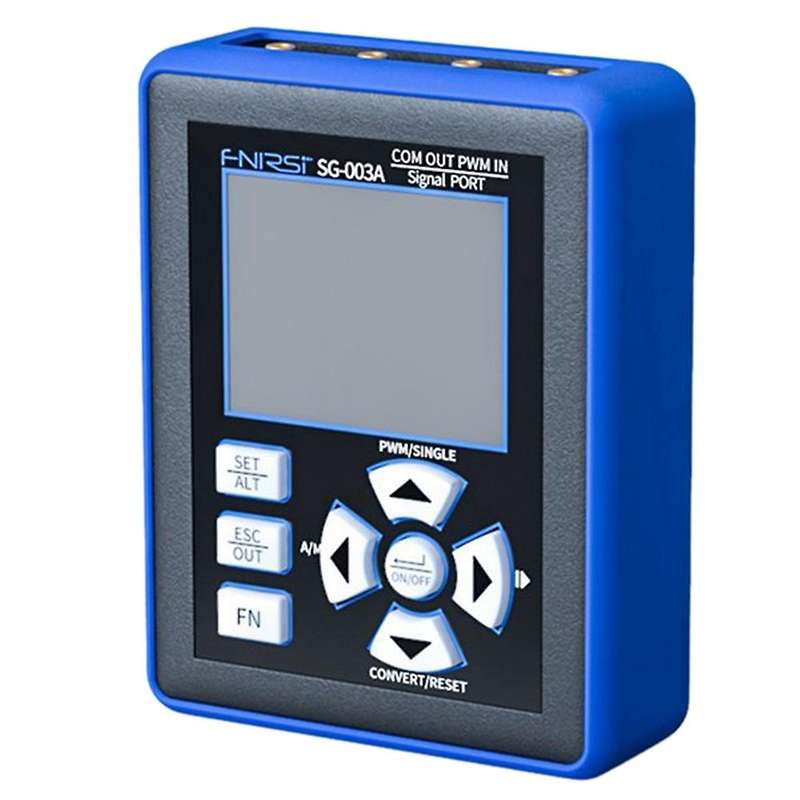

Sg-003a 0-10v Adjustable Current Voltage Simulator 4-20ma-us Plug

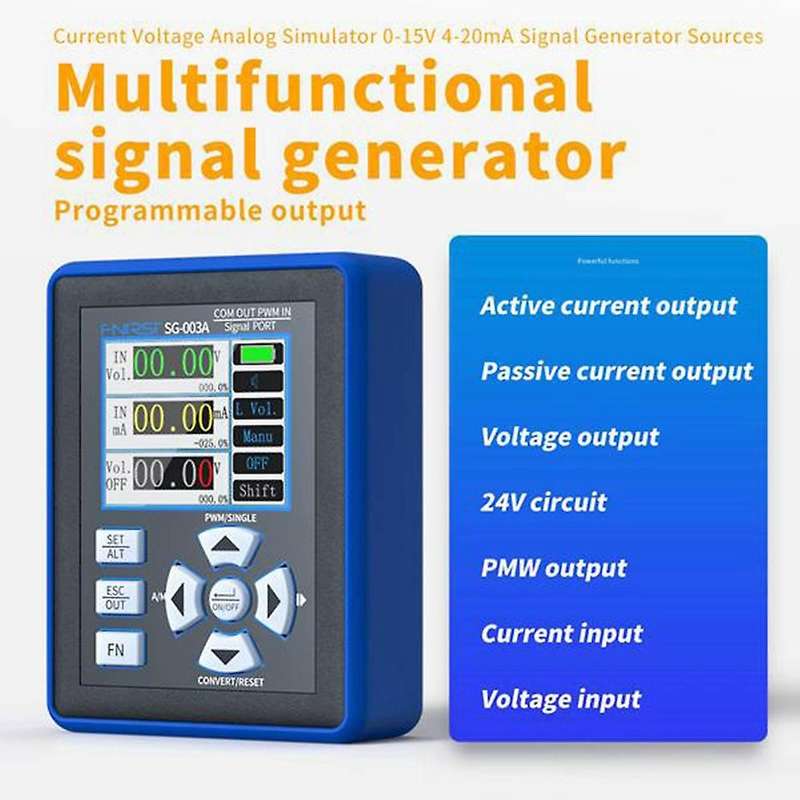

Expect with the conventional signal input and output functions. Voltage and current have automatic output function, it can choose a single rise, three modes of single drop and cycle.With input to output conversion, voltage conversion active current mode, passive mode and current conversion voltage mode. The output has a custom function, the upper and lower output limits can be set arbitrarily.It is powered by a large-capacity lithium battery and is charged with a Type-c interface (5V).The capacity of the lithium battery is 3000mHA,Super long working hoursVoltage input diagram,current input diagram,the frame rate is 10 frames. PWM output can set frequency and duty cycle respectively. Real-time curve: Real-time observation of changes in voltage and currentThe high-definition TFT color LCD screen makes the reading more eye-catching.The resolution is 240x320.Low power consumption,Maximum power consumption: 0.32WActive current output: range: 0~24mA; resolution: 0.01 mA; maximum load: 750; Precision: (0.1%+0.005)Passive current output: range: 0-24 mA; resolution: 0.01 mA; external power supply up to 30V; Precision: (0.1%+0.005)Voltage output: range: 0-12 V; resolution: 0.01v; maximum current 30mA; Precision: (0.1%+0.005)24V voltage output: drive current: 24mA; resolution: 0.01 mA; Precision: (0.1%+0.005)Current input measurement: range: 0-24 mA; resolution: 0.01 mA; input impedance:100;Precision:(0.1%+0.05)Voltage input measurement: range: 0-30 V; resolution: 0.01 V; input impedance: 2M; Precision: (0.1%+0.05)PWM output (frequency): Range: 0-20K, 45K, 90K, 180K; Resolution: 1Hz; Accuracy: 2%PWM output (frequency):Range: 0-20K, 45K, 90K, 180K; Resolution: 1%Accuracy: 2%A sngle 3.7V 3000mAh lithium battery power supply; Standby time is 26 houPlug Type: US Plug, it applies to Canada, India, Mexico, Thailand, Taiwan, the United States, the Philippines and so on.size:14x9x4CMMaterial:ABScolour:bluePackage Contents:1 * SG-003A multifunctional signal generator calibrator1 * Black storage bag4 * test clip1 * SG-003A silicone protective sleeve1 * USB charging cable1 * US PLUGOnly the above package content, other products are not included.Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
