SG112G1-RE SG50A 600V Anderson Connecting Puller Solar Connector Forklift Charging Plug

TBD0604283101

1. Shell material: PC UL94V0
2. Contact material: silver-plated copper (terminals)
3. Process: injection molding
4. Cable introduction angle: 180 degrees
5. Flame retardant grade: V0
6. Application field: electrician and electrician
7. Wire specification: 3.5mm-5.6mm

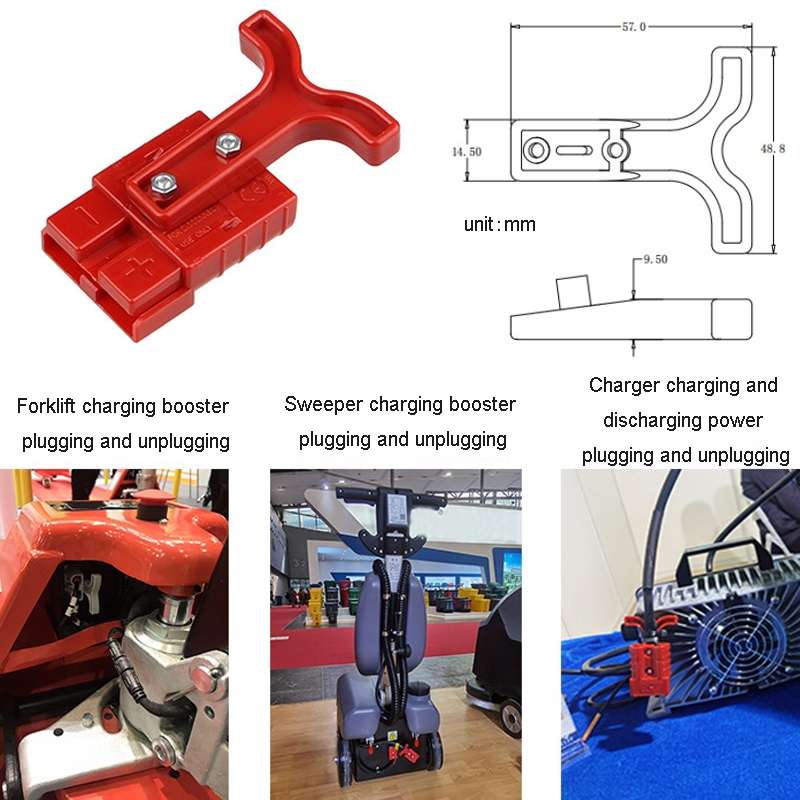

8. Hood size: 5.73 x 4.88 x 1.52 cm

Features:
1. 50A plug T-puller with dovetail groove on the side of the housing can be assembled into various types of multi-pole connectors
2. Terminals are silver-plated copper, good conductivity, easy and quick installation, free splicing, corrosion-resistant shell to protect the surface of the terminals from damage
3. Interchangeable, no male and female shells, multi-color shells are used to distinguish the interface voltage, to prevent damage to the connector by wrong insertion
4. Anderson energy storage connector bipolar plug SG120A 600V fittings, to help plug the plug plug, convenient, labor-saving, safe and quick, six-side nut groove design, convenient in the nut into the groove, twist the screw can be installed on the plug handles
5. Wide range of applications, Anderson plug T-handle used in UPS chargers, lithium batteries, lead-acid batteries, sweepers, scrubbers, mobile power, forklifts, forklifts, sweepers, electrical vehicles and other new energy, high power and high-current equipment used in Anderson plug, T-handle to assist plugging and unplugging charging and discharging
