Shaft Length 23mm Quartz Pendulum Clock Movement DIY Movement Kits

1. Wide range of applications: your own DIY clock or for repairing and replacing bad wall clocks. Suitable for cross-stitch, three-dimensional embroidery, craft clocks, frameless paintings, floor clocks, etc.

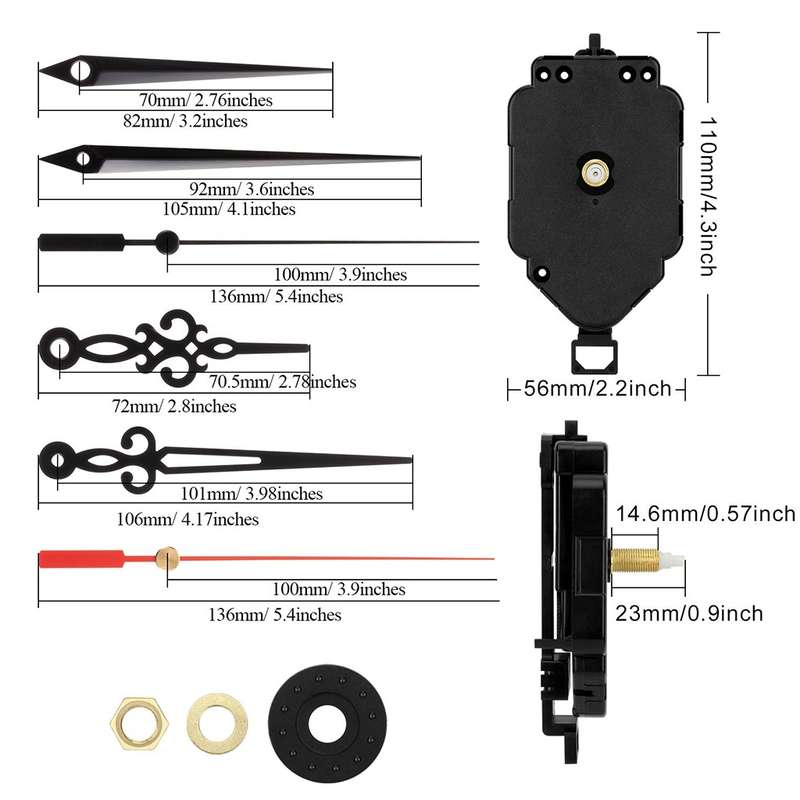

2. Movement model: HR1688-23 swing movement
3. Movement size: 110 x 56mm
4. Movement shaft length: total shaft length 23mm, thread height 14.6mm, suitable for through about 11mm thick panel
5. Battery: use one AA battery (shipped without battery)
6. Pointer model: HR9312+903
-Size: measured from the center hole, hour hand 70mm, minute hand 92mm, second hand 100mm, suitable for panels with a diameter of 22cm or more
-Material: metal
-Color: black hour, minute and second hands
7. Hand model: HR9611-1+903
-Size: measured from the center hole, hour hand 70.5mm, minute hand 101mm, second hand 100mm, for panels with a diameter of 22cm or more
-Material: metal
-Color: black hour and minute hands + gold-tipped red seconds hand

Packing list:
1 x oscillating movement
2 x hour hand
2 x minute hand
2 x second hand
1 x nut
1 x Washer
1 x rubber pad


TBD06031039
