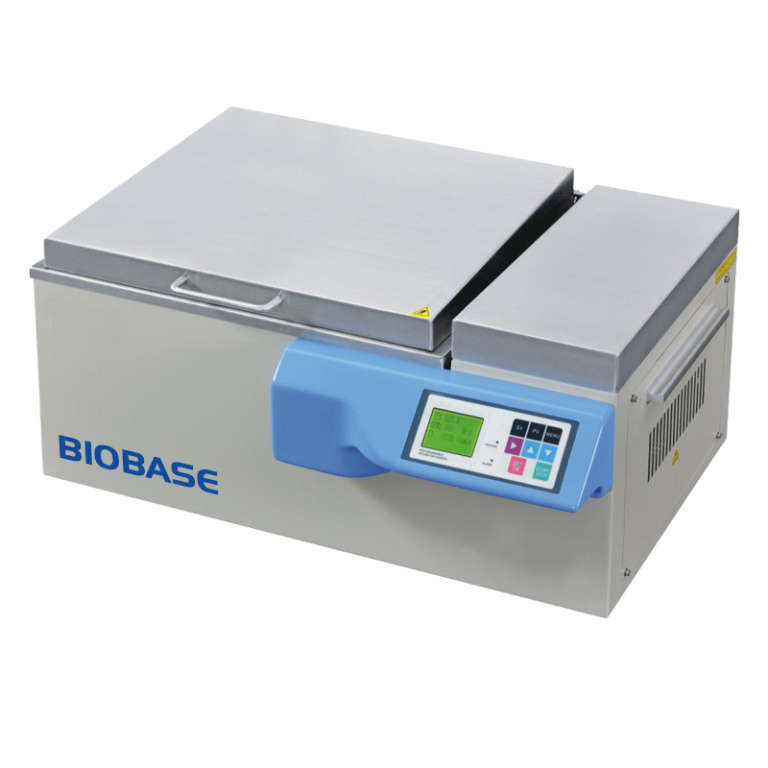

Shaking Water Bath SWB-110X48
Lead Time: 4-6 weeks
Shaking Water Bath SWB-110X48
Shaking Water Bath, or water bath shakers, are ideal for mixing or agitating samples while immersed in water at a defined and controlled temperature.
- In contrast to air-based incubators, water baths are able to transfer heat more rapidly and efficiently.
Features:
1. Power off recovery function.
2. Audio and visual alarm.
3. Stainless steel lid, prevent heat loss and evaporation.
4. Double over-temperature protection design. Anti dry-out function.
Technical Parameters:
| Model | SWB-110X12 (table-top) | SWB-110X24(table-top) | SWB-110X48(floor-type) |
| Control | PID |
| Display | LCD |
| Shaking Mode | Reciprocating shaking |
| Drive Mode | Balancing drive |
| Shaking Speed | 20~200rpm |
| Shaking Accuracy | ±1 rpm |
| Vibration Range | 25mm |
| Standard Capacity | Universal spring clamp | 250ml *24 | 250ml *48 |
| Max. Capacity | 250ml *12 or 500ml*8 or 1000ml*6 | 250ml *24 or 500ml*15 or 1000ml*8 | 250ml *48 or 500ml*30 or 1000ml*20 |
| Shaking Plate Size | 430*320mm | 590*390mm | 780*586mm |
| Spring Shaking Plate Size | 430*320*60mm | 590*390*80mm | 780*586*80mm |
| Timing Range | 0~500 hours |
| Temp. Range | RT+5~99.9 |
| Temp. Accuracy | ±0.2 |
| Temp. Uniformity | ±0.1 |
| External Material | 316 stainless steel |
| Safety Function | Audio and visual alarm for over-temperature; Alarm for over-speed; Detached over-temperature protector; Shutdown protection for door opening; Leakage or overcurrent protection. |
| Consumption | 2000W | 2200W | 4000W |
| Power Supply | AC110V/220V±10%,50/60HZ |
| Internal Size(W*D*H) (mm) | 510*380*240 | 700*455*260 | 940*660*275 |
| External Size(W*D*H) (mm) | 760*420*370 | 945*495*408 | 1240*700*760 |
| Package Size(W*D*H) (mm) | 810*470*470 | 995*545*508 | 1740*750*860 |
| Gross Weight(kg) | 65 | 120 | 160 |
