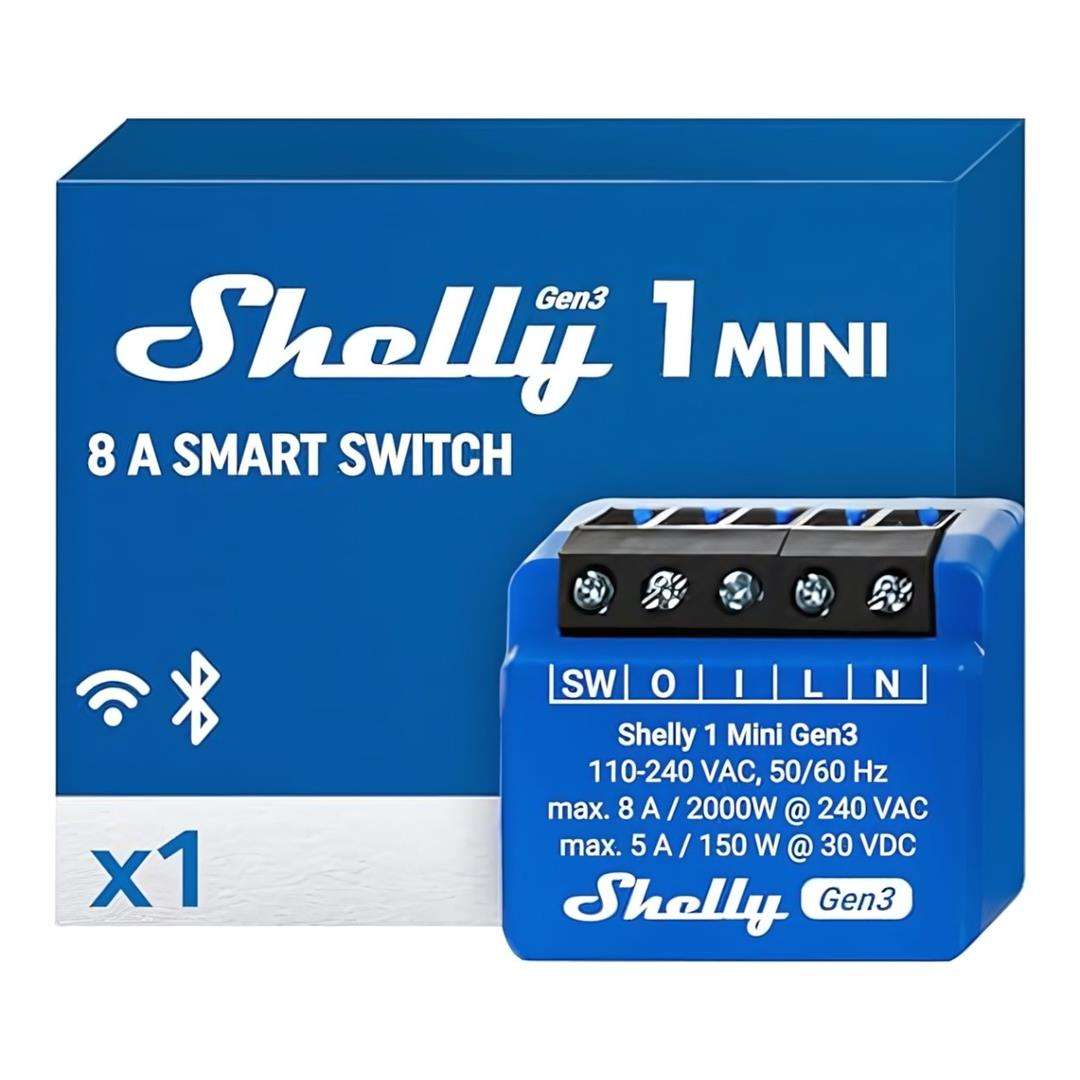

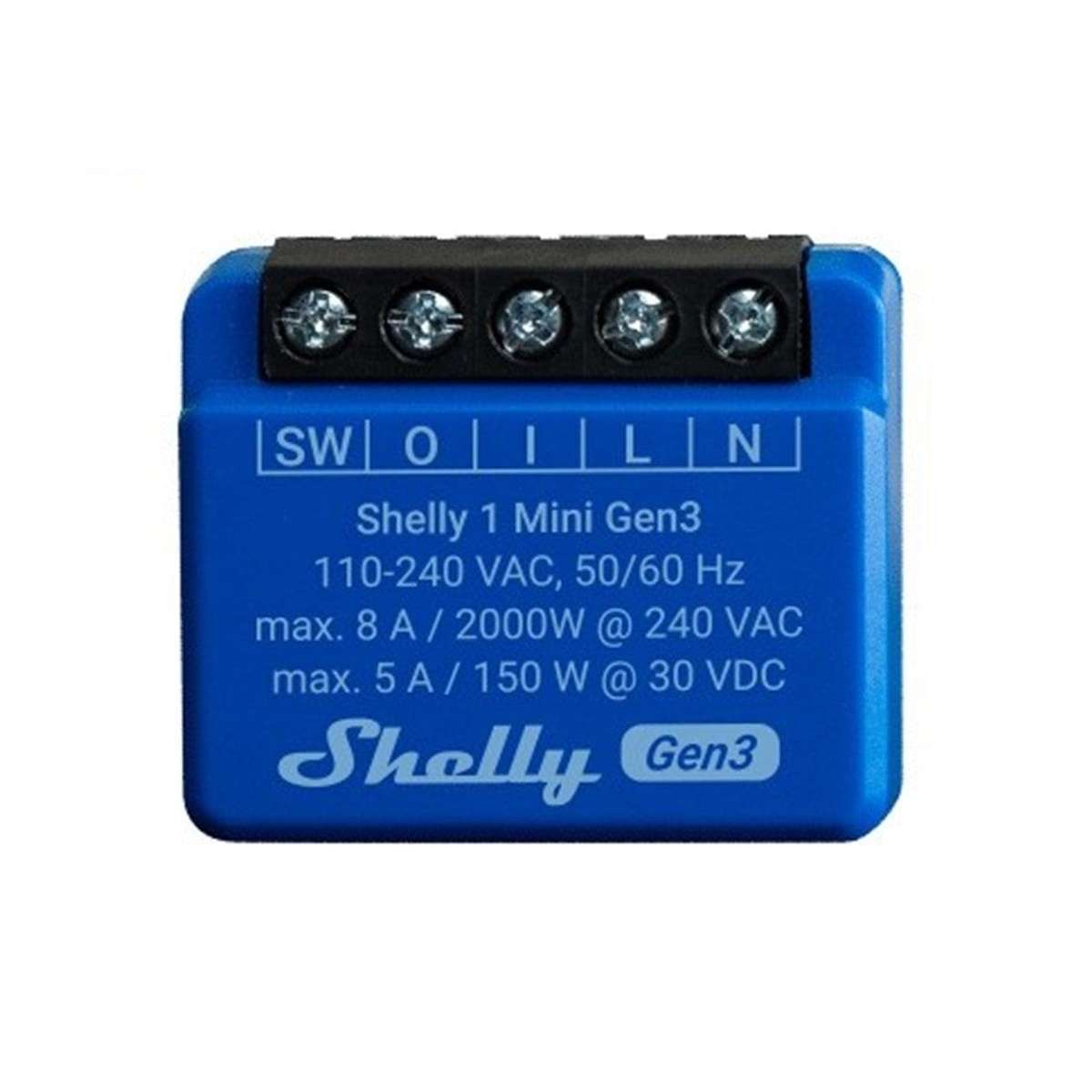

Shelly 1 Mini 8A Wi-Fi Smart Switch
Wi-Fi-operated smart switch, 1 channel 8 A
The smallest relay switch in the world for smart control. Automate your lights, garage door, irrigation system, or other small electrical appliances in less than 10 minutes and control them from anywhere. Small enough to fit behind any wall switch or socket, Shelly 1 Mini Gen3 can be retrofitted and is highly compatible with your existing smart ecosystem.
- Equipped with a new processor & increased flash memory — ESP Shelly
- Improved durability of terminals
- Supports up to 8 A at 240 VAC and 5 A at 30 VDC
- Dry contacts (potential-free) — option for contactor control
- Wi-Fi range extender & Bluetooth gateway
- No hub required! Easy control through the Shelly Smart Control app, most platforms and protocols, as well as voice assistants. Use it with Alexa, Home Assistant or your preferred automation system
- Supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and custom certificates
- Supports KNXnet / IP communication
Wi-Fi Operated
Connect Shelly 1 Mini Gen3 to your Wi-Fi network. No HUB required!
Bluetooth
Quick inclusion via Bluetooth or use it as a Bluetooth gateway.
Dry Contacts
Use it to control a wide range of devices and appliances.
Smart Schedules
Set custom schedules based on your daily agenda or follow the sunrise/sunset and control your lighting accordingly.
Smart Scenes
Set custom scenes by combining Shelly 1 Mini Gen3 with your other Shelly devices.
Scripting
Shelly 1 Mini Gen3 fully supports mjS scripting, allowing you to create custom features and functionalities.
Specifications
- Size (HxWxD): 29x35x16 ±0.5 mm
- Weight: 19 ±1 g
- Mounting: Wall box
- Screw terminals max torque: 0.4 Nm
- Conductor cross section: 0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules)
- Conductor stripped length: 6 to 7 mm
- Shell material: Plastic
- Color: Blue
ENVIRONMENTAL
- Ambient temperature: -20 °C to 40 °C / -5 °F to 105 °F
- Humidity: 30 % to 70 % RH
- Max. altitude: 2000 m / 6562 ft
ELECTRICAL
- Power supply: 110 - 240 VAC
- Relay: Dry, NO contact, 1-pole, µ contact
- External protection: 10 A, tripping characteristic B or C, 6 kA interrupting rating, Energy limiting class 3
- Power consumption: < 1.2 W
Output circuits ratings
- Max switching voltage AC: 240 V
- Max switching voltage DC: 30 V
- Max switching current AC: 8A
- Max switching current DC: 5A
- Max switching power AC: 2000 W
- Max switching power DC: 150 W
- Power measurement: No
- Voltage protection / Cutoff: No
- Current protection / Cutoff: No
- Max power protection / Cutoff: No
- RADIRF band: 2400 - 2495 MHz
- Max. RF power: <20 dBm
- Wi-Fi protocol: 802.11 b/g/n
- Wi-Fi Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
- Bluetooth Protocol: 4,2
- Bluetooth Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
MCU
- CPU: ESP-Shelly-C38F
- Flash: 8 MB
FIRMWARE CAPABILITIES
- Schedules: 20
- Webhooks (URL actions): 20 with 5 URLs per hook
- MQTT: Yes
- UDP: Yes
- Scripting: Yes
