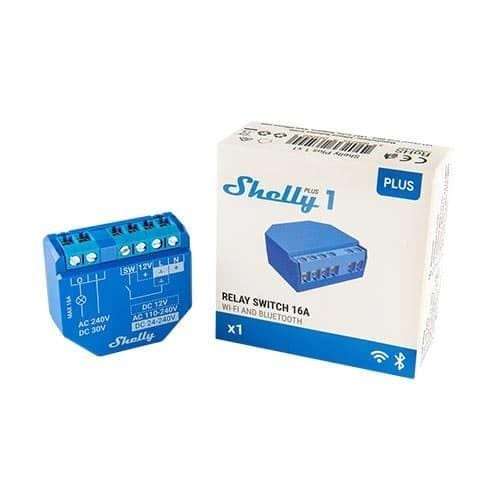

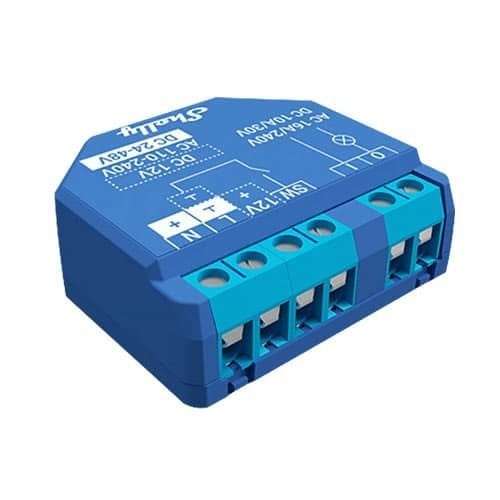

Shelly Plus 1 16A Wi-Fi Relay Switch
WiFi-operated smart switch, 1 channel 16A
Control a wide range of home appliances and office equipment (lights, power lines, security systems, heaters, radiators, sockets, LED strips, etc.) from anywhere.
- Dry contacts
- Extremely fast processor — ESP32, Improved API interface
- Enhanced safety
- Enhanced security, MQTT and WSS support, TLS and custom certificates support
- Designed to fit in most standard electrical boxes and switches
- Easy control through the Shelly app, various protocols, and platforms, as well as voice assistants
Wi-Fi Operated
Connect Shelly Plus 1 to your Wi-Fi network. No HUB required!
Bluetooth
Add devices quickly and easily via Bluetooth connection, using Shelly Cloud App.
Dry contacts
Use it to control a wide range of devices and appliances.
Low and high voltage support
Use a wide range of output voltage levels. Supports low voltages.
Smart schedules
Set custom schedules based on your daily agenda or follow the sunrise/sunset and control your lighting accordingly.
Smart scenes
Set custom scenes by combining Shelly Plus 1 with your other Shelly devices.
Specifications
- Size (HxWxD): 37x42x16 ±0.5 mm
- Weight: 26 g
- Mounting: Wall console
- Screw terminals max torque: 0.4 Nm / 3.5 lbin
- Conductor cross section: 0.5 to 1.5 mm² / 20 to 16 AWG
- Conductor stripped length: 5 to 6 mm / 0.20 to 0.24 in
- Shell material: Plastic
- Color: Blue
Environmental
- Ambient temperature: -20 °C to 40 °C / -5 °F to 105 °F
- Humidity: 30 % to 70 % RH
- Max. altitude: 2000 m / 6562 ft
- Power supply: 110 - 240 VAC / 24 - 48 VDC / 12 VDC ±10%
- Power consumption: < 1.2 W
Output Circuits Ratings
- Max switching voltage AC: 240 V
- Max switching voltage DC: 30 V
- Max switching current AC: 16 A
- Max switching current DC: 10 A
- Temperature sensor: Yes
Radio
- RF band: 2400 - 2495 MHz
- Max. RF power: <20 dBm
- Wi-Fi protocol: 802.11 b/g/n
- Wi-Fi Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
- Bluetooth Protocol: 4.2Bluetooth Range:Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
MCU
Firmware Capabilities
- Schedules: 20
- Webhooks (URL actions): 20 with 5 URLs per hook
- Scripting: mJS
- MQTT: Yes
- CoAP: No
