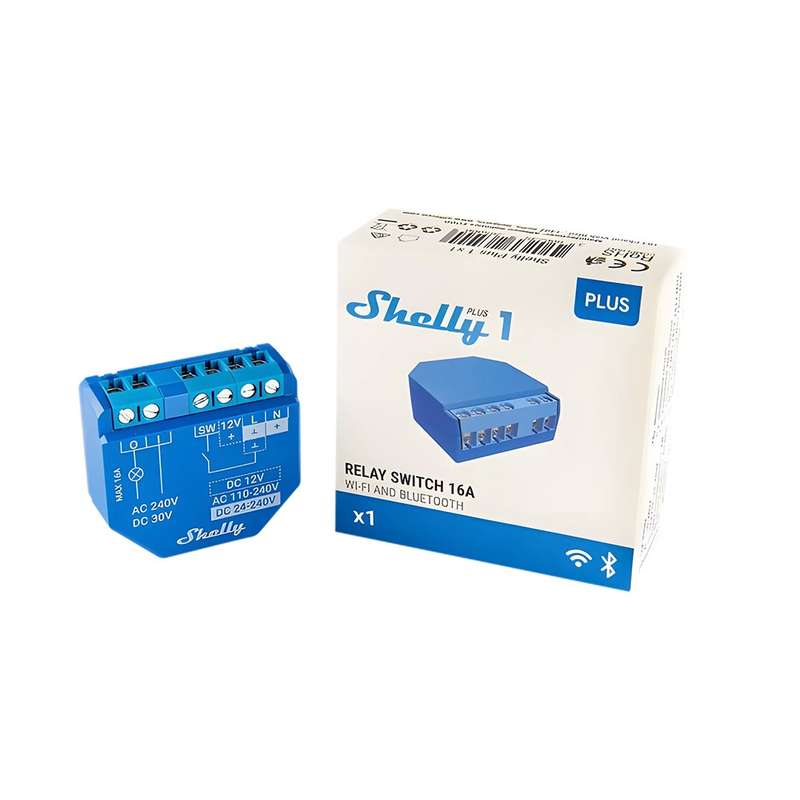

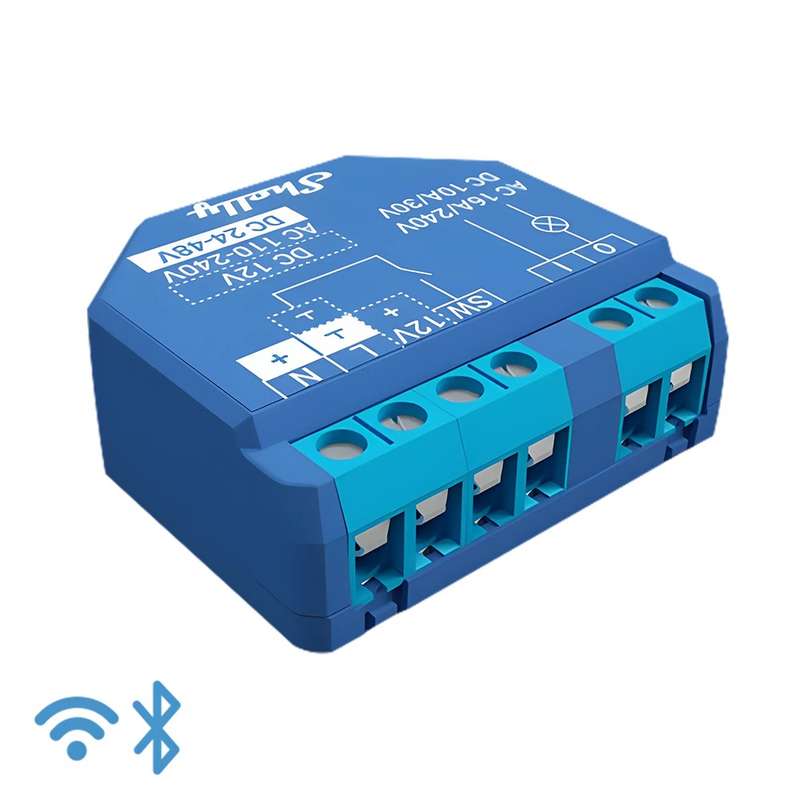

SHELLY PLUS 1 WIFI RELAY (SINGLE PACK)

Control a wide range of home appliances and office equipment (lights, power lines, security systems, heaters, radiators, sockets, LED strips, etc.) from anywhere.

Features

Dry contacts
Extremely fast processor — ESP32, Improved API interface
Enhanced safety
Enhanced security - MQTT and WSS support, TLS and custom certificates support

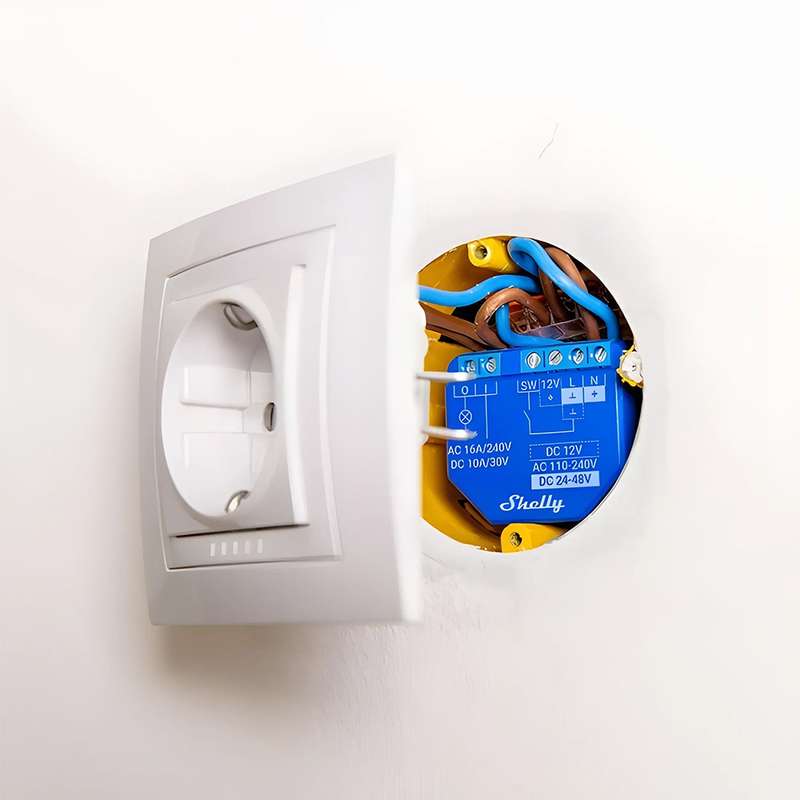

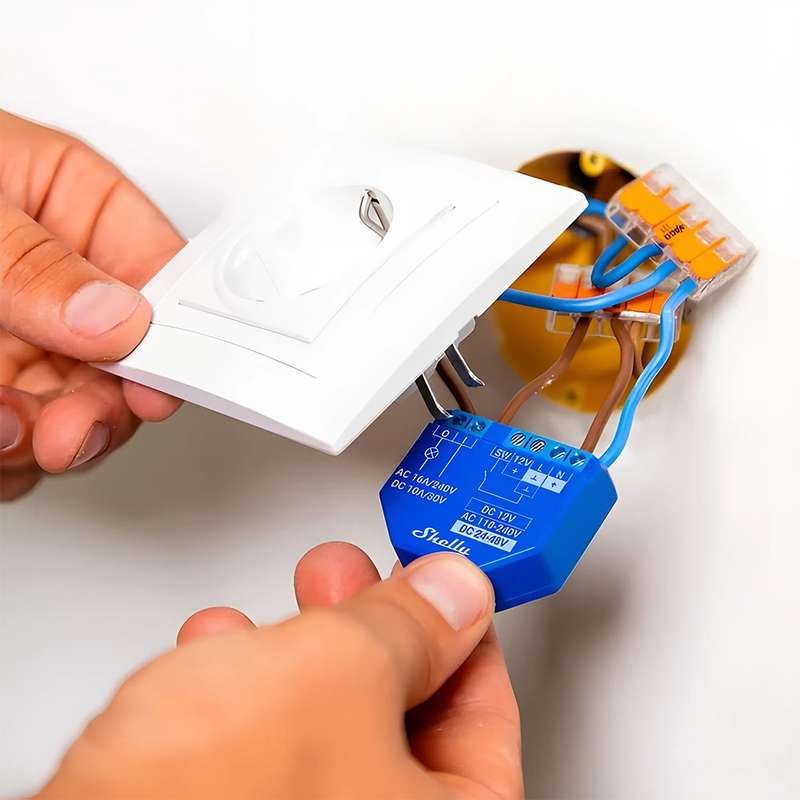

Designed to fit in most standard electrical boxes and switches
Easy control through the Shelly app, various protocols, and platforms, as well as voice assistants

Specifications

PHYSICAL

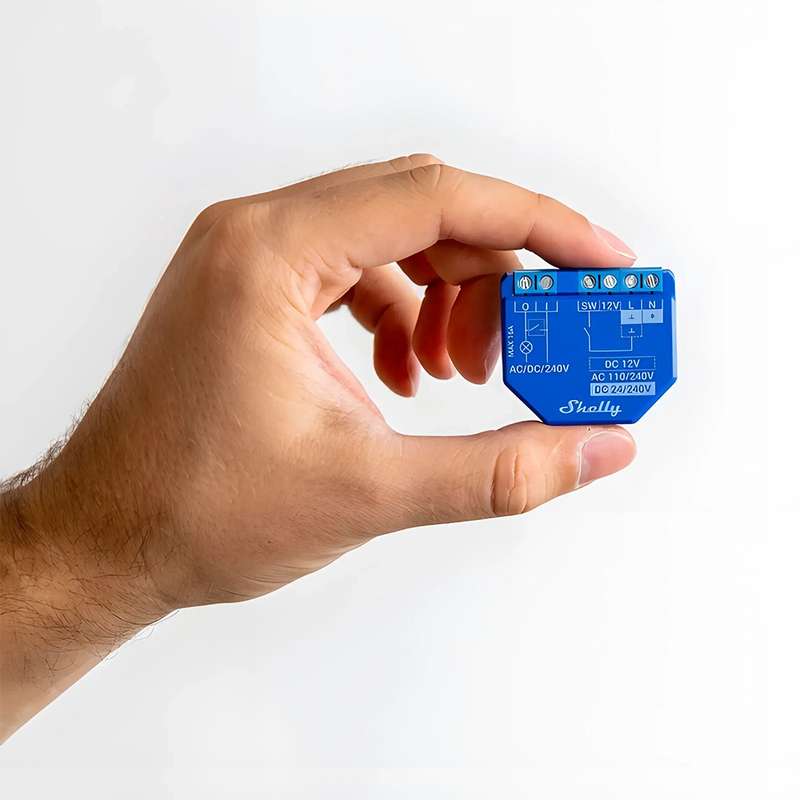

Size (HxWxD): 37x42x16 ±0.5 mm / 1.46x1.65x0.63 ±0.02 in
Weight: 26 g
Mounting: Wall Console
Screw terminals max torque: 0.4 Nm
Conductor cross-section: 0.5 to 1.5 mm² / 20 to 16 AWG
Conductor stripped length: 5 to 6 mm / 0.20 to 0.24 in
Shell material: Plastic
Color: Blue

ENVIRONMENTAL

Ambient temperature: -20 °C to 40 °C / -5 °F to 105 °F
Humidity: 30 % to 70 % RH
Max. altitude: 2000 m

ELECTRICAL

Power supply: 110 - 240 VAC / 24 - 48 VDC / 12 VDC ±10%
Power consumption: < 1.2 W

OUTPUT CIRCUITS RATINGS

Max switching voltage AC: 240 V
Max switching voltage DC: 30 V
Max switching current AC: 16 A
Max switching current DC: 10 A

SENSORS, METERS

Temperature sensor: Yes

RADIO

RF band: 2400 - 2495 MHz
Max. RF power: <20 dBm
Wi-Fi protocol: 802.11 b/g/n
Wi-Fi Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depending on local conditions)
Bluetooth Protocol: 4.2
Bluetooth Range: Up to 10 m indoors and 30 m outdoors (Depending on local conditions)

MCU

CPU: ESP32
Flash: 4 MB

FIRMWARE CAPABILITIES

Schedules: 20
Webhooks (URL actions): 20 with 5 URLs per hook
Scripting: mJS
MQTT: Yes
CoAP: No
