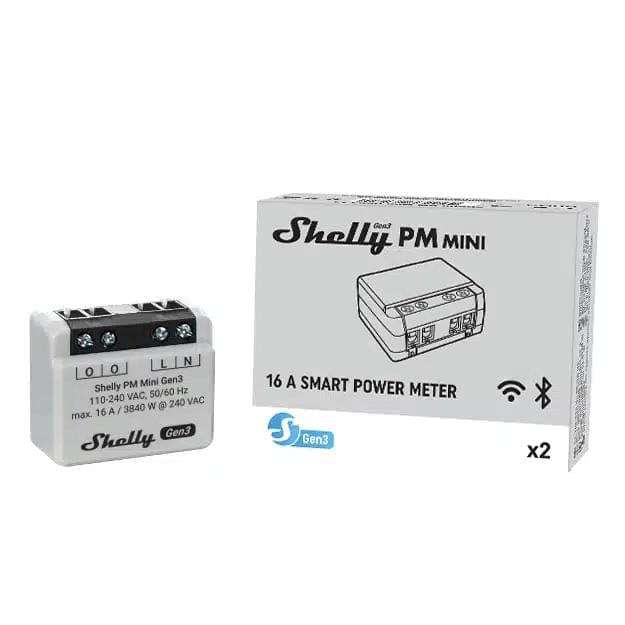

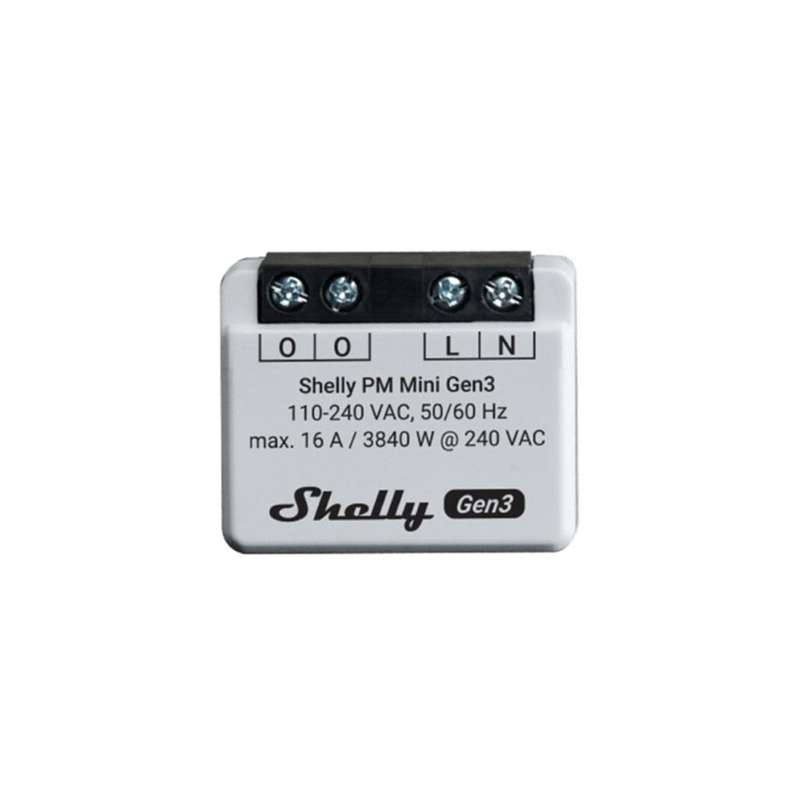

Shelly PM Mini 1-Channel 16A Wi-Fi Power Meter
Wi-Fi-operated smart power meter, 1 channel 16 A
The smallest power meter in the world for precise power monitoring. Automate your lights or electrical appliances in less than 10 minutes and monitor their power consumption from anywhere. Small enough to fit behind any wall switch or socket, Shelly PM Mini Gen3 is retrofit and highly compatible with your existing smart ecosystem.
- Equipped with a new processor & increased flash memory — ESP Shelly
- Improved durability of terminals
- Supports up to 16 A at 240 VAC
- Precise and real-time power metering with free cloud data storage for analysis and energy usage optimization.
- Wi-Fi range extender & Bluetooth gateway
- No hub required! Easy control through the Shelly Smart Control app, most platforms and protocols, as well as voice assistants. Use it Home Assistant or your preferred automation platform
- Supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and custom certificates
*This is only a power meter. There is no relay inside.
Wi-Fi Operated
Connect Shelly PM Mini Gen3 to your Wi-Fi network. No HUB required!
Bluetooth
Quick inclusion via Bluetooth or use it as a Bluetooth gateway.
Power Monitoring
Provides precise metering of power consumption and helps you save.
Smart Schedules
Set custom schedules based on your daily agenda or follow the sunrise/sunset and control your lighting accordingly.
URL Actions
Let Shelly PM Mini Gen3 directly control other smart devices.
Scripting
Shelly PM Mini Gen3 fully supports mjS scripting, allowing you to create custom features and functionalities.
On the Road to Matter
Each Gen3 device is engineered to be upgradable to Matter. The doubled memory, compared to Plus series, guarantees a smooth update process, paving the way for new smart capabilities and integrations. *Dependent on the extent of Matter's functionalities support.
More Memory, More Power
The Gen3 series ensures the quality and reliability of our devices by using our own powerful Shelly chip. Boasting 8MB of memory, this dramatically improves device performance and efficiency. This significant increase in memory not only guarantees smoother and faster operation but also equips the Gen3 series for the introduction of new capabilities.
Unified Control with Virtual Components
The Gen3 Series introduces "virtual components, transforming how you manage and control 3rd party devices. Within the Shelly Smart Control app, you can now create virtual devices, integrating non-Shelly products into a unified control system. This feature provides streamlined control of all your smart devices, regardless of brand, from a single interface.
Specifications
- Size (HxWxD): 29x34x16 ±0.5 mm
- Weight: 13 ±1 g
- Mounting: Wall box
- Screw terminals max torque: 0.4 Nm / 3.5 lbin
- Conductor cross section: 0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules)
- Conductor stripped length: 6 to 7 mm / 0.24 to 0.28 in
- Shell material: Plastic
- Color: White
Environmental
- Ambient temperature: -20 °C to 40 °C / -5 °F to 105 °F
- Humidity: 30 % to 70 % RH
- Max. altitude: 2000 m / 6562 ft
Electrical
- Power supply: 110 - 240 VAC
- External protection: 16 A, tripping characteristic B or C,6 kA interrupting rating,Energy limiting class 3
- Power consumption: <1.2 W
Output circuits ratings
- Max measurement voltage: 240 VAC
- Max measurement current: 16 A
- Max measurement power: 3840 W
- Power measurement: Yes
- Voltage protection/Cutoff: No
- Current protection/Cutoff: No
- Max power protection/Cutoff: No
Radio
- RF band: 2400 - 2495 MHz
- Max. RF power: <20 dBm
- Wi-Fi protocol: 802.11 b/g/n
- Wi-Fi Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors(Depends on local conditions)
- Bluetooth Protocol: 4,2
- Bluetooth Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors(Depends on local conditions)
MCU
- CPU: ESP-Shelly-C38F
- Flash: 8 MB
Firmware capabilities
- Webhooks (URL actions): 20 with 5 URLs per hook
- MQTT: Yes
- UPD: Yes
- Scripting: Yes
