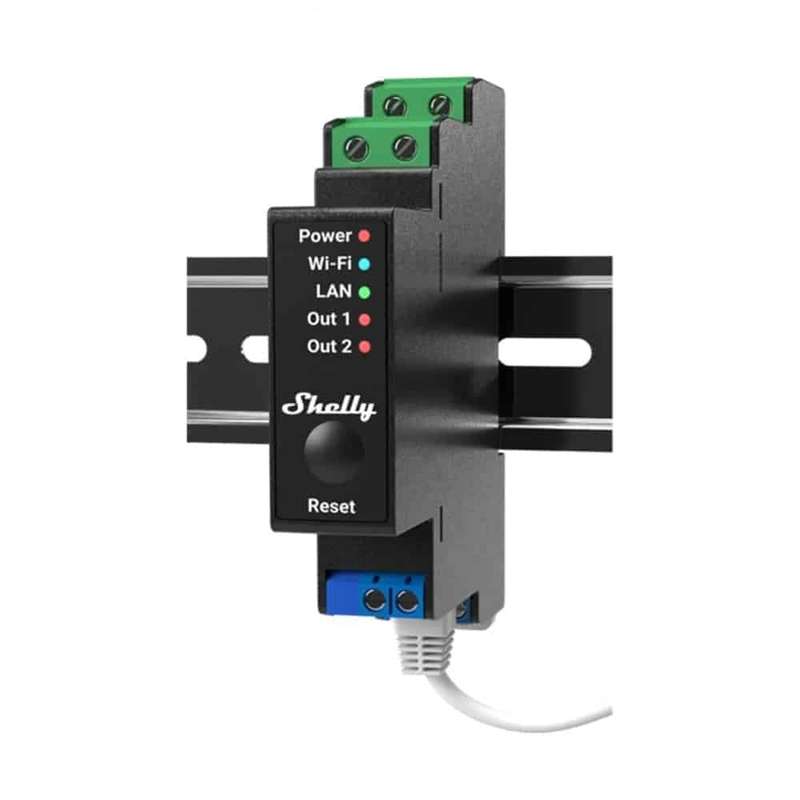

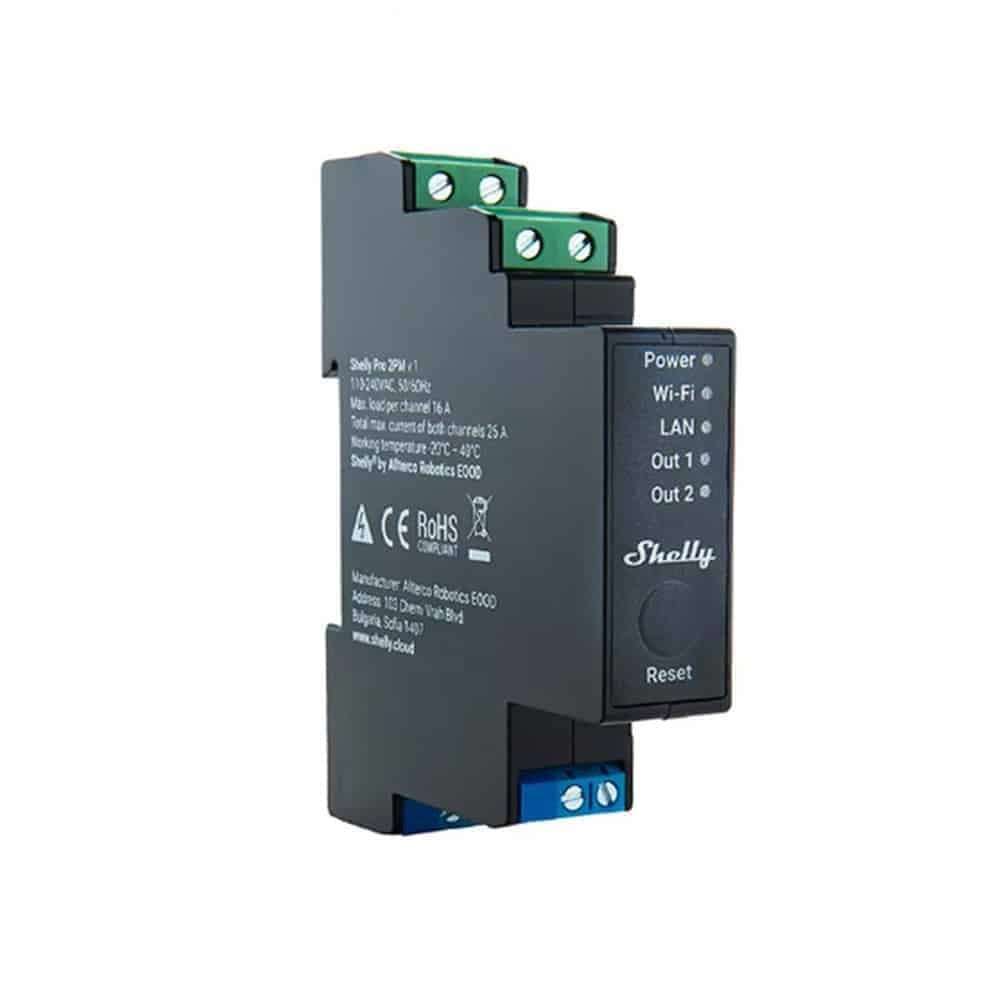

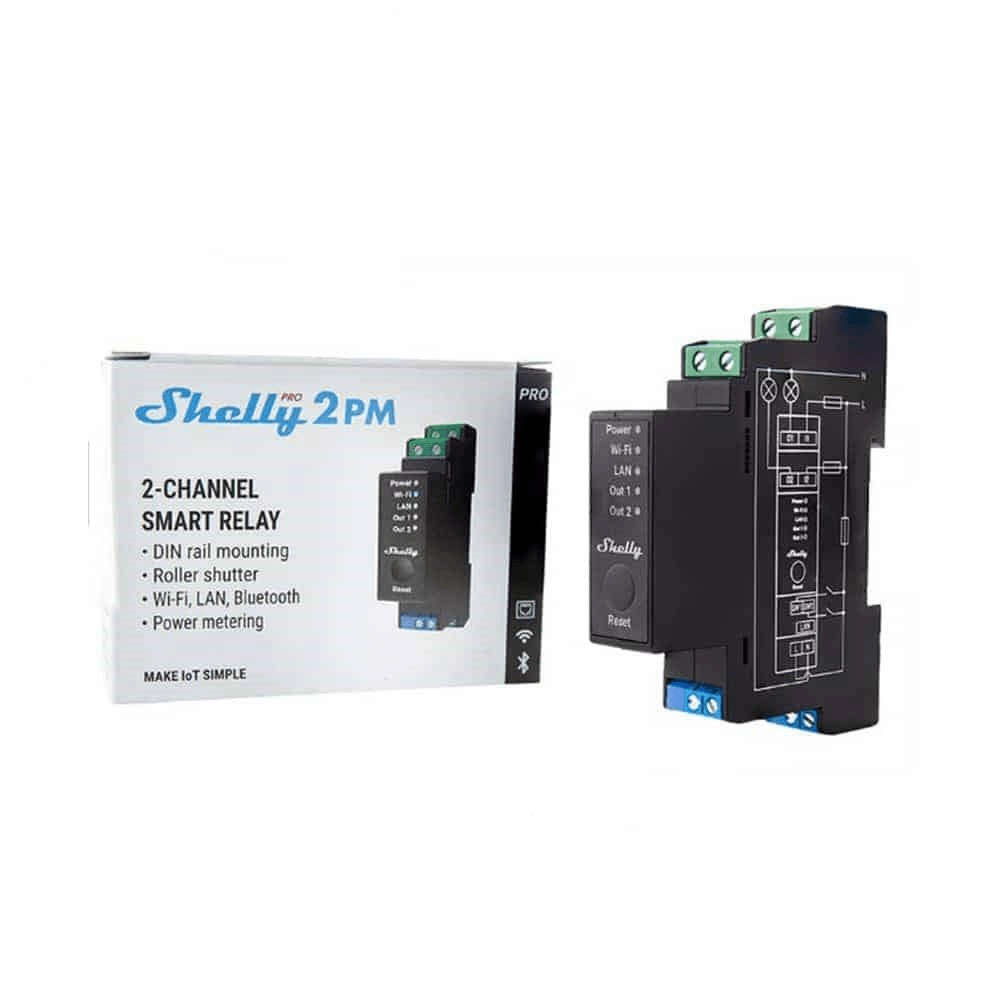

Shelly Pro 2PM 25A 1-Phase Wi-Fi Relay
Shelly Pro 2PM is a one-phase, 2-channel relay, supporting up to 16A per channel with a total device capacity of 25A. Shelly Pro 2PM is equipped with two integrated precise power meters that allow customers to control and monitor the consumption for each channel separately. It supports two-directional motor control, which makes it perfect for the automation of roller shutters, curtains, awnings, gates, and many more! Use scripting functionalities to set custom automation scenes based on various occurrences, weather forecasts, wind forecasts, etc.
LAN, WI-FI, AND BLUETOOTH CONNECTIVITY
LAN connection for high security and reliability. Simultaneous Wi-Fi and LAN usage, as backup when needed.
COVER (ROLLER) CONTROL
Control two-directional AC motors and set your desired position.
2 OUTPUTS, 16 A EACH
Shelly Pro 2PM has a total device output of 25A.
ENHANCED SAFETY & SECURITY
Improved safety features and TLS 1.2 support, allowing a broad range of secure cloud-connected and local integrations.
PRECISE POWER METERING
Shelly Pro 2PM provides precise monitoring of the power consumption
SCRIPTING CAPABILITIES
Set custom scenes by combining Shelly Pro 2PM with your other Shelly devices.
Specifications:
-
Mounting:DIN rail
-
Screw terminals max torque:0.4 Nm / 3.54 lbin
-
Conductor cross section: 0.5 to 2.5 mm² / 20 to 14 AWG (green connectors) 0.5 to 1.5 mm² / 20 to 16 AWG (blue connectors)
-
Conductor stripped length: 6 to 7 mm / 0.24 to 0.28 in (green connector) 5 to 6 mm / 0.20 to 0.24 in (blue connectors)
-
Shell material: Plastic
-
Color: Black
