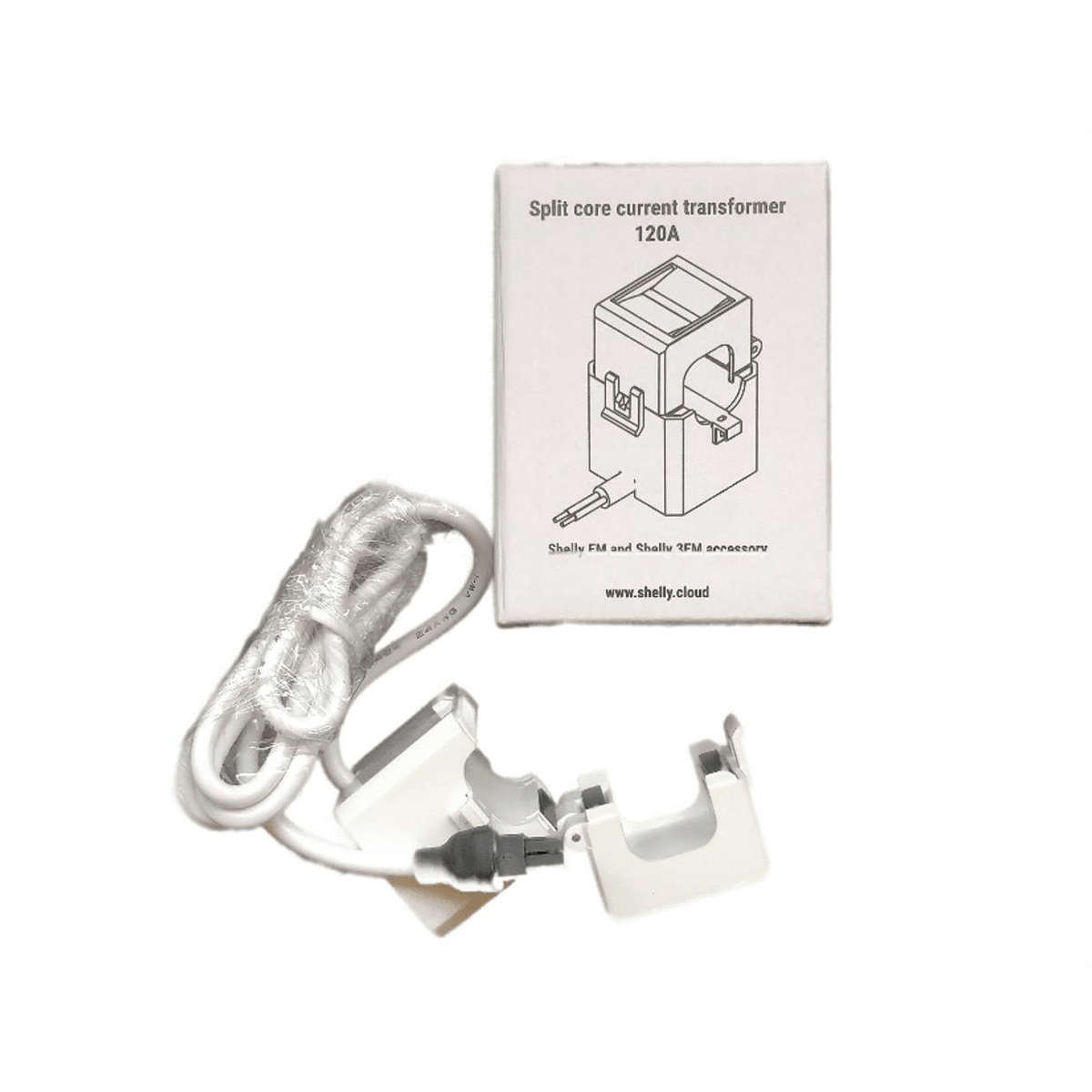

Shelly Split Core Current Transformer SHELLY 120A CLAMP

The Shelly 120A Clamp is complete with a plug to use it on the neutral of the Shelly EM.
The procedure is very simple, let's connect the clamp on the phase of interest we want to measure
consumption (in W) and that's it.
Once in place, the information is communicated to the Shelly cloud via the WiFi module.
you will have permanent and everywhere access to the electricity consumption of your devices.
Shelly devices are compatible with Android and iOS applications, as well as Google Home and Alexa voice assistants.

Technical features
Template —  Shelly Split Core Current Transformer 120A
Precision — 1%
Nucleus — Core of ferrite
Electrical resistance — 3000VAC 1mA60s
Internal diameter —  17mm
Load resistance  — 20
Rated primary current — 120A
Nominal Secondary Current — 40 mA
Saturation current —  120A
Dimensions — 31mm x 45mm x 30mm
