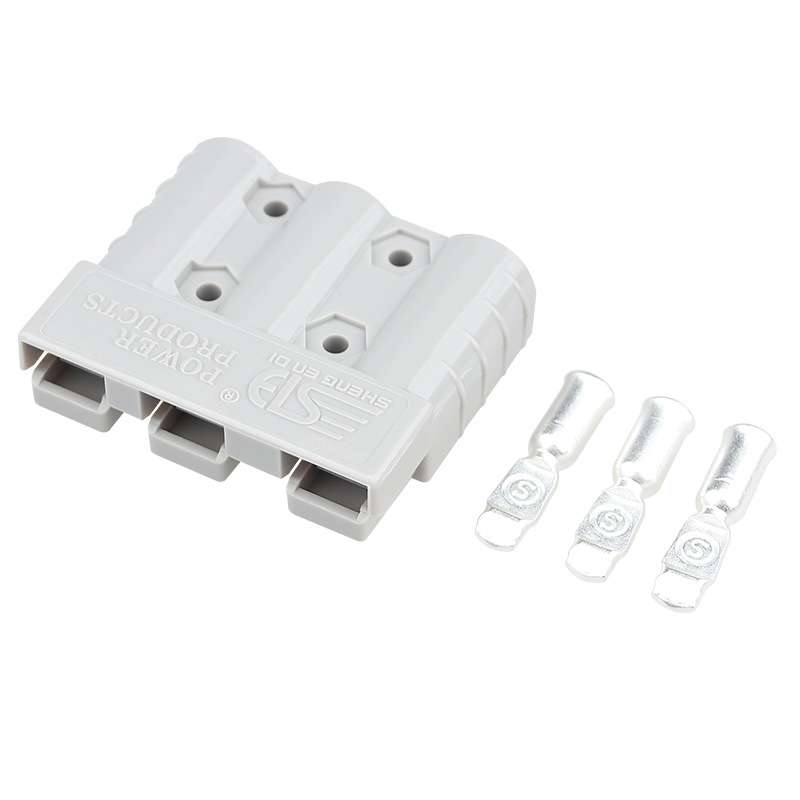

SHENGENDI SGD50AH-GY 600V 3 Pole Connector Anderson Plug UPS Power Supply Socket Charger Charging Plugs

TBD0604286201

1. Specifications: SGD50A 600V
2. Shell material: PC UL94V0
3. Contact material: silver-plated purple copper (terminal)
4. Contact type: fixed contact
5. Cable introduction angle: 180 degrees
6. Flame retardant grade: V 0
7. Process: injection molding
8. Rated current: 50 A
9. Rated voltage: 600 V
10. Temperature resistance: -25-125 degrees Celsius

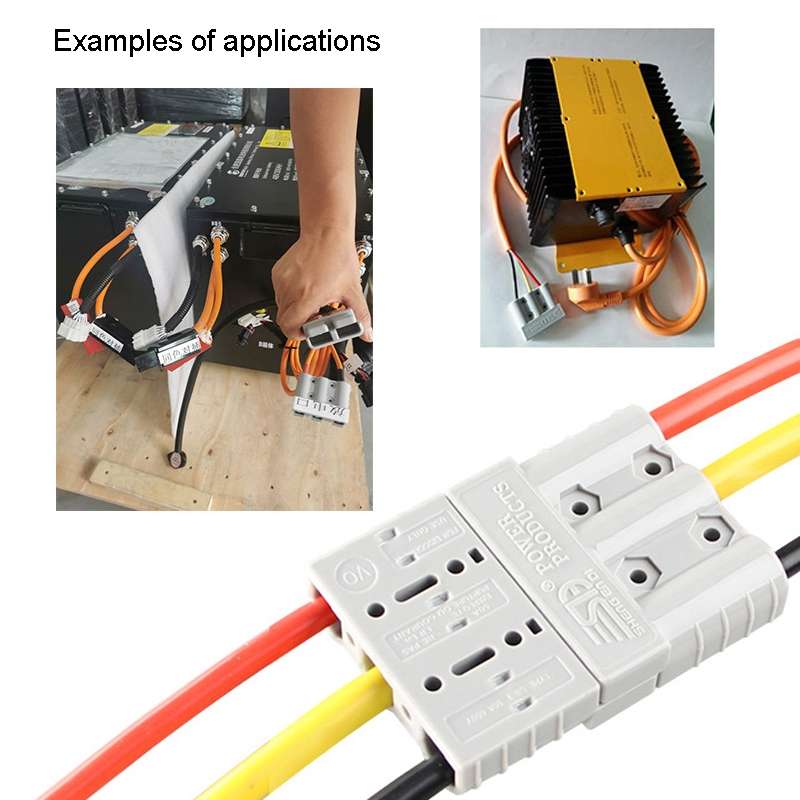

11. Application: electrician and electrician
12. Characteristics: insulated material, not divided into male and female, the same color plug, fire retardant, flame retardant, safe to use, convenient fast plugging and unplugging
13. The conductive metal parts are made of silver-plated copper, quenched and hardened, soft and medium hardness, no deformation during plugging and unplugging, not easy to break, long-lasting and convenient to use, good conductivity
14. Wire specification: 3.5 mm - 5.6 mm
15. Terminal aperture specification: 5.7, 4.7, 3.7 mm

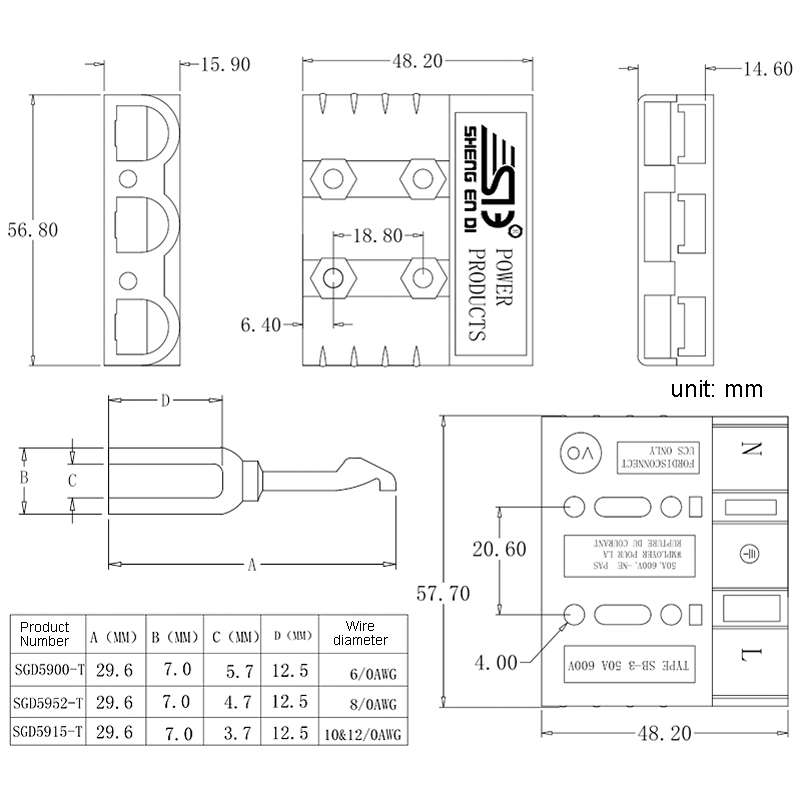

16. Housing/cover size: 48.2 x 57.7 x 15.9 mm
17. Packing list: rubber case x 1, terminal x 3
