Sherlotronics 6.4A Battery Backup Power Supply Sherlotronics 6.4A Battery Backup Power Supply
Sherlotronics 6.4A Battery Backup Power Supply Sherlotronics 6.4A Battery Backup Power Supply
Closed

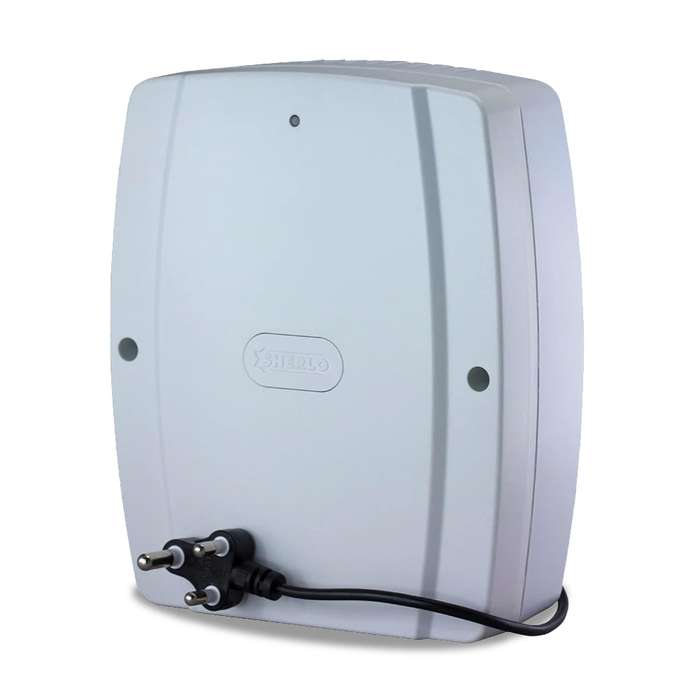

Sherlotronics 6.4A Battery Backup Power Supply

New 10 were available
R937.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
PS48-2
Bob Shop ID
597776084

Sherlotronics 6.4A Battery Backup Power Supply fits a standard 18Ah / 20Ah SLA / Gel battery (not for Lithium batteries)

Product Specifications

  • Housing Fits Standard 18Ah / 20Ah Battery
  • Microprocessor Controlled Charging Output
  • Low battery switches off at 10V DC
  • Tri-colour LED Indication



Sherlotronics 6.4A Battery Backup Power Supply

Applications:

  • Alarm panel battery backup
  • CCTV battery backup
  • Backup power supply for door controller
  • Maglock for an Access Control solution

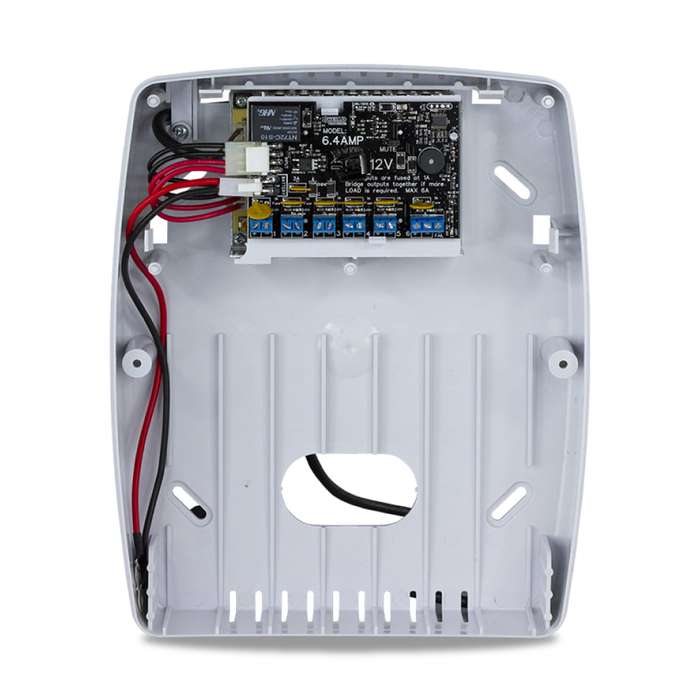

Product Features

  • Microprocessor Controlled charging output
  • Low battery switches off at 10V DC
  • Buzzer tones on battery low and AC Fail
  • 6x Separate 1A Resettable Fuse protection on output
  • Fuse protection on AC input
  • ABS Plastic enclosure



LED Indication

  • GREEN = Power is on & the unit is charging the battery at the correct voltage
  • ORANGE = Power failure condition. The battery Voltage is above 12V & still good
  • RED = Power failure condition. The battery Voltage is below 11.5V & is almost depleted
  • OFF = Power failure condition. The battery Voltage is below 10V & the unit is switched off



Technical Specifications

  • Model: 6.4Amp
  • Housing and Material: White ABS
  • Input Voltage Range: 110V ~ 230V AC 50HZ 0.5A
  • Output Voltage: 13.8v ~ 14.2VDC
  • Max Current output: 6.4A DC or 70 Watts
  • Relay rating: 10A
  • AC Fail output rating: 140mA Positive Switching
  • Operating Temperature: -3°C to 60°C
  • Dimensions: (L) 275 x (W) 225x (H) 97mm
  • Gross Weight: 1.13Kg



PDF Download

Installation Manual
