Sherlotronics Digital Timer Module

The Sherlotronics Timer Module can be used for customising siren output times, beam bypass, guard awake and auto gate & garage door closure applications.

A variety of applications and functions are visualised for this product and with a bit of imagination, the unit will solve various security installation issues.

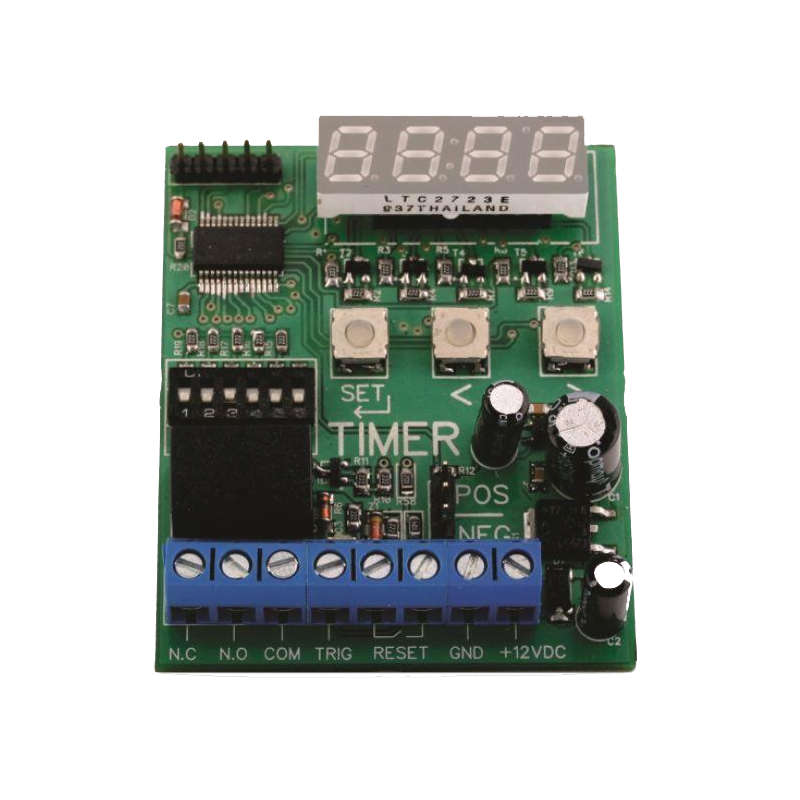

Sherlotronics 12vDC Digital Timer Module with 10 Different Functions

Applications

The Sherlotronics Timer Module can be used for customising siren output times, beam bypass, guard awake and auto gate & garage door closure applications.

A variety of applications and functions are visualised for this product and with a bit of imagination, the unit will solve various security installation issues.

Technical specifications

• Power input range: 10V ~ 14V DC
• Functions: 1 second to 59 minute timer output
• 1 minute to 24 hours timer output
• Auto door closure - Guard awake timer
• Pulse stretcher - Counter
• Count down trigger output
• False alarm prevention
• Momentary to latching
• 1 second to 59 minute timer re-triggable
• Trigger Input: Positive / Negative - Reset Input: Normally Open potentially free
• Relay output Load @ 12V DC: 1AMP
• Dimensions: 52mm x 65mm (PCB)

Features

• Timed Relay output from 1 second to 59 minutes & 59 seconds
• Timed Relay output from 1 Minute to 23 hours
• Auto garage door closure
• Guard awake timer
• Pulse stretcher - Counter
• Count down trigger output
• False alarm prevention
• Momentary to Latching

Sherlotronics Digital Timer Module Installation Manual
