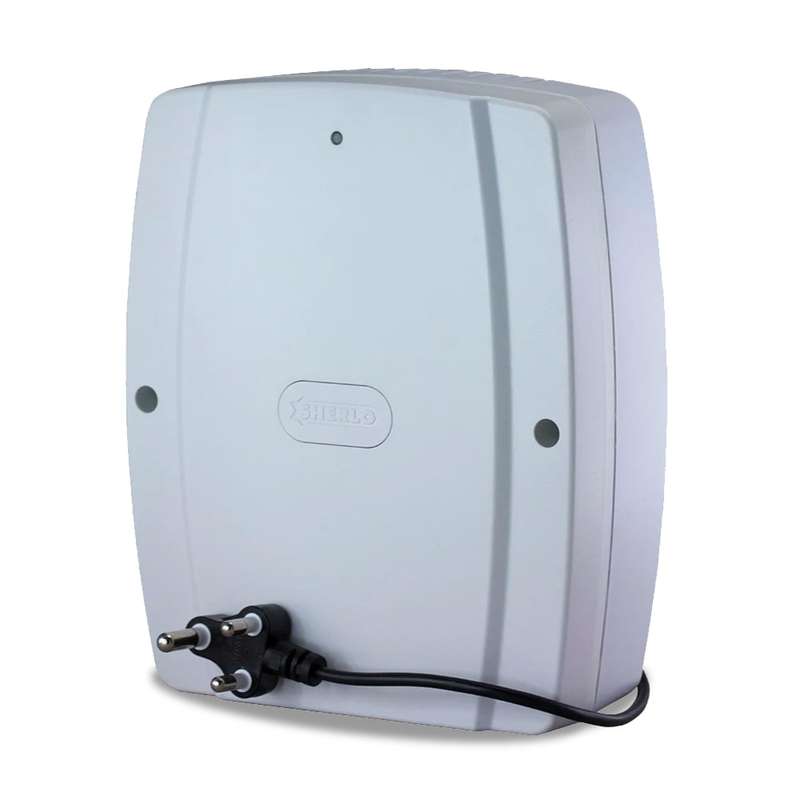

Sherlotronics Fixed Panic Panel

Sherlotronics Fixed Panic Panel is a self-contained wireless panic system with battery backup (battery sold separately). It has been designed for both Hard-Wired Panic buttons as well as Remote Control. The system features a 3 minute siren output, latching Strobe light output as well as armed response Radio TX trigger.

Sherlotronics Fixed Panic Panel - triggered via Hardwired Panic Button/s or Remote Control

Designed to be hardwired to static panic buttons as well as Remote panic buttons. When a Panic is activated, the unit will trigger the 3 Minute siren output as well as the Radio Transmitter output and a Latching Strobe output. All activations can be reset either via the Remote control or the Hardwired Panic button. The Low battery cut-out @ 10vDC will safeguard the battery from deep discharge.

Applications

• Office panic
• Shop panic
• Home panic
• Factory panic
• Guard house panic

Features

• Microprocessor Controlled charging output.
• Low battery switch off at 10V DC.
• Buzzer tones on battery low and AC Fail.
• Resettable Fuse protection on output.
• Fuse protection on AC input.
• ABS Plastic enclosure.

Specifications

• Input Voltage Range: 110V ~ 230V AC 50Hz
• Output Voltage: 13V ~ 14.4V Adjustable
• Max Current output: 3.2A DC @ 14V
• Relay contact rating: 10A
• AC Fail output rating: 140mA Positive switching
• Operating temp: -3°C to 60°C
• Dimensions (L x W x H): 200 x 180 x 87mm
• Gross Weight: 0.895Kg
• Warranty: 12 Months

What's in the box

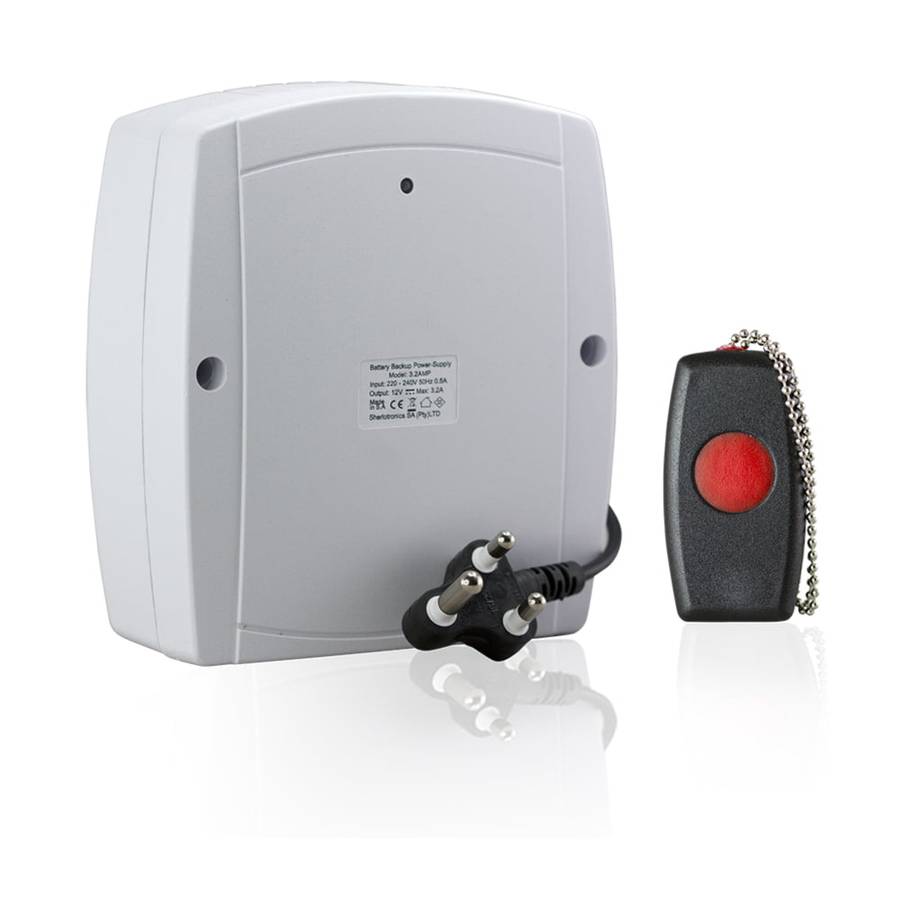

Option 1 - Panic Panel:

1x Sherlotronics Fixed Panic Panel (excludes Battery and Siren)

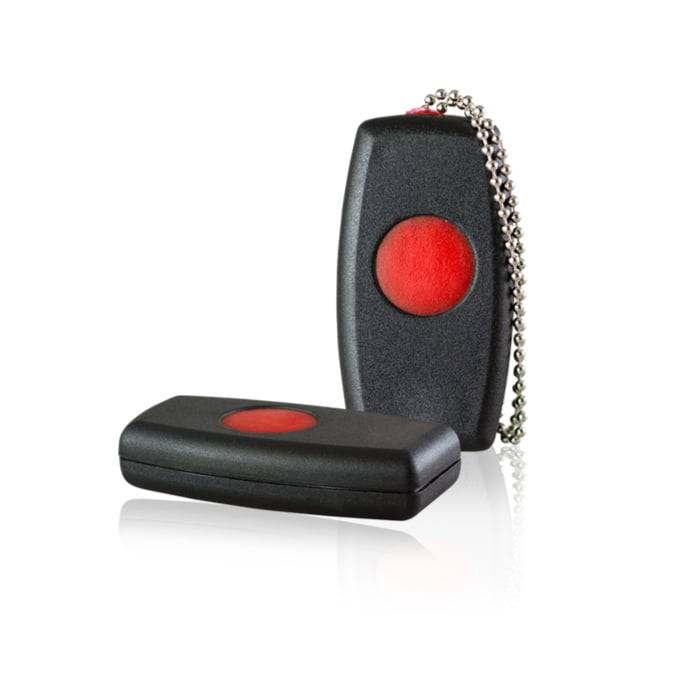

1x Sherlo Panic Remote

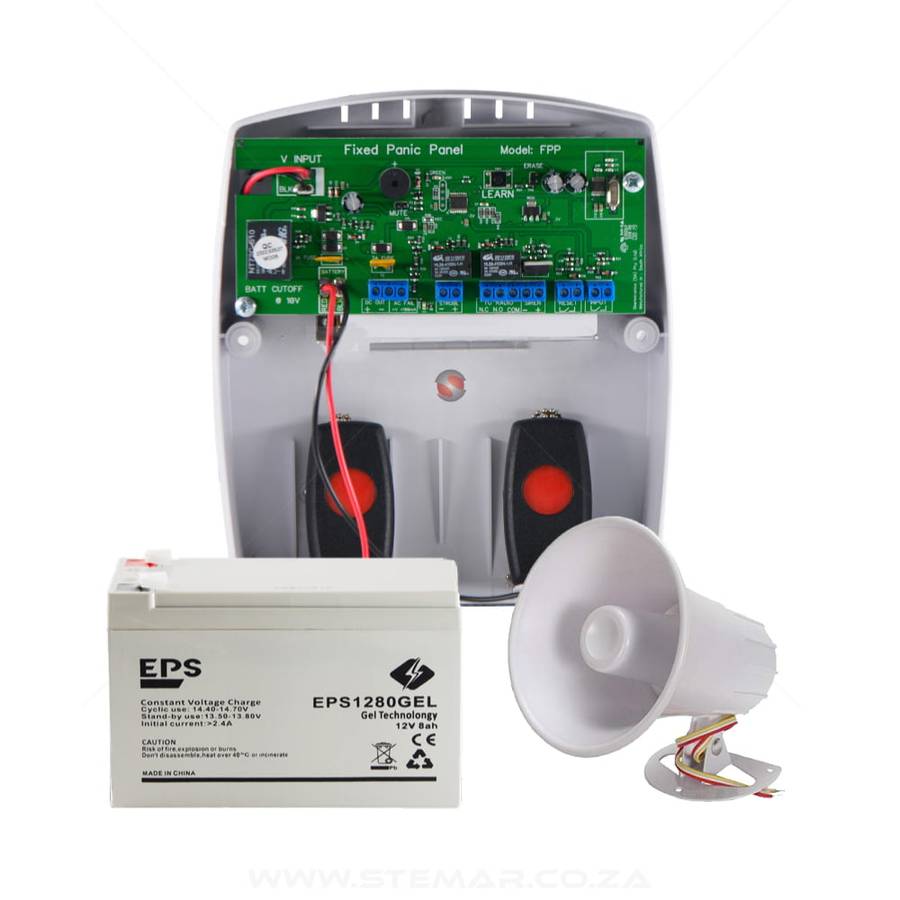

Option 2 - Panic Panel Kit:

1x Sherlotronics Fixed Panic Panel

2x Sherlo Panic Remotes

1x Gel Battery

1x 15W Siren

Fixed Panic Panel Installation Manual
