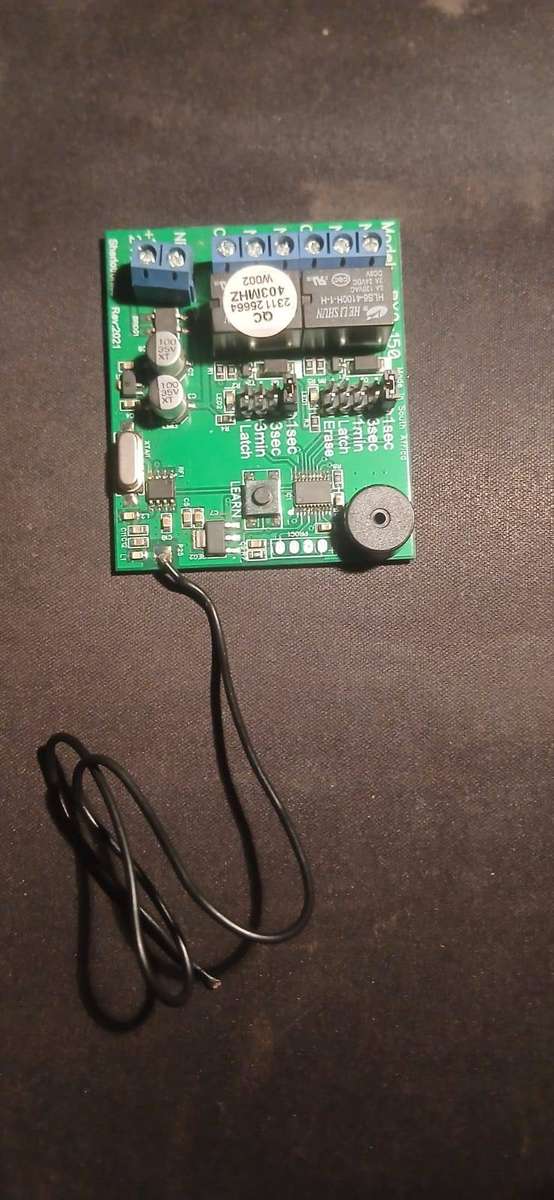

Sherlotronics 2-Channel Code-Hopping Receiver PCB Only (403MHz)
Get a reliable replacement or spare parts module with this second-hand Sherlotronics RX2-150 2-Channel Receiver PCB. Ideal for South African gate automation, garage setups, and security integrations, this module operates on the ultra-stable 403MHz frequency. It utilizes secure code-hopping encryption to prevent signal duplication or key cloning, giving you peace of mind for home access security.
PRODUCT DETAILS & STATE: - Condition: Pre-owned / Second-hand standalone circuit board. - Tested: Clean unit, fully inspected, and working 100%. - Relays: 2 x Independent output channels to control two separate automated devices (e.g. Channel 1 for your driveway gate motor, Channel 2 for your garage door).
KEY CAPABILITIES: - Rolling Code Security: True code-hopping encryption keeps entry access safe from wireless scanners. - Jumper Programming: Configurable onboard header pins allow easy selection between latching or momentary pulse responses. - Onboard Timer Selection: Adjust pulse times manually via jumpers for 1 Second, 3 Seconds, 1 Minute, or 3 Minutes. - Setup Feedback: Built-in buzzer delivers audible tone signals during programming, erasing, and system testing. - Strong Reception: Fitted with a dedicated wire antenna for an operational range of up to 150 meters in open-air conditions.
TECHNICAL SPECIFICATIONS: - Brand: Sherlotronics - Model: RX2-150 / RX2 Series Masterboard Module - Operational Frequency: 403.55MHz (Crystal Controlled) - Input Voltage Requirement: 9.8V to 26V AC or DC (Automatic sensing) - Low Quiescent Current Draw: 15mA standby - Remote Capacity: Saves up to 40 unique remote control buttons in memory
COMMON IMPLEMENTATIONS: - Triggering automatic main entrance gates (Centurion, Gemini, Hansa, ET, etc.) - Controlling motorized garage doors - Linking remote panic button systems to wireless receiver hubs - Arming or disarming intruder alarm systems (IDS, Texecom, Paradox) - Remotely activating security lights, electric fences, or automated generators
PACKAGE CONTENTS: - 1 x Sherlotronics RX2-150 2-Channel 403MHz Receiver (Circuit Board PCB Module Only)
Please Note: This specific listing sells the standalone inner circuit board module exactly as pictured. It does not include an external plastic casing box, wire mounting terminal blocks, transformers, backup batteries, or remote transmitter fobs. These parts must be sourced separately.
