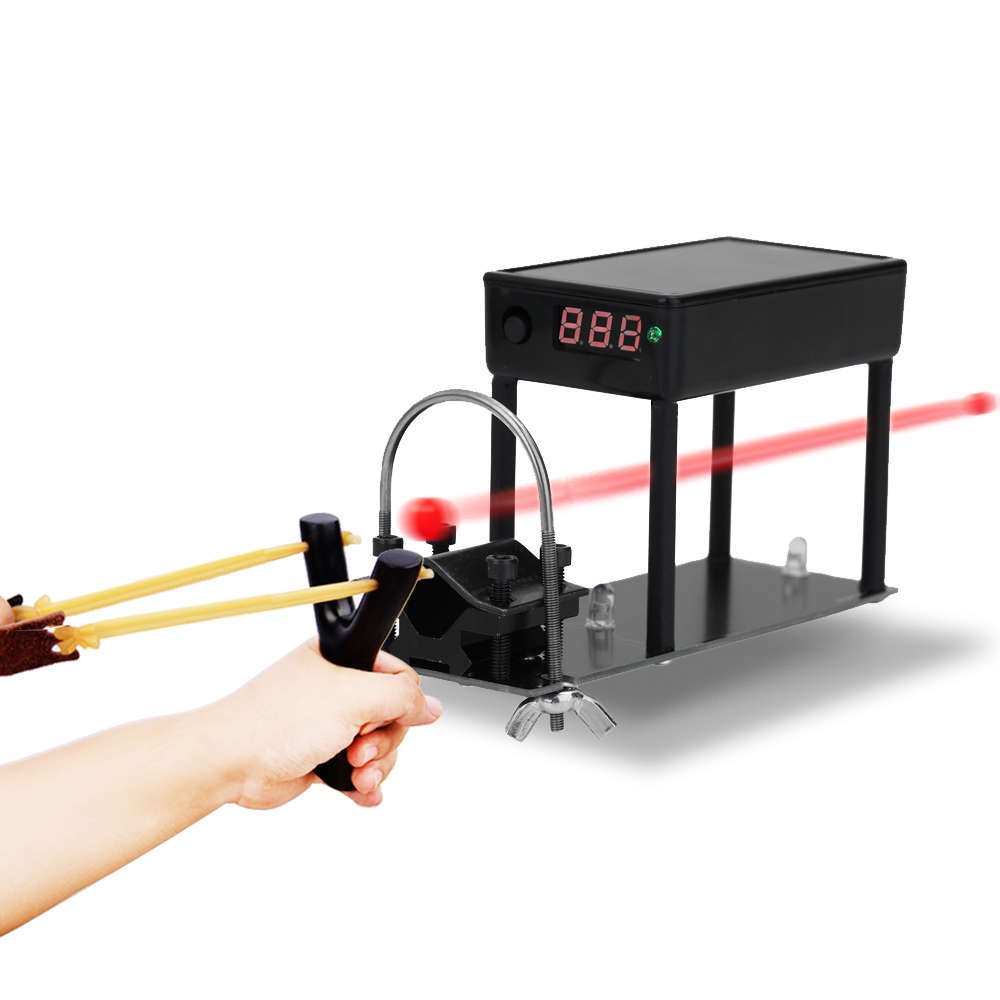

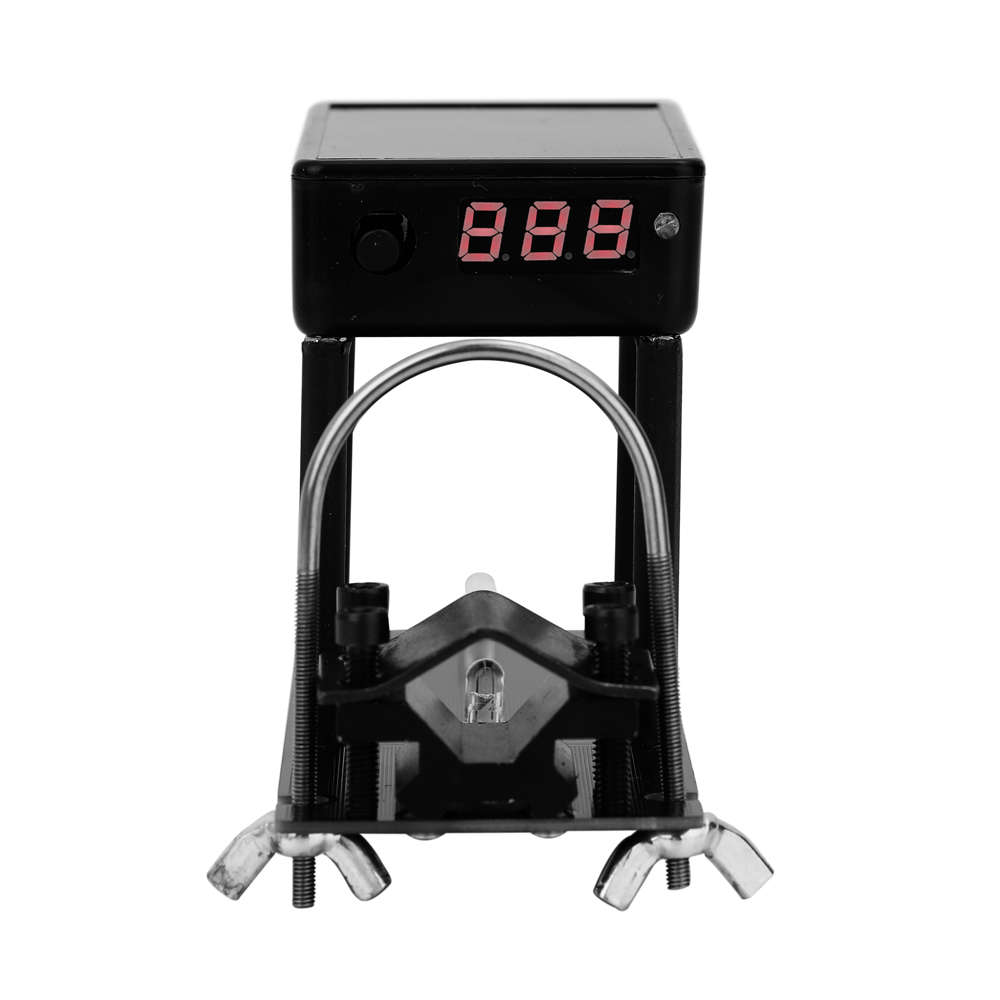

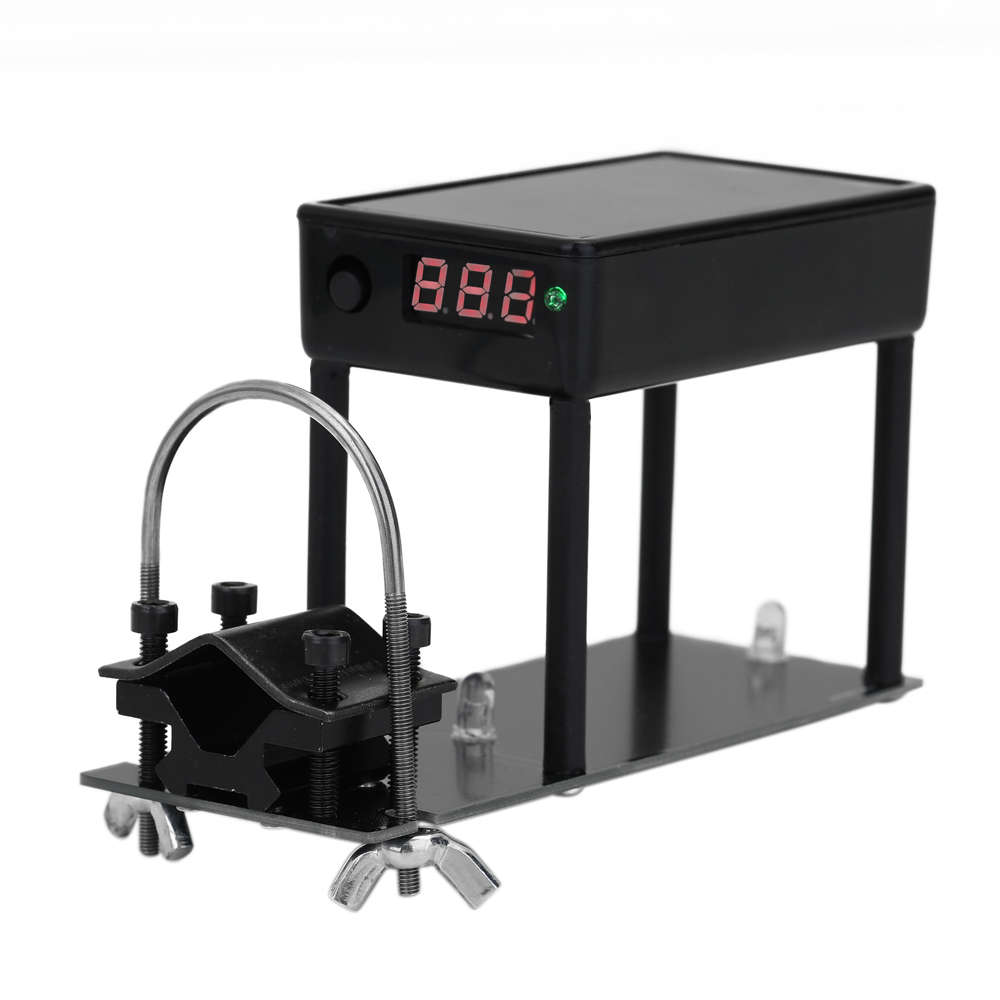

Shooting Chronograph Bullet Speed Tester Multifunctional Chronograph for Shooting Speed Meter Ball Speed Energy Measurement
Courier Shipping: 8-15 Business Days.
Descriptions:
Mainly used for learning and experiencing the high-speed data processing ability of single-chip microcmputer and measuring the flight speed of various things. Such as: table tennis, badminton, arrow and so on. Core components are industrial-grade encapsulation with stable performance and small error.
Features:
The panel is mainly composed of digital display tube, function, key and LED indicator. The function key is the micro touching button.
Four sides of the air design, to effectively ease the impact of testing time. Improved stability and accuracy. Display surface and the operation of the button in front of the operation and to see the test data are very convenient.
Mini size is easy to carry. Simple and easy operation.
High accuracy measurement. As the device with high accuracy and clamp rail, and fixed equipment after the path every time are the same, and with the guide rail can be made with the mining model in parallel, so the measurement result error is small, small fluctuation dynamiic error.

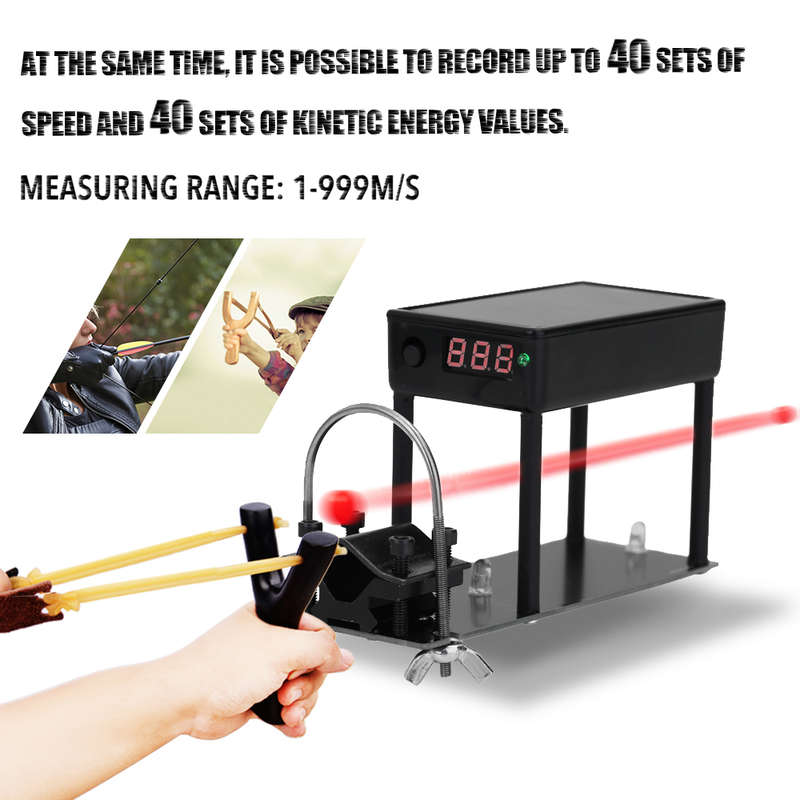

Function is more abundant. Not only can measure the speed, but also can measure the kineti energy, at the same time can record up to 40 groups of speed and the 40 group of the kineti energy value.
Multiple power management and protection. The lithium cell has the function of over charging, over discharging and short circuit protect, and the integrated intelligent shutdown and low power shutdown function.
Specifications:
Working Voltage: DC4.2V
Accuracy: test error less than or equal to 0.5%
Measuring Range: 1-999m/s
Cell(built-in): 1 * 3.7V 450mAh Lithium Cell
Working Surrounding Temperature: -10ﾽﾽﾽﾽﾽﾽﾽﾽﾽ - 60ﾽﾽﾽﾽﾽﾽﾽﾽﾽ
Speed Measurement Range: 1-999m/s
Energy Measurement Range: 1-800J
Weight Input Range 0.1-10g
Speed Record: 40 group
Kine-ti Energy Recording: 40 group

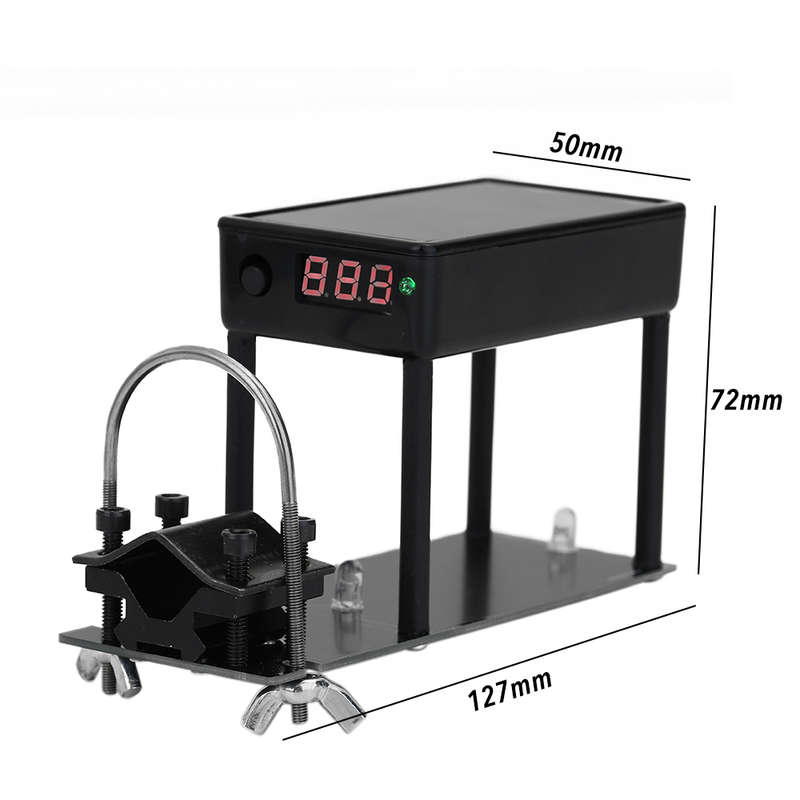

Item Size: 130 * 80 * 50mm / 5.1 * 3.1 * 2.0in
Package Size: 175 * 115 * 95mm / 6.9 * 4.5 * 3.7in
Item Weight: 145g / 5.1ounce
Package Weight: 240g / 8.5ounce
Notes:
Please allow 1-30mm error due to manual measurement.
Due to the difference between different monitors, the picture may not reflect the actual color of the item.
Package Includes:
1 * Speed Measuring Instrument
1 * Manual
