Short Wave Balun Kit NXO-100 Magnetic Ring Balance-unbalance Conversion

Description:

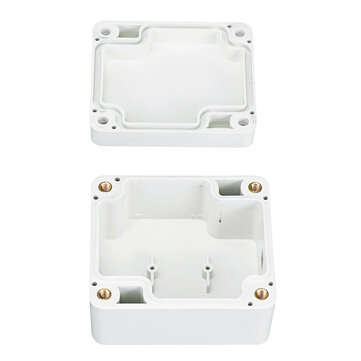

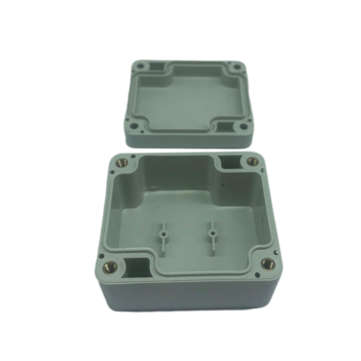

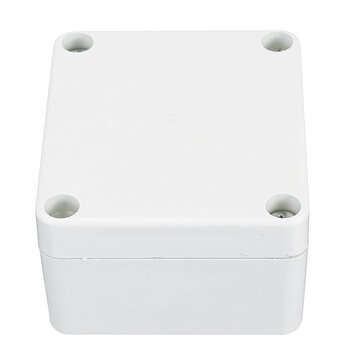

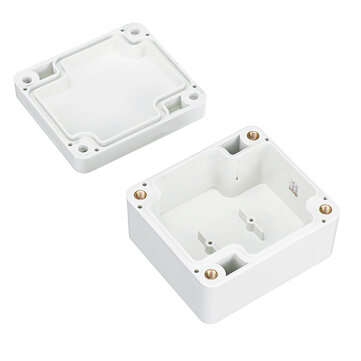

This kit uses a large size NXO-100 magnetic ring and a diameter of 1 mm enameled wire,it can work in the 1-30MHz short wave band,and withstand high power of 100W-200W. It is an ideal kit for making magnetic ring baluns such as 1:1, 4:1, 9:1. Magnetic ring model: NXO-100 Magnetic ring material: nickel zinc ferrite Permeability: 100 Dimensions: (outer diameter) 31mm*( inner diameter )18mm*( height )7mm Center frequency: 15MHz Application frequency: 1-30MHz Waterproof shell size: 65mm*60mm*35mm Weight: 125g
Package included:

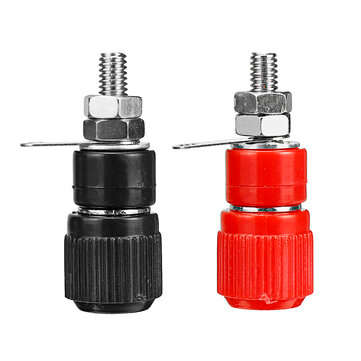

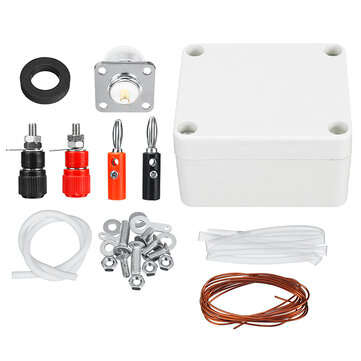

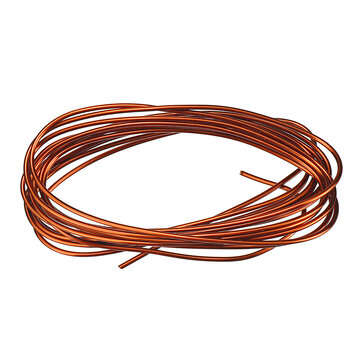

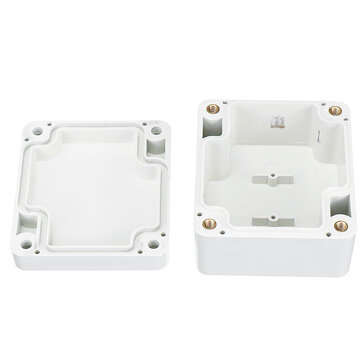

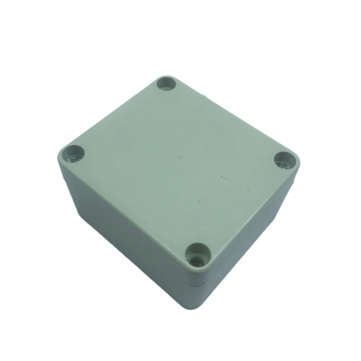

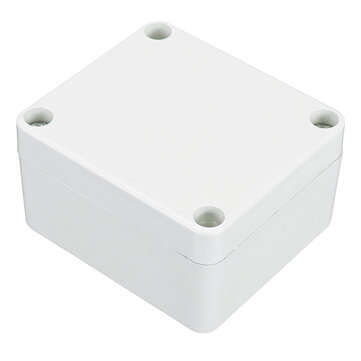

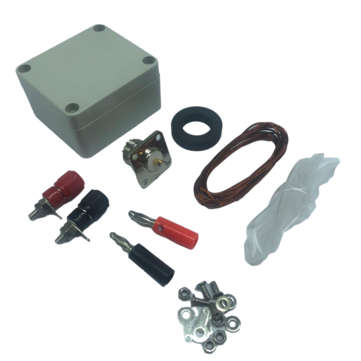

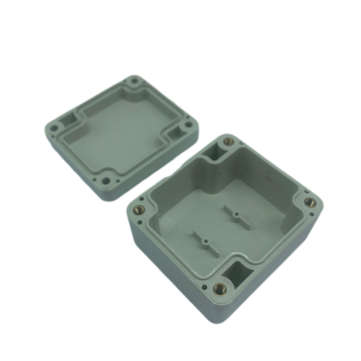

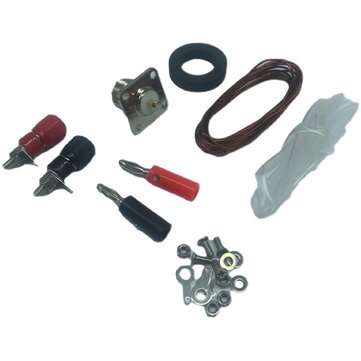

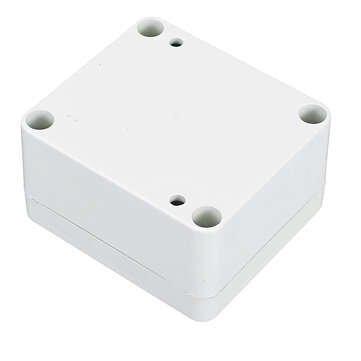

Short Wave Balun Kit: 1 x Waterproof sealed box 1 x NXO-100 magnetic ring (31*18*7) 1 x M seat (flange style) 1 x O1 enameled wire 1 x heat shrink tube 2 x wiring terminals (one each for red and black, used to connect the antenna) 2 x O4 soldering lugs (used to connect the magnetic ring coil to the terminal 1 x 03 soldering piece 03 soldering piece (used to ground the magnetic ring coil and the M seat shell 4 x 03 washers (used to fix M seat) 4 x M3 flat head screws (used to fix M seat) 4 x M3 nuts (used to fix M seat)
