Short Wave Balun Kit NXO-100 Magnetic Ring Balance-unbalance Conversion

20 available / new

R572.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3519

93.48 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

643388420

Description:

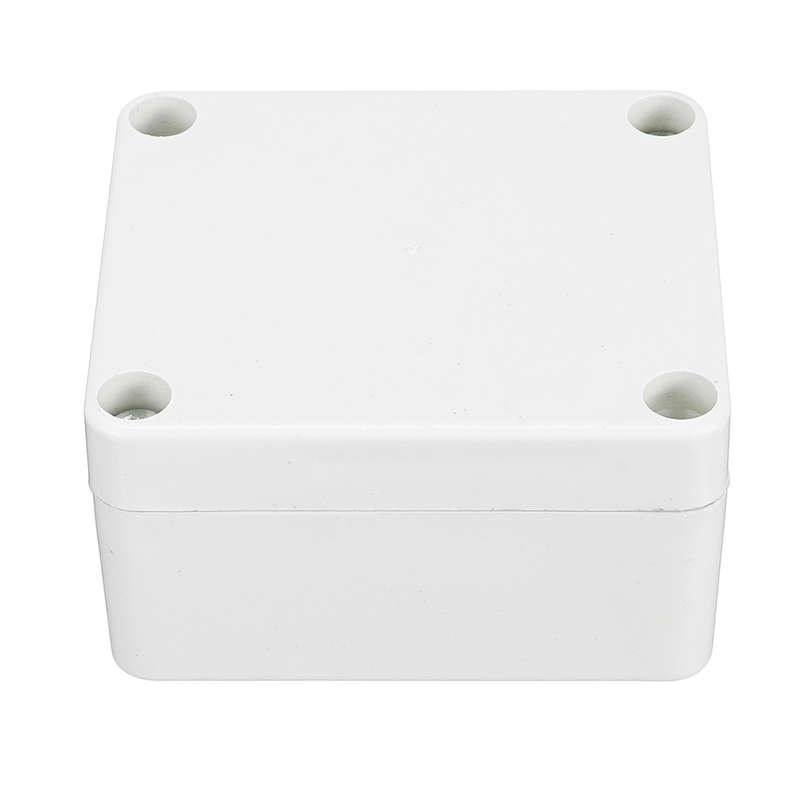

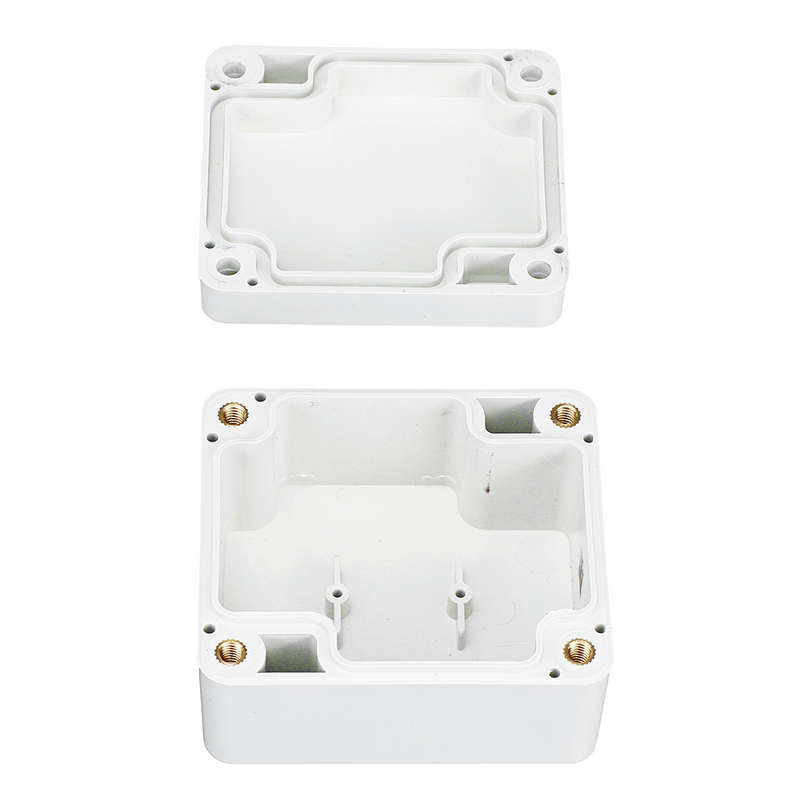

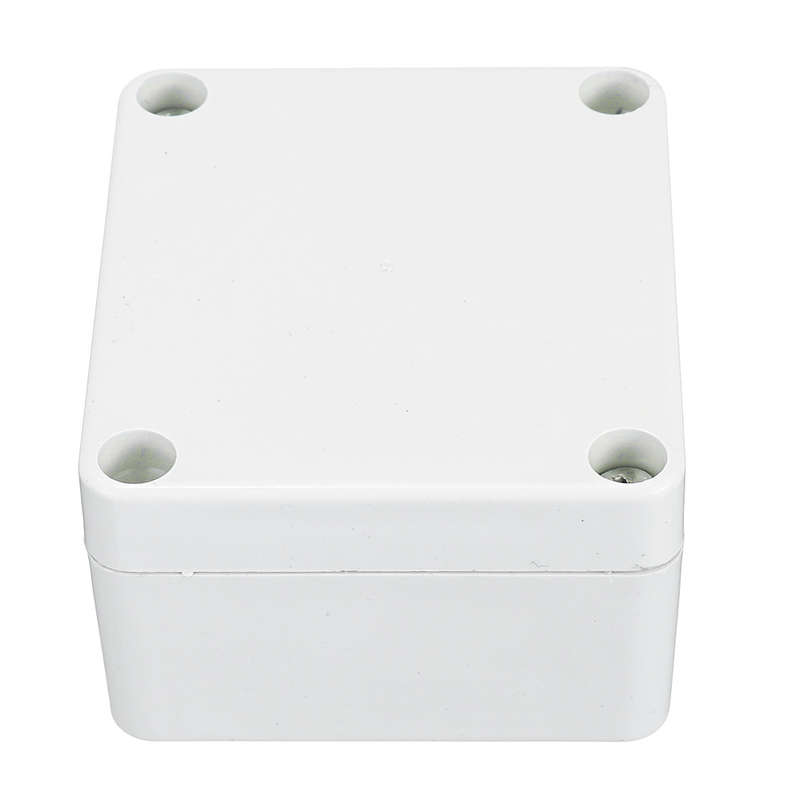

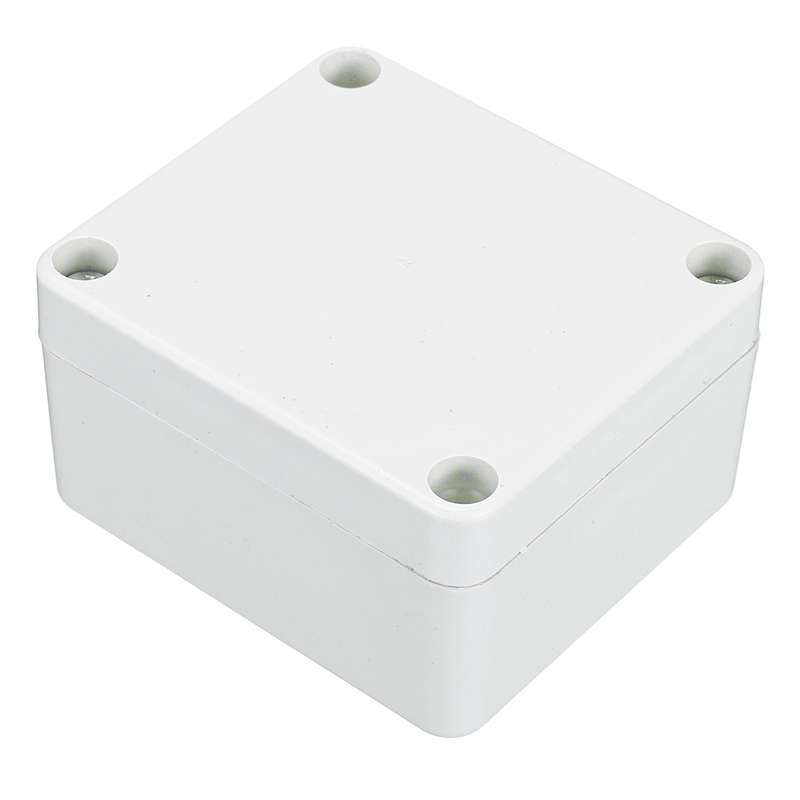

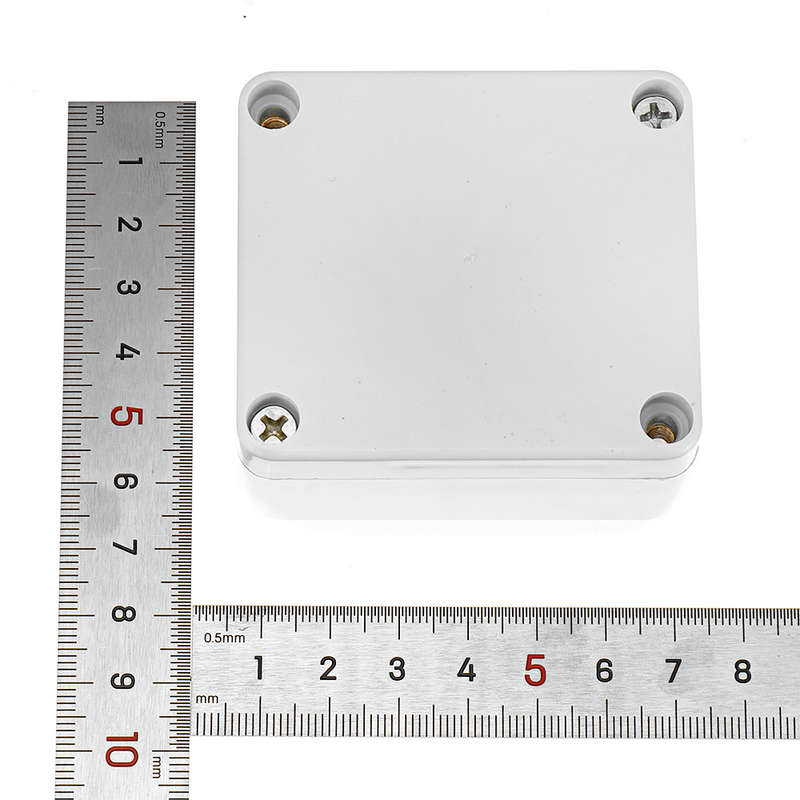

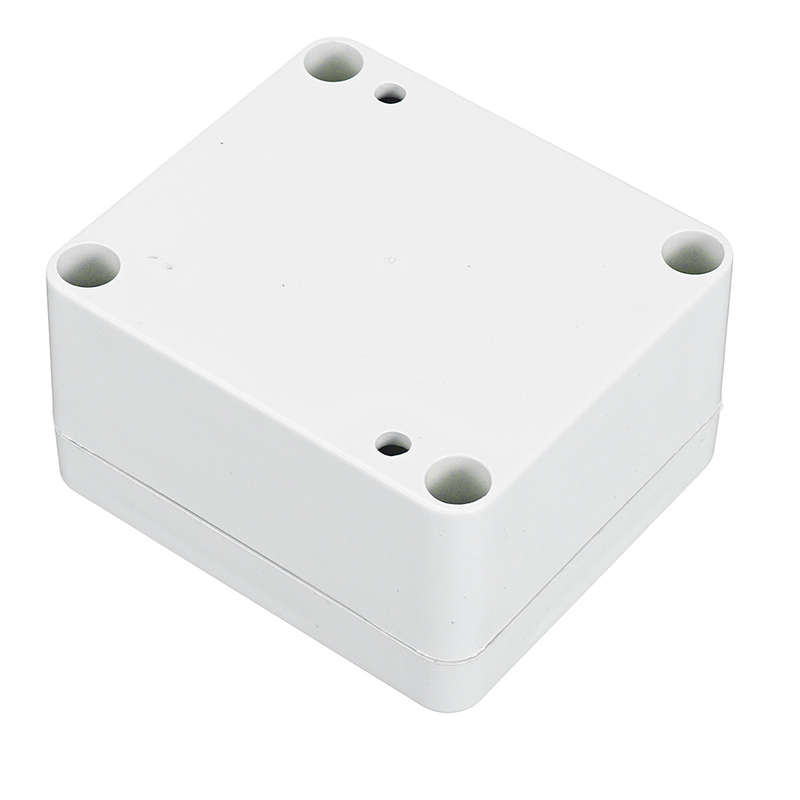

This kit uses a large size NXO-100 magnetic ring and a diameter of 1 mm enameled wire,it can work in the 1-30MHz short wave band,and withstand high power of 100W-200W. It is an ideal kit for making magnetic ring baluns such as 1:1, 4:1, 9:1. Magnetic ring model: NXO-100 Magnetic ring material: nickel zinc ferrite Permeability: 100 Dimensions: (outer diameter) 31mm*( inner diameter )18mm*( height )7mm Center frequency: 15MHz Application frequency: 1-30MHz Waterproof shell size: 65mm*60mm*35mm Weight: 125g
Package included:

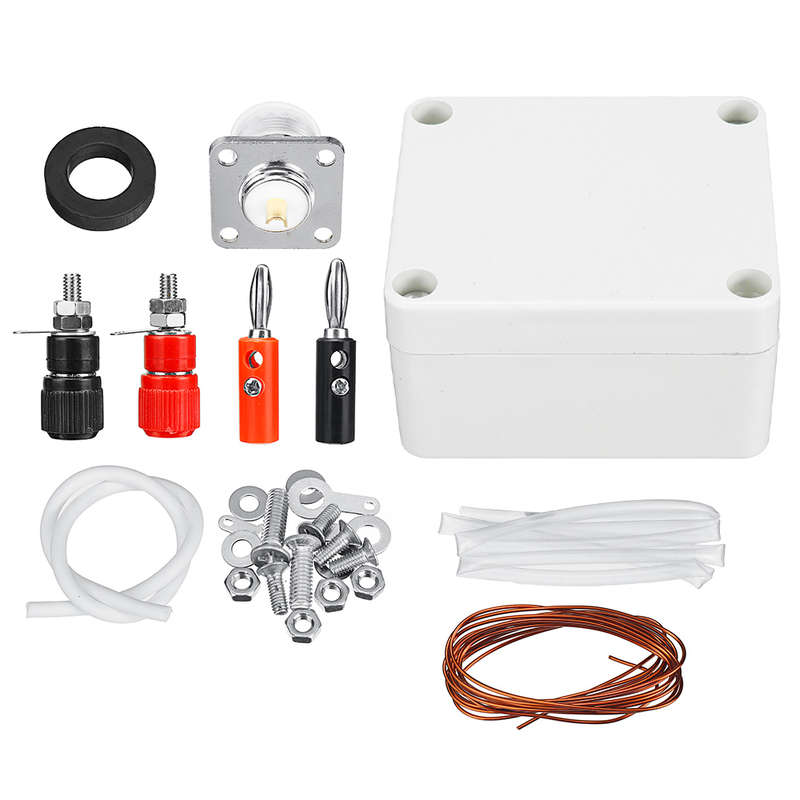

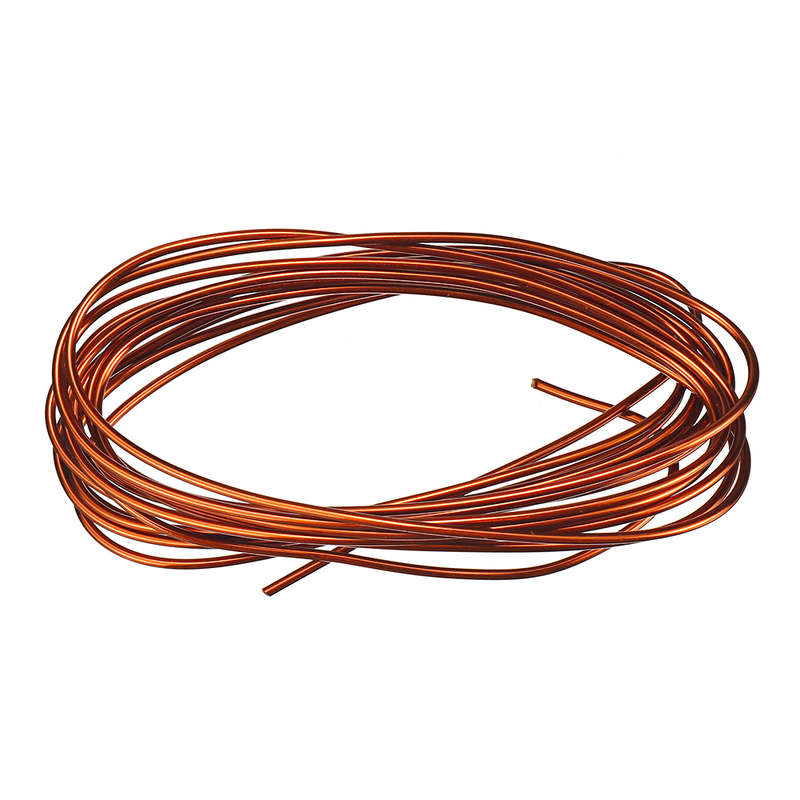

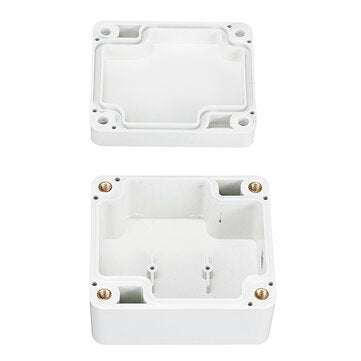

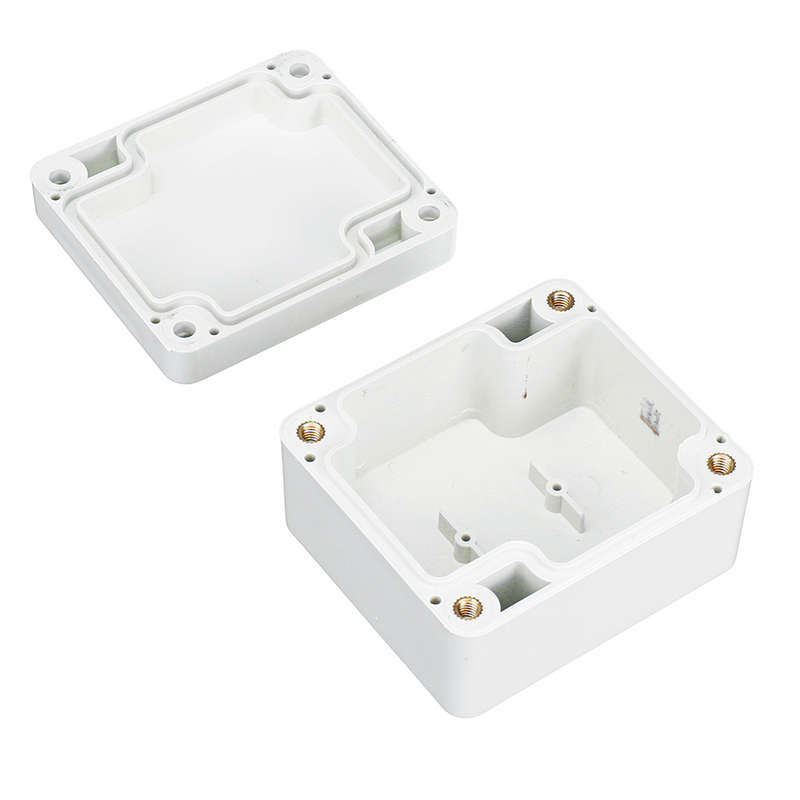

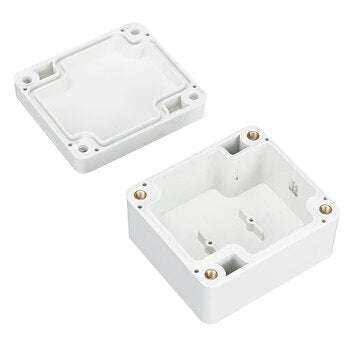

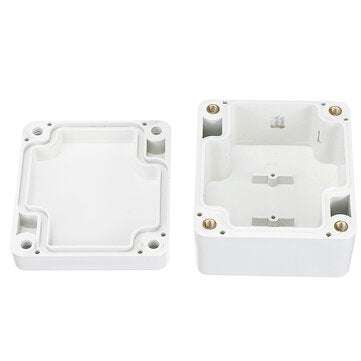

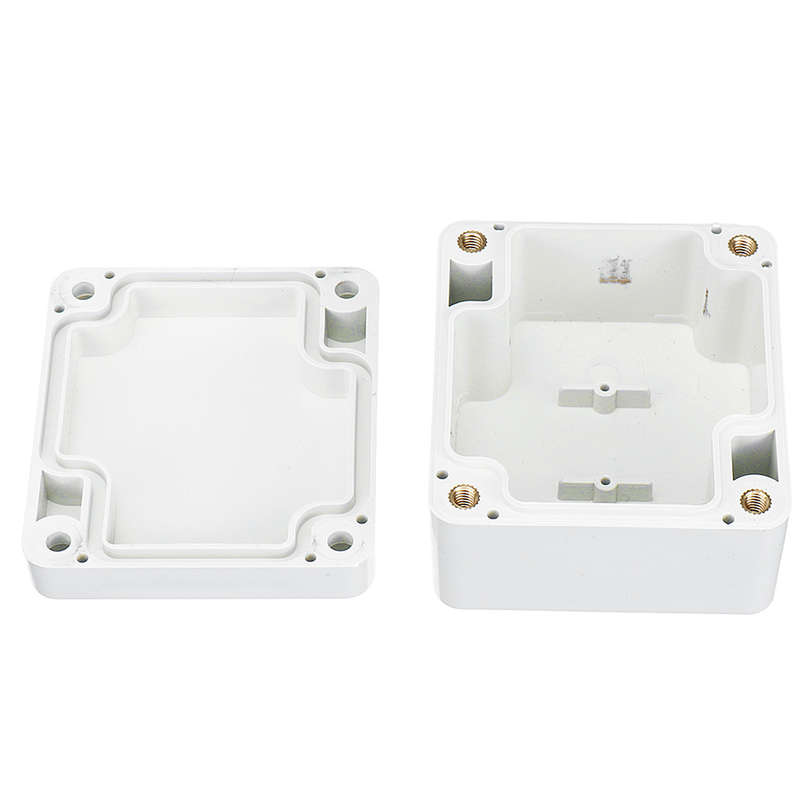

Short Wave Balun Kit: 1 x Waterproof sealed box 1 x NXO-100 magnetic ring (31*18*7) 1 x M seat (flange style) 1 x O1 enameled wire 1 x heat shrink tube 2 x wiring terminals (one each for red and black, used to connect the antenna) 2 x O4 soldering lugs (used to connect the magnetic ring coil to the terminal 1 x 03 soldering piece 03 soldering piece (used to ground the magnetic ring coil and the M seat shell 4 x 03 washers (used to fix M seat) 4 x M3 flat head screws (used to fix M seat) 4 x M3 nuts (used to fix M seat)
