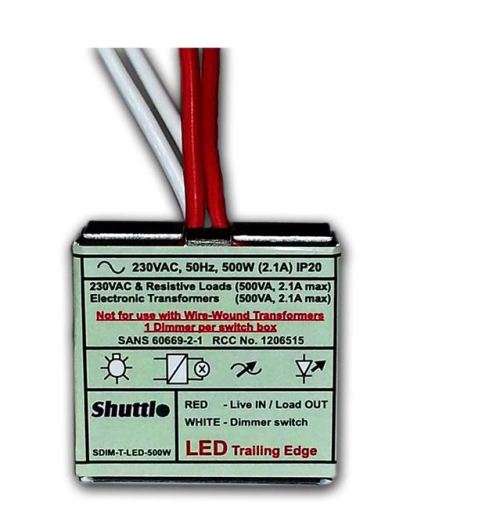

Shuttle 500W Trailing Edge LED Dimming Module

Electrical Specifications

• Nominal Operating Voltage: 190 Vac - 253 Vac.
• Dimming Method: Trailing Edge.
• Minimum Operating Voltage: 100 Vac.
• Max Wire Resistance (Bell-Press Control): 50 k.
• Minimum Load Power: (Resistance) 2 W; (Inductive) Not Compatible; (Electronic Transformer) 20W.
• Maximum Load Power: (230 Vac; Resistive and Electronic Low Voltage) / (Dimmable LED 230 Vac and 12V) 500 VA (240 Vac) 2.1 A Max; (Wire Wound and Inductive Loads) (Florescent and CFL lighting) Not Compatible.

Software Features

• Microprocessor Control: Yes.
• Soft Start and Soft off: Yes.
• Bell-Press Control: Continuous.
• Minimum Intensity Control: Yes.
• Memory: Yes (Returns to previous dimming level when turned on).

Environmental

• Operating temperatures: - 5 to 45 C.
• Storage temperature: -30 to 80 C.
• Maximum Housing Temperature: 85 C.
• Relative Humidity: 90% (Non-Condensing).
• Enclosure: 42 mm x 42 mm x 12 mm (Black Aluminium).
