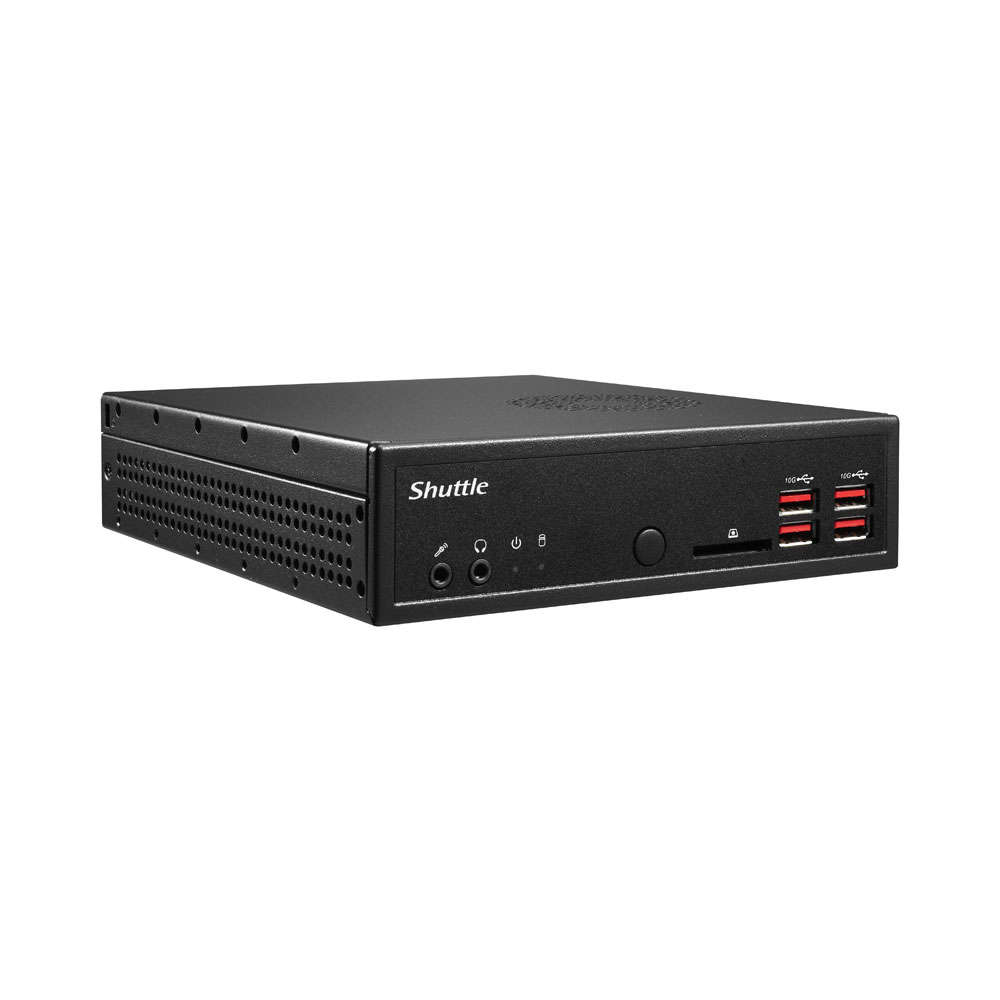

Shuttle DHU32U i5 XPC Slim Industrial Quad Display PC 2x LAN

This space-saving Slim PC integrates an energy-efficient Gen 11 Intel ULV processor "Tiger Lake-U" and supports no less than four Ultra HD displays at 60 Hz frame rate via HDMI2.0b. It's slim metal chassis with a VESA mount included, versatile connectivity and reliable operation in ambient temperatures of up to 50 °C degrees, make it ideal for vertical applications such as Digital Signage, Kiosk, Surveillance, Control Room, Gambling Machines, Healthcare and Industry.

FEATURES

Slim industrial mini PC with metal chassis and VESA mount support, ideal for digital signage, kiosks, surveillance, control rooms, and healthcare environments
Supports quad Ultra HD displays via 4× HDMI 2.0b outputs at 60 Hz
Powered by 11th Gen Intel Tiger Lake-U processors (e.g., Intel Core i5-1135G7)
Dual Gigabit LAN ports for robust networking
Up to 64 GB DDR4 memory support via 2× SO-DIMM slots
Flexible storage with a 2.5 SATA bay and M.2-2280 slot (plus optional wireless module slot)
Multiple USB ports including USB3.2 Gen1 and Gen2 for peripherals
Integrated Intel Iris Xe or UHD Graphics depending on CPU selection
I/O includes RS-232 and RS-232/422/485 serial ports and audio line-out/mic-in
Supports operation in ambient temperatures up to ~50 °C for demanding environments
External 19 V DC / 90 W power adapter included

SPECIFICATIONS

Dimensions: 190 x 165 x 43mm
Weight: 2.1kg
CPU: Supports Intel i7, i5, i3 and Pentium
RAM: Up to 2x DDR4. Max. 64GB
Storage: 1x 2.5" hard drive bay, 1x M.2-2280 M-Key
GPU: i5 and i7 processor supports Intel Xe graphics; Pentium and i3 processor supports Intel UHD graphics
Video Ports: Quad display via 4x HDMI2.0b simultaneously
LAN/Wireless: Dual gigabit LAN
USB Ports: 4x USB3.2 Gen 1 and 4x USB3.2 Gen 2
IO: 1x RS232 DB9 port and 1x RS232 / 422 / 485 DB9 port
Audio: Line-out and mic-in
Kensington: Yes
Power: 19V 4.74A, 90W AC adapter, extended power connector
