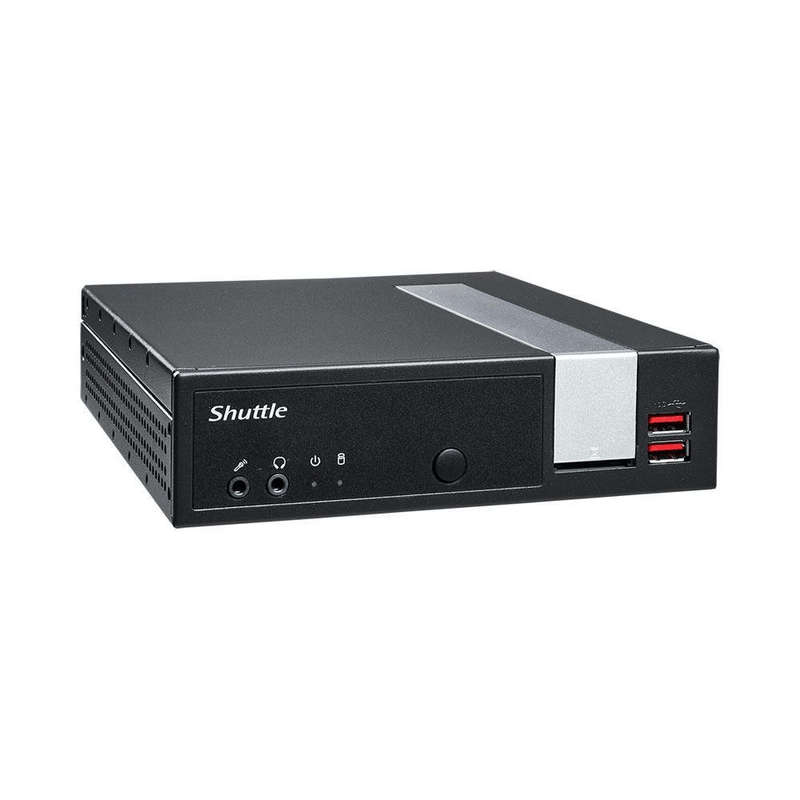

Shuttle DL20N Barebone SFF PC - Intel Celeron N4505 Fanless PC-NUC-DL20N
Slim Energy-Saving, Fanless, Barebone PC - Powerful, Energy-Saving and Robust Connectivity
The Shuttle XPC slim DL20N is a low-power consumption and affordable business and productivity computer. Within the fanless chassis with a body thickness of 43mm, the DL20N integrates high-performance CPU and chipset, peripheral expandability, and network connectivity, making it suitable to use in education, office, thin-client, IoT edge computing, digital signage, etc. Featuring the 11th Gen Intel Pentium Silver and Celeron processors with Intel UHD Graphics and supporting high-speed 2933 MHz DDR4 memory, this model can promise reliable performance for multitasking and 4K resolution. In addition, the DL20N is equipped with rich I/O interfaces such as USB3.2 Gen2, USB 2.0 and COM ports, supporting triple display via the DisplayPort, HDMI, and VGA ports. Furthermore, the ability to support multiple networks is essential for the construction of IoT applications; the DL20N supports one Gigabit LAN, includes a M.2 module for IEEE 802.11ac Wi-Fi expansion and provides 4G/LTE module options to meet diverse application needs.
Features
- Fanless Design
- 24/7 Permanent Operation
- Front SD Card Reader
Technical Specification
Processor family: Intel Celeron
Processor model: N4505
Processor frequency: 2.00 / 2.90 GHz (4 MB Cache, 2 Cores)
Internal memory: Optional, Up to 2x DDR4. Max. 16GB
Storage: Optional, 1x 2.5" Hard Drive Bay, 1x M.2-2280 M-Key and 1x M.2-2230 E-Key
GPU: Intel UHD Graphics

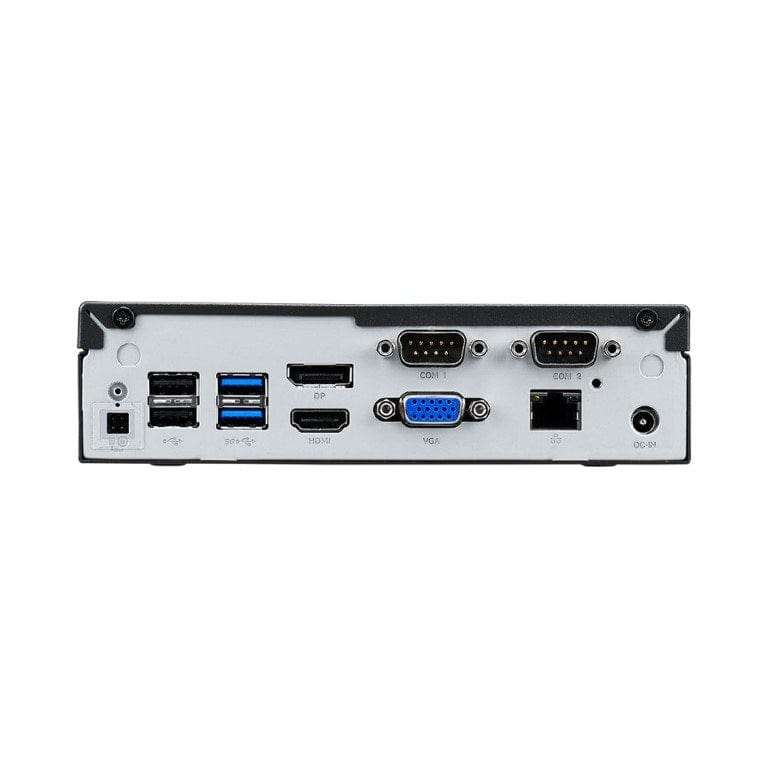

Video Ports: Triple Display via 1x HDMI, 1x DisplayPort and 1x VGA Simultaneously
LAN/Wireless: Gigabit LAN. Optional WLN-M
USB Ports: 4x USB3.2 and 2x USB2.0
IO ports: 1x RS232 DB9 Port, 1x RS232 / 422 / 485 DB9 Port
Audio: Line-Out and Mic-In
Power: 19V 2.1A, 40W AC Adapter, Extended Power Connector
Dimensions 190 x 165 x 43mm
Weight: 1.95kg
